Wallbox eMH2 – Charging procedure |
23
English
To disconnect the product completely from the electricity grid, the power supply must be interrupted
using the upstream safety switches and fault current protection devices in the domestic power
distribution.
Ensure that the charging cable is not subjected to tensile stress at any time.
Make sure that the product is always closed and locked when in use.
Ensure that the charging cable is not driven over, kinked or pinched. Always treat charging plugs,
connectors and sockets with special care.
You must under no circumstances make any changes to the housing or the internal wiring of the
device: Any disregard of this instruction fundamentally breaches the guarantee provisions and voids
the warranty with immediate effect.
Only have the product repaired by a qualified specialist electrical contractor authorised by ABL.
Charging procedure
Proceed as follows to charge an electric vehicle using the Wallbox eMH2:
1 Park your electric vehicle so that its charging inlet can be easily reached with the charging cable's
charging connector.
2 Check the LED indicators of the wallbox:
y When the wallbox is ready for operation,
the green LED pulsates.

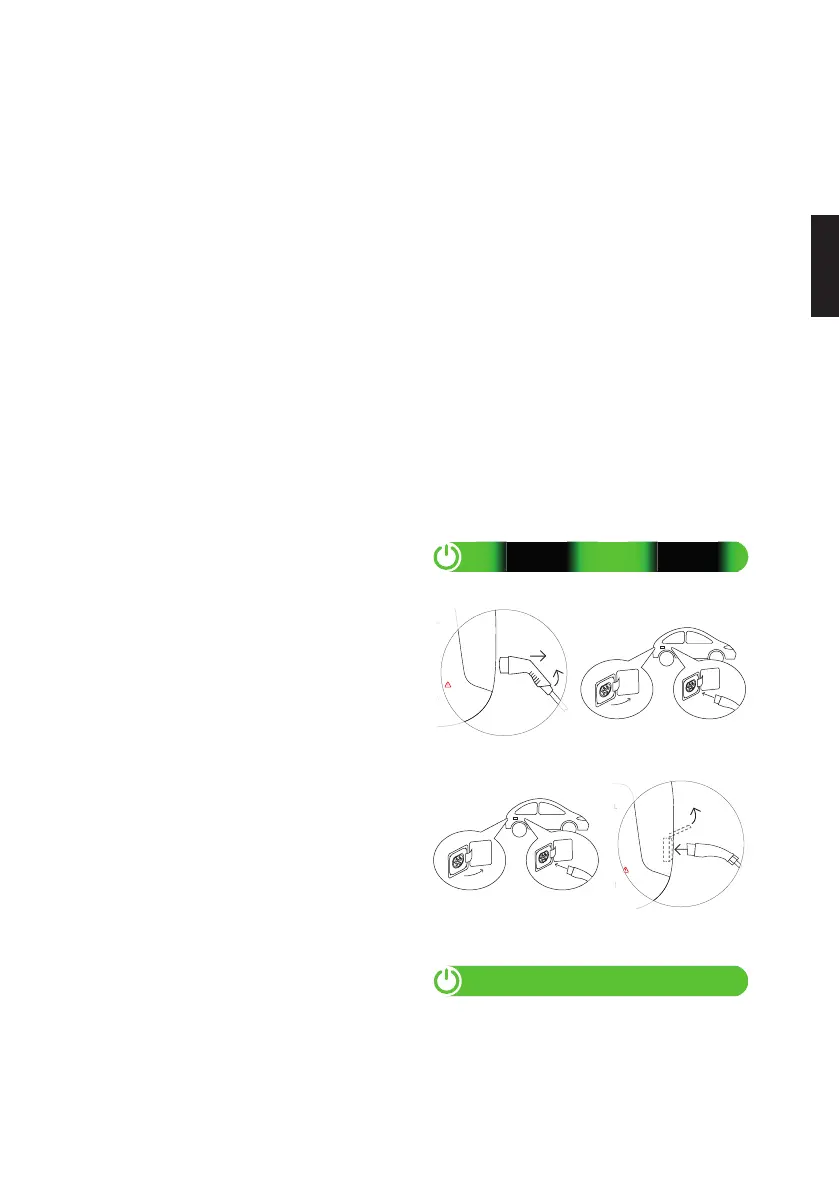

3 Prepare the charging cable of the wallbox and
the vehicle's charging inlet.
y Wallbox with charging cable
Slightly lift up the charging connector and
pull it downwards from its storage com-
partment. Open the charging inlet at the
vehicle and plug in the charging connector.
y Wallbox with charging socket
Open the charging inlet at the vehicle and
plug in the charging connector. Then open
the charging socket lid on the wallbox and
plug in the charging connector.
4 Check the LED indicators of the wallbox:
y If the wallbox is waiting for authorisation
of the charging procedure by the user, the
green LED is ON.
To Next Page
