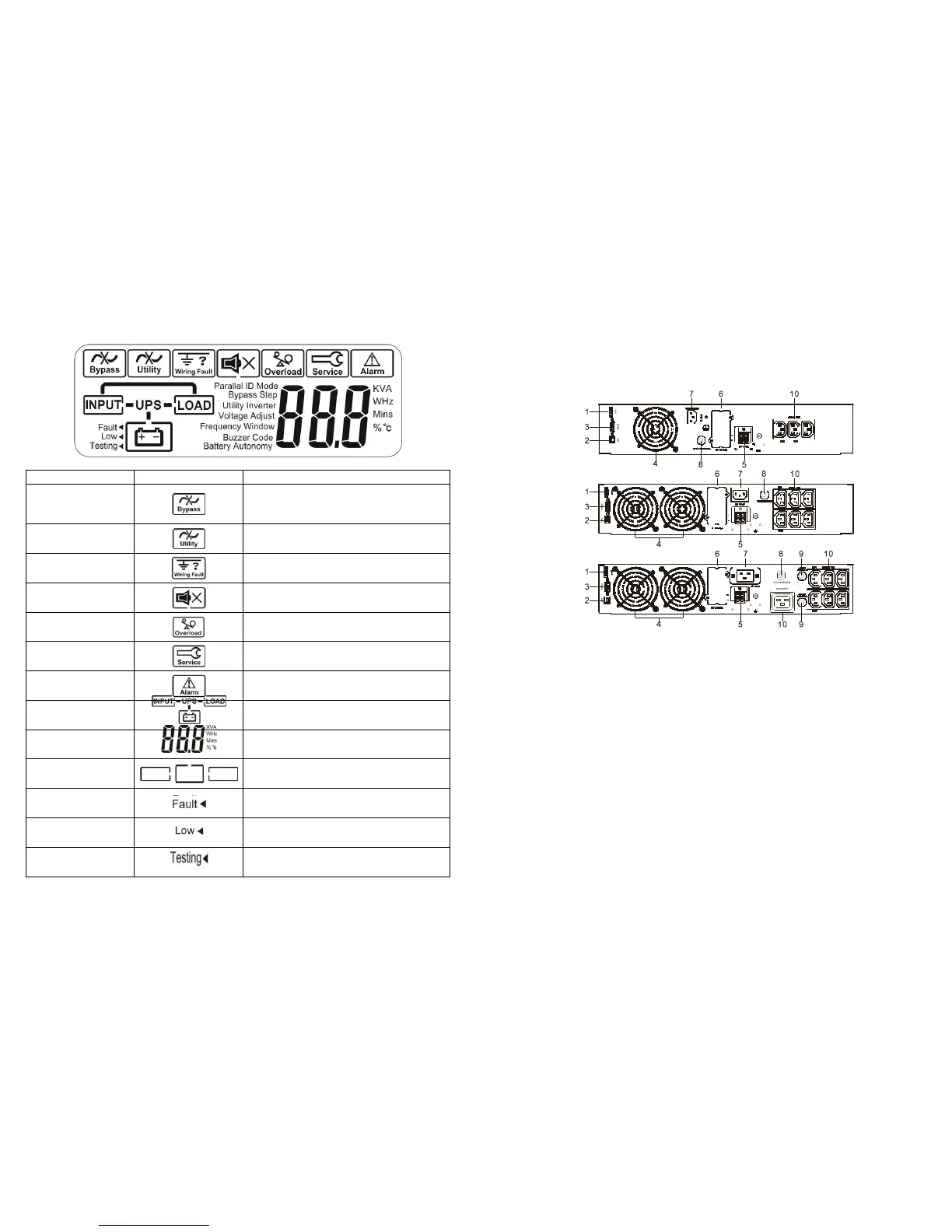

Ablerex ARES RT-3K - UPS Functional Descriptions; 3.1 Front Panel Display; 3.1.1 LED Panel

10
11
Item Sign Description
1
Bypass Input Abnormal, UPS fails to
transfer to bypass, Bypass Abnormal
at ECO mode
2
Utility Input Abnormal
3
Site Wiring Fault
4
Buzzer Silent
5
UPS Overloading
6
UPS Working in specified mode*
7
UPS Fault or Abnormal Warning
8
UPS Flow Chart
9
3-Digit Measurement Display
10
Indicates the item to be measured
11
Battery Abnormal
12
Battery Low
13
Testing
3.1.3 LCD displayer description
3.2 Rear Panel
ARES RT 230V
1K
2K
3K
1. Emergency Power Off (EPO) dry contact signal inputs
2. USB port*
3. RS-232 port
4. Fan
5. External battery connector*
6. Slot for optional communication cards*
7. AC power connection socket
8. Utility input circuit breaker
9. Output circuit breaker for two outlets
10. AC outlets(Program Relay*)
* Remark: Optional function
