Abloy DA430 User Manual

11

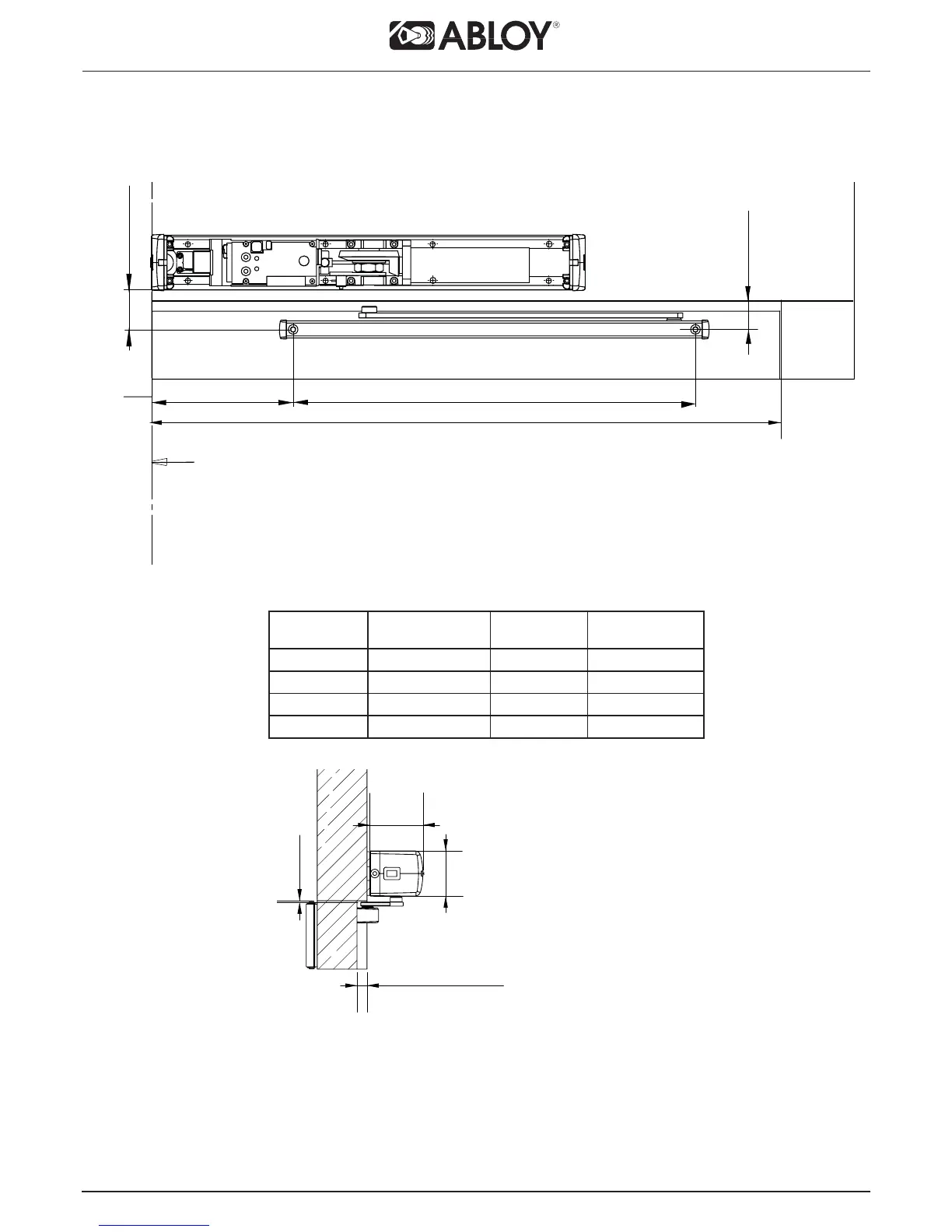

6.3 Assembly of the operator and sliding arm DC194 to the closing
side
-
+
485
L
M
Min. 22**
Min. 29* Max. 40*
*The measure from bottom of the operator
** The measure from bottom of the frame
Frame depth
H/mm
DA430 distance
from hinge line
Arm distance
L/mm
Minumum door
width M/mm
0 - 20 0 170 675
20 - 40 - 40 130 635
40 - 80 - 40 125 630
80 - 100 - 40 115 620
80
Frame depth H
68
Min. 2
