9

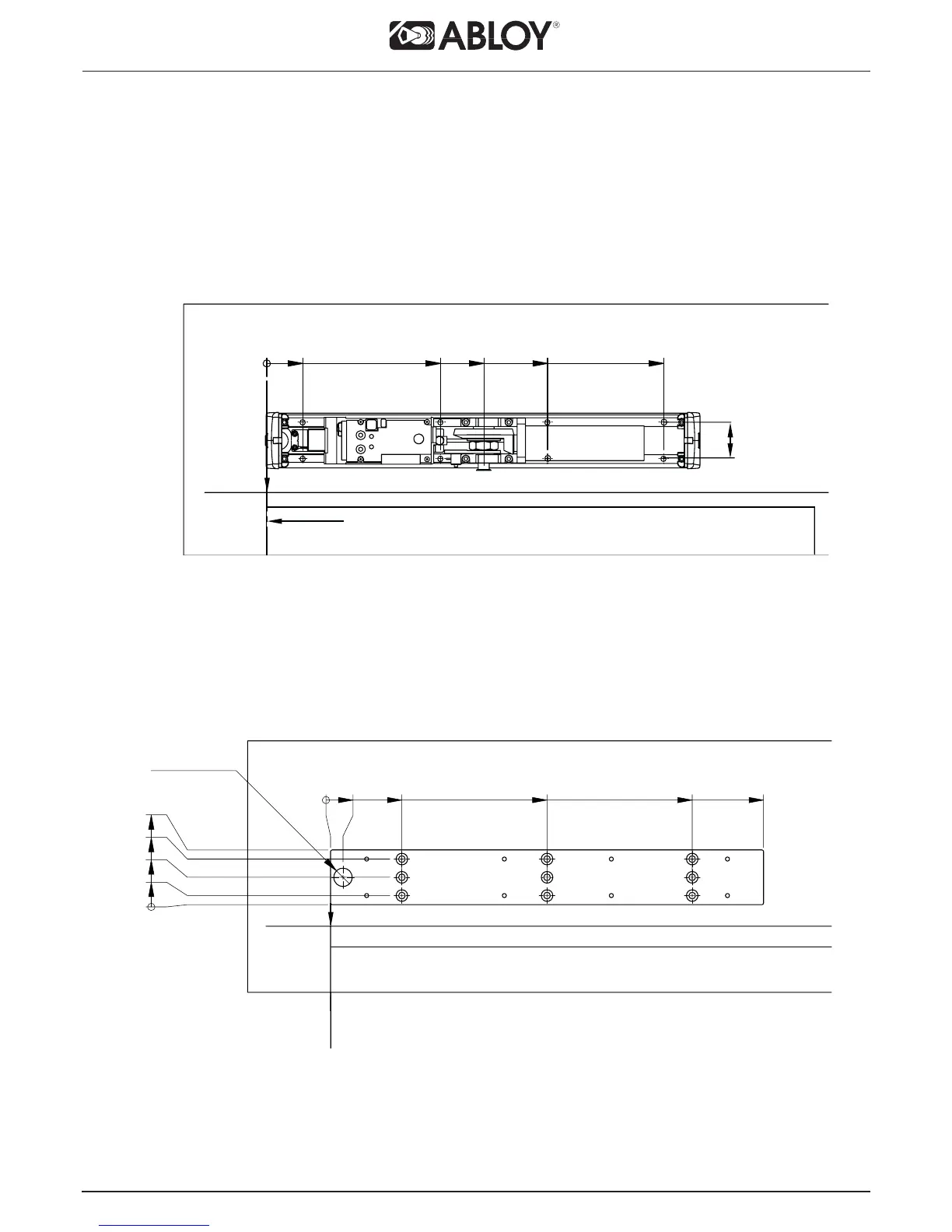

6.1 Installing the operator and the mounting plate DA105
The operator is installed on the transom, with the mode switch located towards
the hinge side of the door. Securely fi x the operator or the mounting plate to the
transom. Minimum requirement for wall profi le is 5 mm (steel).
Installing the operator
Installing the mounting plate DA105
The mounting plate DA105 with the door operator ensures the installation base is
level. Use the mounting plate if needed.
0
261 86
15 0
66
55
33
11
522
436
Ø 22
44
210 261,5 399
479 0
44
Hinge line
10
9
