Abloy DA430 User Manual
5
of 1
of 1 rating
28 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
21
1000 ohm
+24V out
GND
Impulse
input
Safety
sensor
Locking
circuit
GND
1
2
3
4
5
6
7
8
9
1000 ohm
+24V out
GND
Impulse
input
Safety
sensor
Locking
circuit
GND
1
2
3
4
5
6
7
8
9

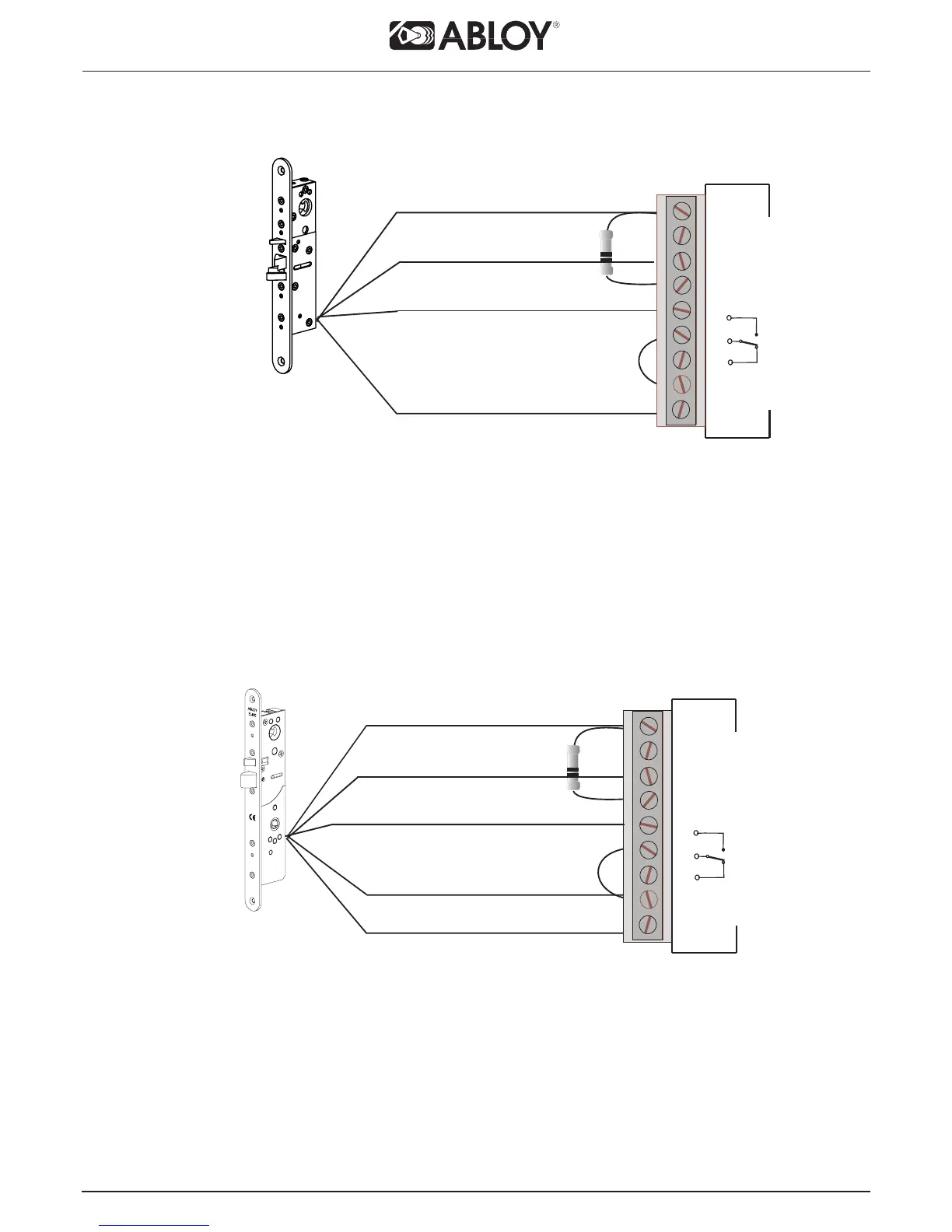

11.6
Electric locks EL402, EL404, EL502
11.7
Motor locks EL490, EL590
NOTE!
Not to be installed in doors with seal force.
Bolt and trigger bolt have to be lubricated
when lock is installed and when necessary.
black
blue
green
red
grey
blue
green
white
red
20
22
Table of Contents
Default Chapter
3
Table of Contents
3
1 Revision
4
2 Content of Delivery
5
3 General Information
6
4 Operation
7
5 Mode Switch
7
6 Installation
8
Installing the Operator and the Mounting Plate DA105
9
Assembly of the Operator and Standard Arm DC190 to the Closing Side
10
Assembly of the Operator and Sliding Arm DC194 to the Closing Side
11
Assembly of the Operator and Sliding Arm DC194 to the Opening Side
12
7 Internal Connections
13
8 Commissioning
14
9 Safe Door
16
10 External Connections
17
11 Connection Examples
18
Safety Sensors DA001 and DA002
18
DA061 and DA062 Microwave Motion Sensor
19
DA063 Microwave Motion Sensor
19
DA033 Elbow Switch
20
DA039 and DA049 Rotary Switch
20
Electric Locks EL402, EL404, EL502
21
Motor Locks EL490, EL590
21
Motor Locks EL420, EL520
22
Electric Lock EL410
22
12 Self Diagnostics
23
13 Maintenance
24
14 Spare Parts
25
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Abloy DA430 and is the answer not in the manual?
Ask a question
Abloy DA430 Specifications
General
Brand
Abloy
Model
DA430
Category
Door Opening System
Language
English
