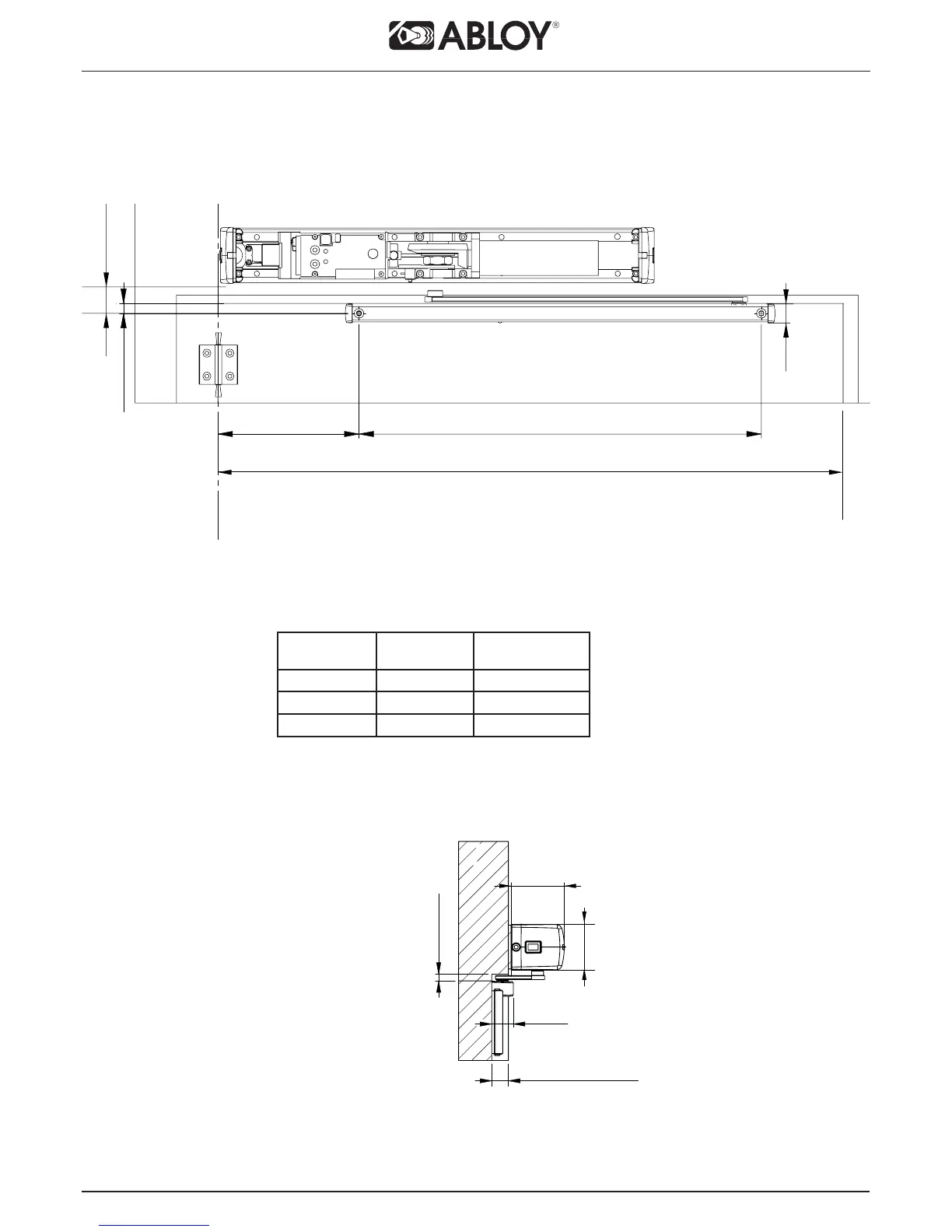

6.4 Assembly of the operator and sliding arm DC194
to the opening side
Min. 29* Max.40*
Min. 12**
23
M
485L
Hinge line
*The measure from bottom of the operator
** The measure from the top of the door
Frame depth
H/mm
Arm distance
L/mm
Minumum door
width M/mm
0 - 40 184 690
40 - 100 210 715
100 - 150 236 740
32,5
Frame depth H
68
80
Min. 10
