Abloy DA460 User Manual

14
- Electrical connections should be made by a qualifi ed electrician.
- The power plug must have an easy access.
- If permanent connection is made unit must be equipped with an external
switch providing all pole disconnection.
- Keep the mains disconnected during installation.

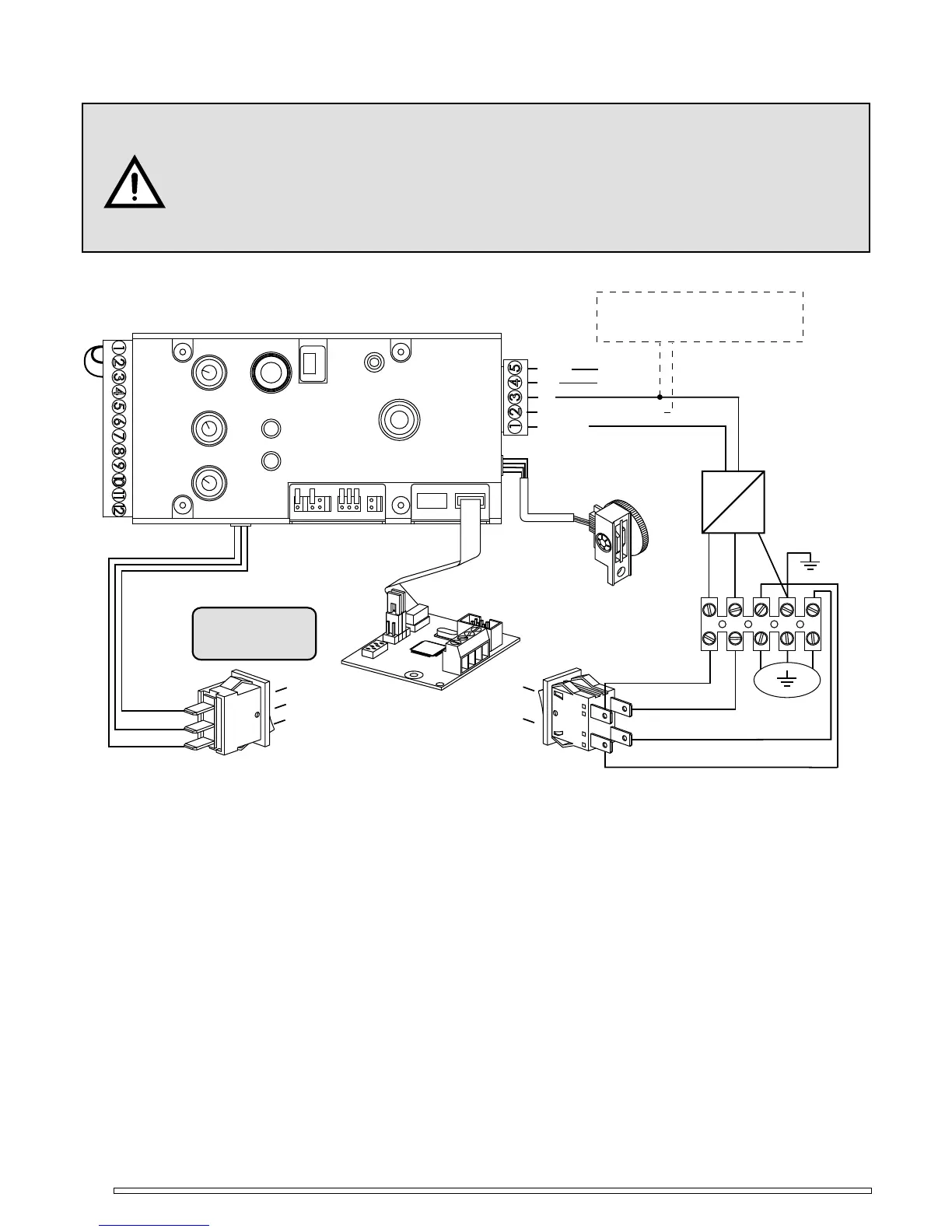

INTERNAL CONNECTIONS
DC supply back-up
When not mains operated, or for back-up supply, the external 24 VDC (min. 3A) supply can be connected to X1
connectors 2 and 3. Connect + from DC supply back-up to X1 connector 2 and GND to X1 connector 3. No battery
charging or maintenance is provided by DA460.
white
brown
white
brown
I
0
L
N
To motor
red
black
Asentoanturi
Main switch
AUTO: red & black
MAN: NC
OPEN: blue & black
X4
X2
X6
0V
DC
AC
PE
black
X1
+ 24V backup
+ 24V in
X5
white
brown
white
External power supply unit
+24VDC, min 3A
red
black
blue
AUTO
MAN
OPEN
Safetysensor-unit
Mode switch
CU
