16
COMMISSIONING

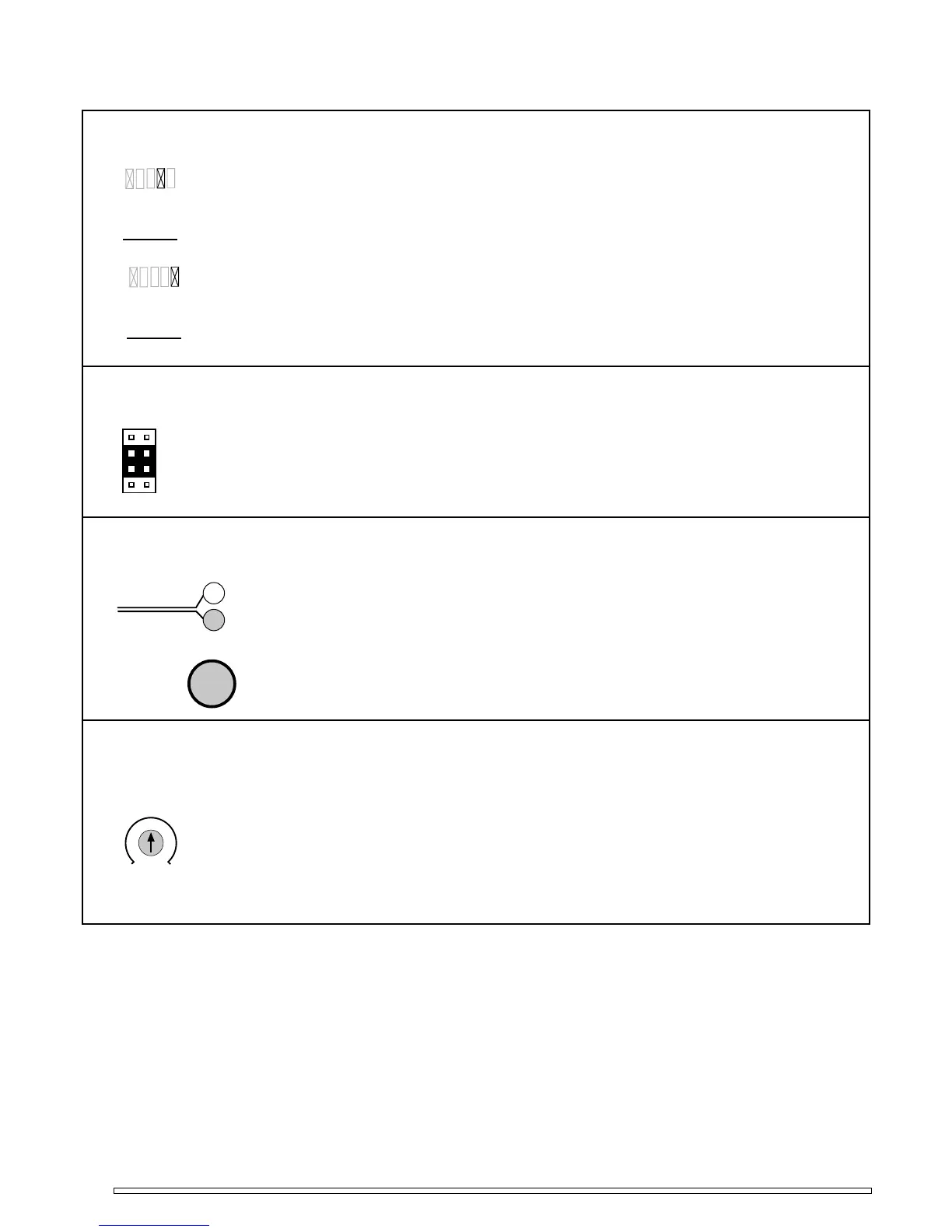

6 Check the OPTION
If the jumper is connected then operator requires N.C. output from the fi re detector.
If the jumper is disconnected then operator requires N.O. output from the fi re detector.
When jumper is connected the door can opened and closed manually. When opening impulse
comes, the door is opened to fully open position and closed after adjusted hold open time.
Free swing is in operation when mode switch is in AUTO position. Note! It is not possble to
use Push&Go and free swing options at the same time.
7 Safety sensor monitoring
Self diagnostics is in use when J2 (OS=opening side) and J3 (CS=closing side) are connected.
8 Teach door open and closed position
(is functional in program selector positions MAN and AUTO)
• Push TEACH-button briefl y to enter learning mode.
• Teach the door closed position
Yellow led blinks: close the door and push TEACH-button
• Teach the door open position
Green led blinks: Open the door to the desired angle and push TEACH-button.
• Yellow ”TEACH CLOSED” led blinks: Close the door manually
• The green light remains lit. Door open and closed position is taught.
9 Operators force, opening speed and hold open time
The operator’s force requires adjustment to suit door weight. Use lowest possible value to
ensure the smooth function of safety feature.
Start the adjustment by putting the force potentiometer to middle position (= 50%) and fi ne-
tune it after opening speed adjustment.
Note! Important: as less force as possible
OPTION
OPTION
not in use
not in use
not in use
fire n.c
free swing
not in use
not in use
not in use
fire n.c
free swing
TEACH OPEN
POWER ON
TEACH CLOSED
TEACH
FORCE
Force
J1
J2
J3
J4
