Absen A27 V3 Series User Manual

A27 V3 Series Product User Manual
22
Cabinet-connected
power cable
5.3 Signal cable connection
The signal cable adopts RJ45 CAT5 network cable, and the network cable
interface of the panel can be used for input and output. The method of
connecting the "S" type up and down is to calculate the resolution based on
each panel pixel and connect the signal cable according to the load range of
the sending card. Pay attention to the load on each network port.
The pixel range cannot exceed 655360 points (as shown in the following figure)

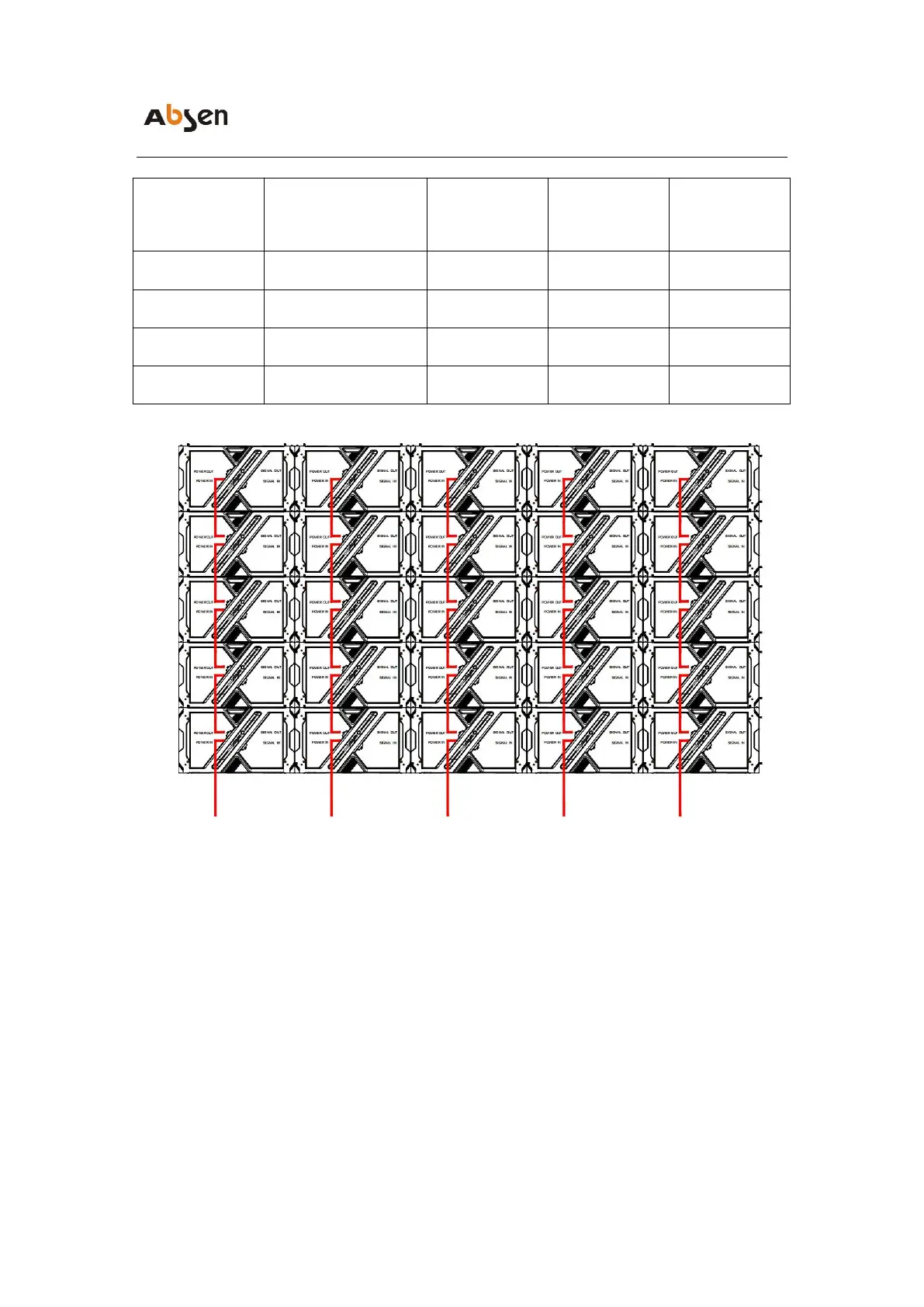

Taking the 5x5 A2715 V3 panel as an example, the connection method of the
power cable is introduced as follows:
Model
Panel size(mm)
Power
consumption
(maximum)
Power cable on
load (220V)
Power cable on
load (110V)
A2712 V3
610x343x44.5
561 W/㎡
12
6
A2715 V3
610x343x44.5
540 W/㎡
12
6
A2719 V3
610x343x44.5
471 W/㎡
12
6
A2725 V3
610x343x44.5
300 W/㎡
12
6
main power cable
main power cable
main power cable
