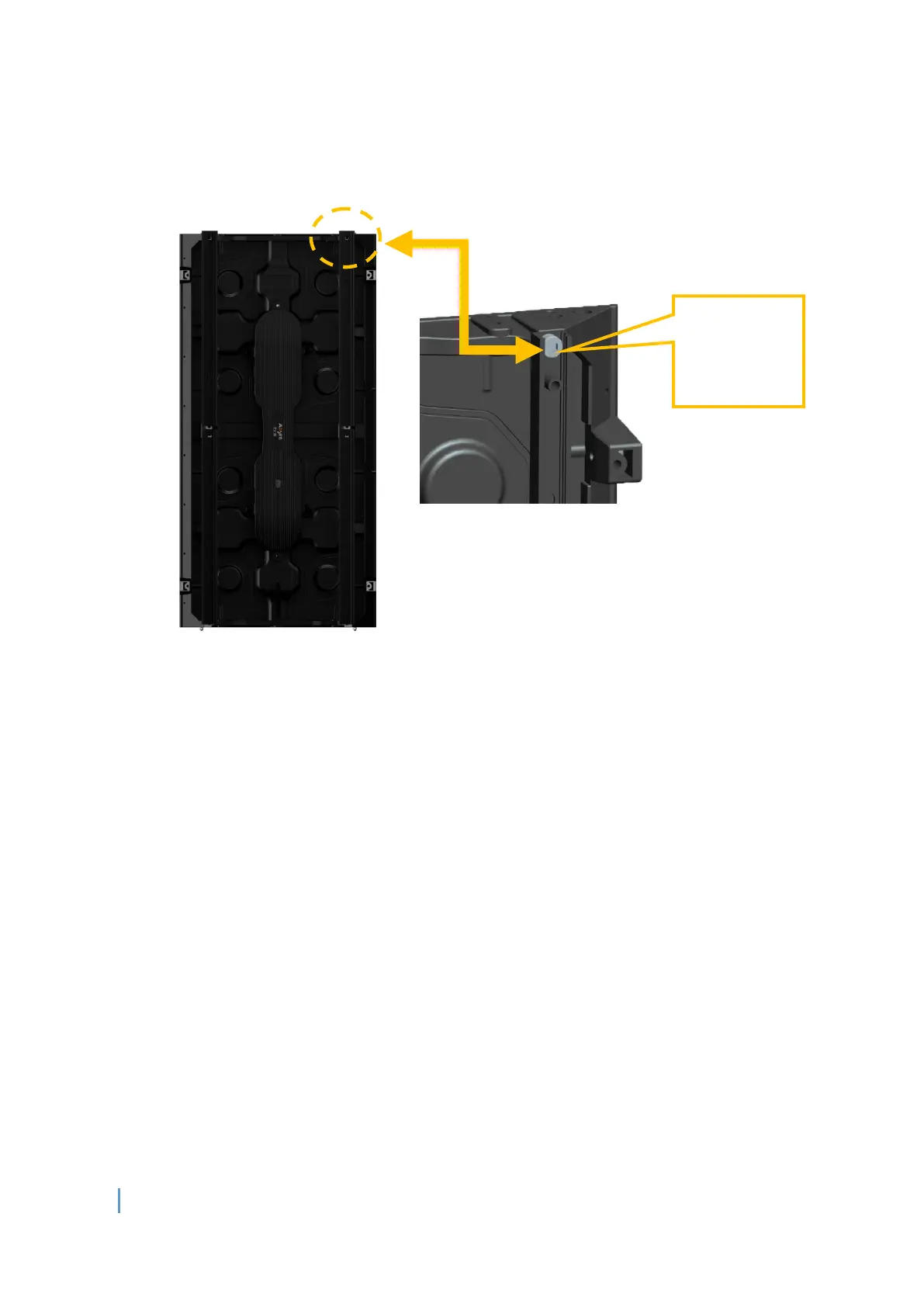

Back strap installation
Product Wiring
Power Supply Wiring
• Preparation before wiring
Before connecting to power supply and switching on control signal to the entire
screen, please carefully check the power supply and signal cable connections. Please
carefully check the "L" line, "N" line and "PE" of each cabinet’s AC inlet, and ensure
there is no short circuit between the three lines (Use multimeter to measure).
• Power Supply Cabling Instructions
Please calculate and select the power distribution box or socket type based on
maximum power consumption. Please consult your power distribution box
manufacturer to specifically match. Cabinet’s input voltage is 100-240V/AC, and
3X1.5mm²(3X16AWG)power cable is used to connect from distribution box cabinets.
