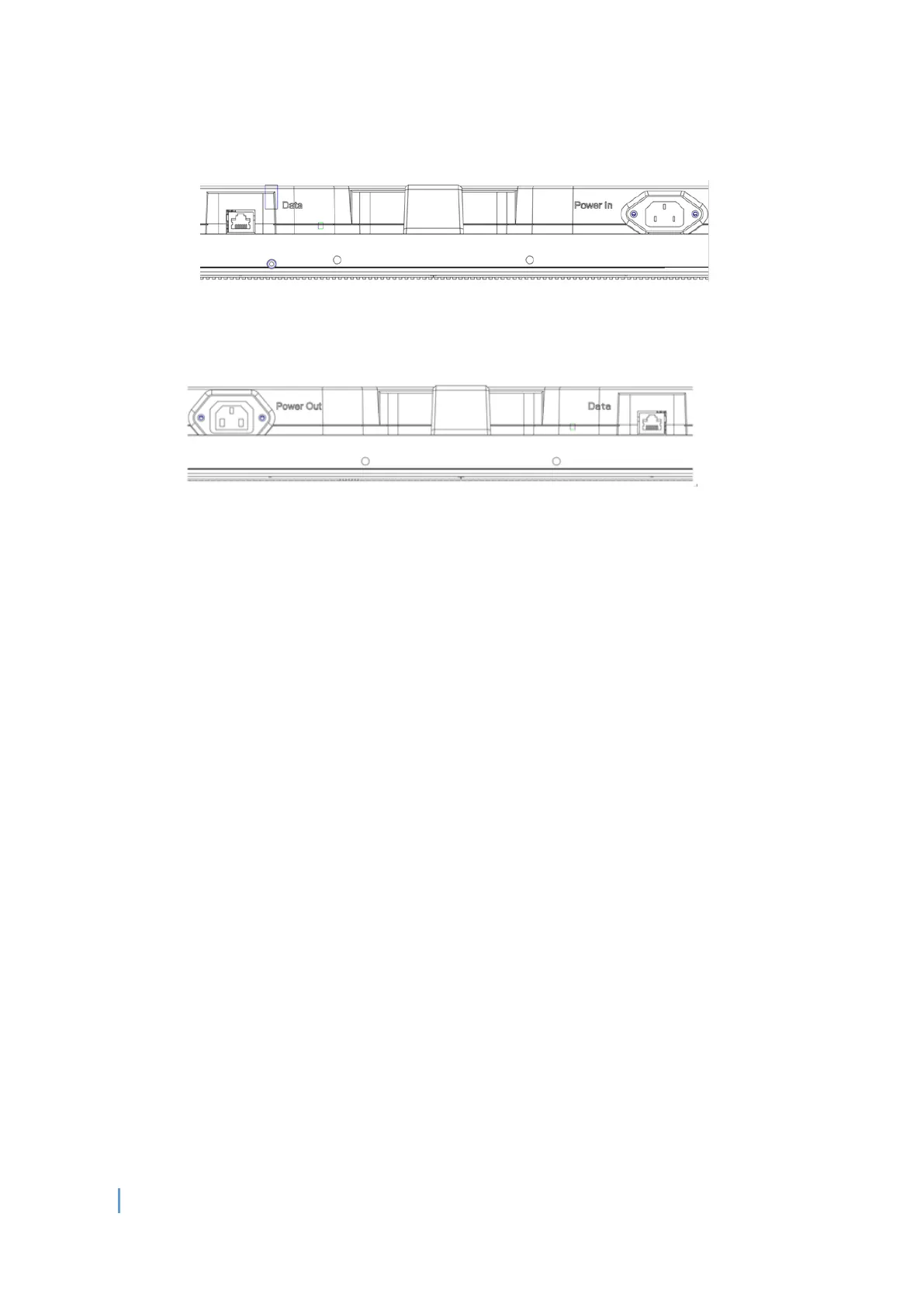

• Cabinet terminal connection diagram
Power Cable Wiring
The K Plus series use a 3X1.5mm² (3X16AWG) power cable to connect from the
distribution box or socket to the bottom of the cabinet.
At an input voltage of 220V, one power cable can load 8 panels of K2.9D Plus; at an
input voltage of 110V, one power cable can load 4 panels of K2.9D Plus.
At an input voltage of 220V, one power cable can load 11 panels of K2.9 Plus; at an
input voltage of 110V, one power cable can load 5 panels of K2.9 Plus.
At an input voltage of 220V, one power cable can load 12 panels of K3 Plus; at an
input voltage of 110V, one power cable can load 6 panels of K3 Plus.
At an input voltage of 220V, one power cable can load 8 panels of K3D Plus; at an
input voltage of 110V, one power cable can load 4 panels of K3D Plus.
Signal interfaces,
no difference for input and output
