NX Series Product User Manual

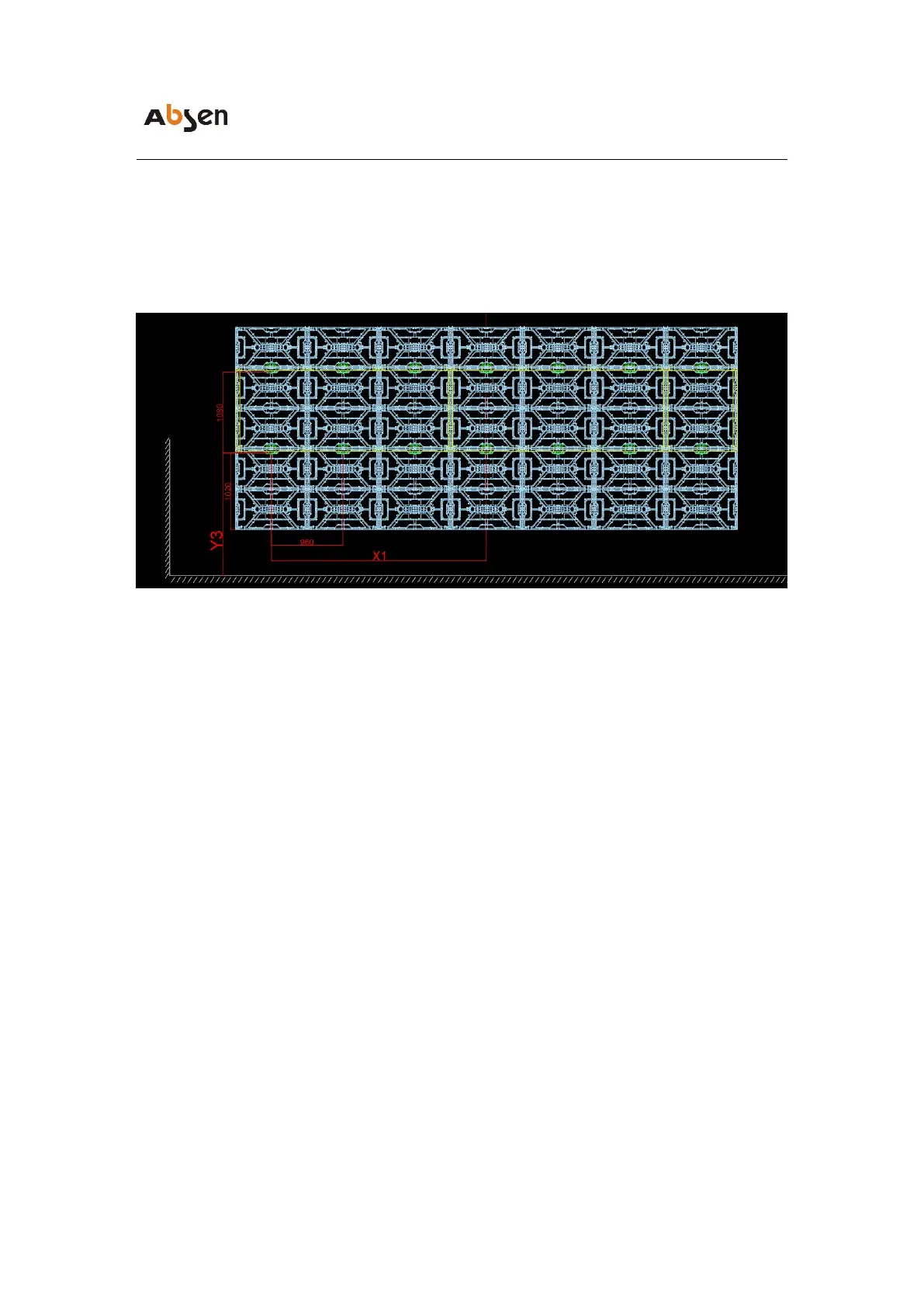

Center line of screen (composed of big cabinet, 960*540*43.5mm)
lower left Wall connector (the lowest hole);
When the screen is a cabinet with five or more rows and the number of
rows is odd:
When the cabinet is greater than or equal to five rows and the number of rows
is an odd number, use one double vertical bar every three cabinets, and use
one if the mantissa is less than three;
X1 calculation method: divide the screen length of the large cabinet by 2, then
subtract 480 (unit: mm);
Y3 calculation method: the distance from the screen to the ground plus 1020
(unit: mm);
Note: The calculation units are all millimeters (mm), and the above is the
calculation method for big cabinets (the calculation methods for big cabinets
and small cabinets are different):
Y is the distance from the first wall connector on the lower left (the lowest hole)
to the ground;
X is the distance from the center line of the screen of the big cabinet to the
lower left Wall connector (the lowest hole);
Calculation method of positioning of small cabinet wall connectors;
