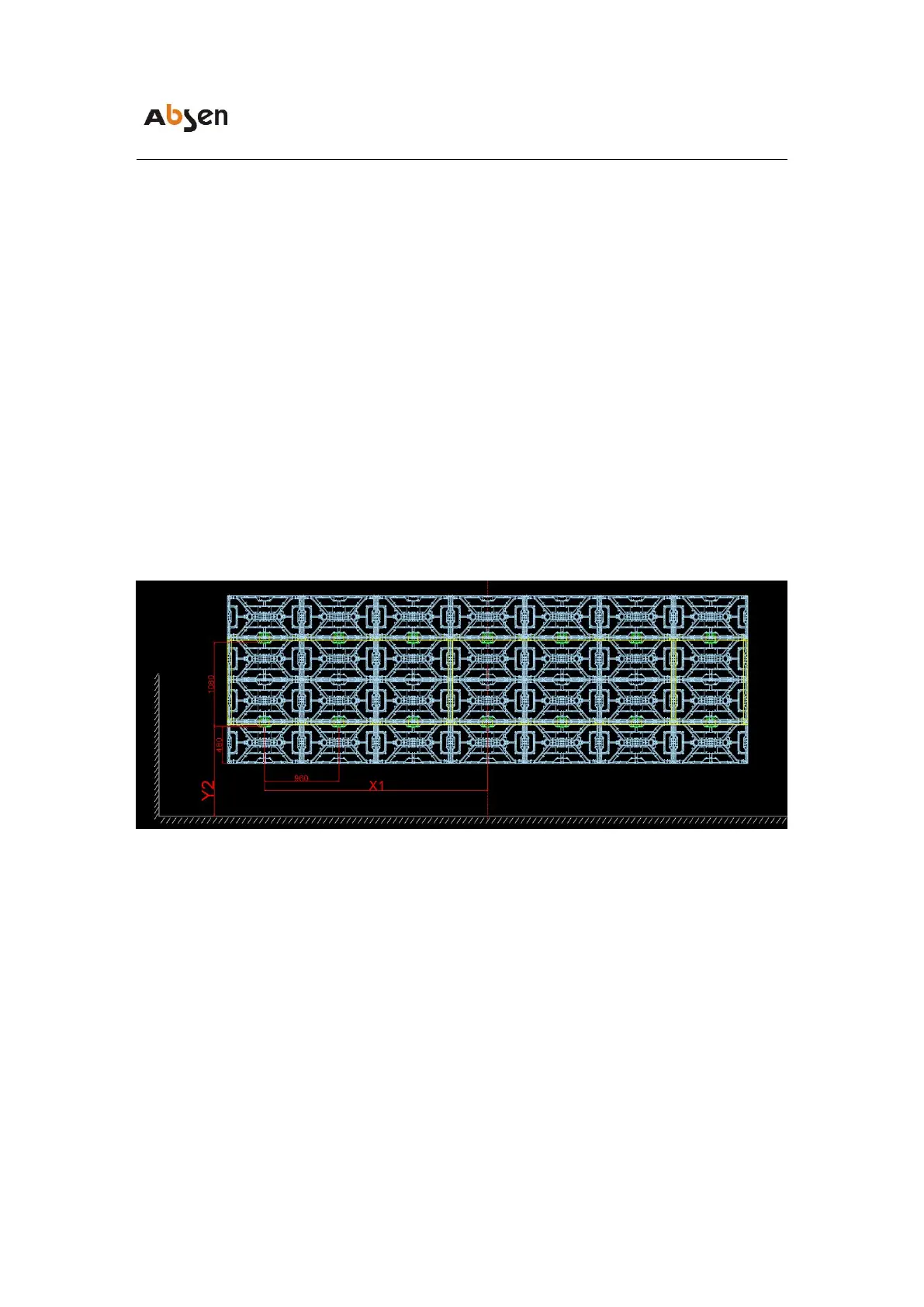

Center line of screen (composed of big cabinet, 960*540*43.5mm)

X1 calculation method: divide the screen length of the big cabinet by 2, then

subtract 480 (unit: mm);

Y2 calculation method: the distance from the screen to the ground plus 480

(unit: mm);

Note: The calculation units are all millimeters (mm), and the above is the

calculation method for big cabinets (the calculation methods for big cabinets

and small cabinets are different):

Y is the distance from the first wall connector on the lower left (the lowest hole)

to the ground;

X is the distance from the center line of the screen of the big cabinet to the

lower left Wall connector (the lowest hole);

 When the screen is a cabinet with four or more rows and the number of

rows is an even number:

When the cabinet is greater than or equal to four rows and the number of rows

is an even number, one double vertical bar is used for every three cabinets, and

the mantissa is less than three;
