NX Series Product User Manual
Center line of screen (composed of big cabinet, 960*540*43.5mm)
Center line of screen (composed of big cabinet, 960*540*43.5mm)

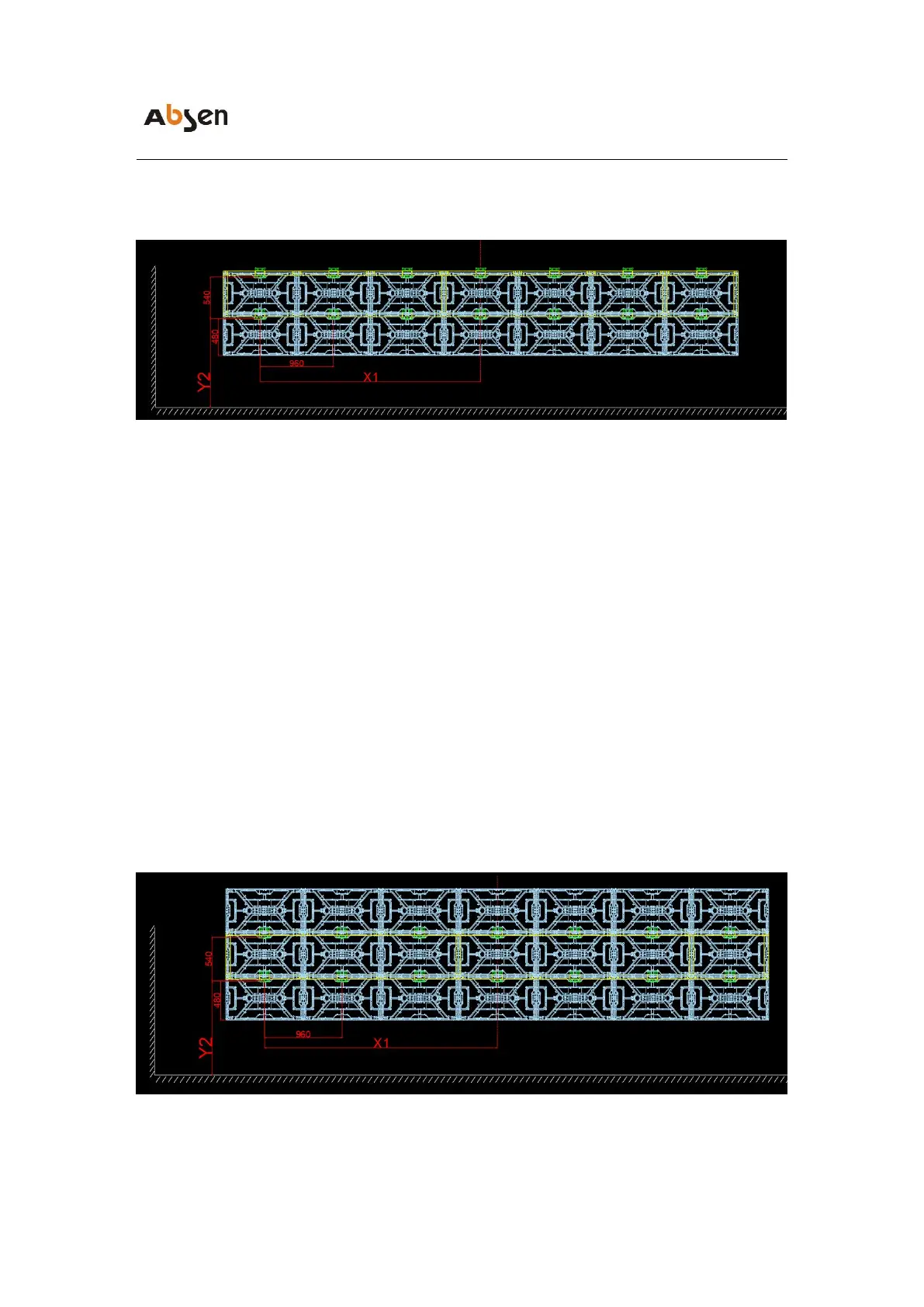

When the screen is a two-row cabinet:
When there are only two rows of cabinets, use one single vertical bar every
three cabinets, and use one if the mantissa is less than three;
X1 calculation method: divide the screen length of the big cabinet by 2, then
subtract 480 (unit: mm);
Y2 calculation method: the distance from the screen to the ground plus 480
(unit: mm);
Note: The calculation units are all millimeters (mm), and the above is the
calculation method for big cabinets (the calculation methods for big cabinets
and small cabinets are different):
Y is the distance from the first wall connector on the lower left (the lowest hole)
to the ground;
X is the distance from the center line of the screen of the big cabinet to the
lower left Wall connector (the lowest hole);
When the screen is a three-line cabinet:
When there are only three rows of cabinets, use one single vertical bar every
three cabinets, and also use if the mantissa is less than three;
