37

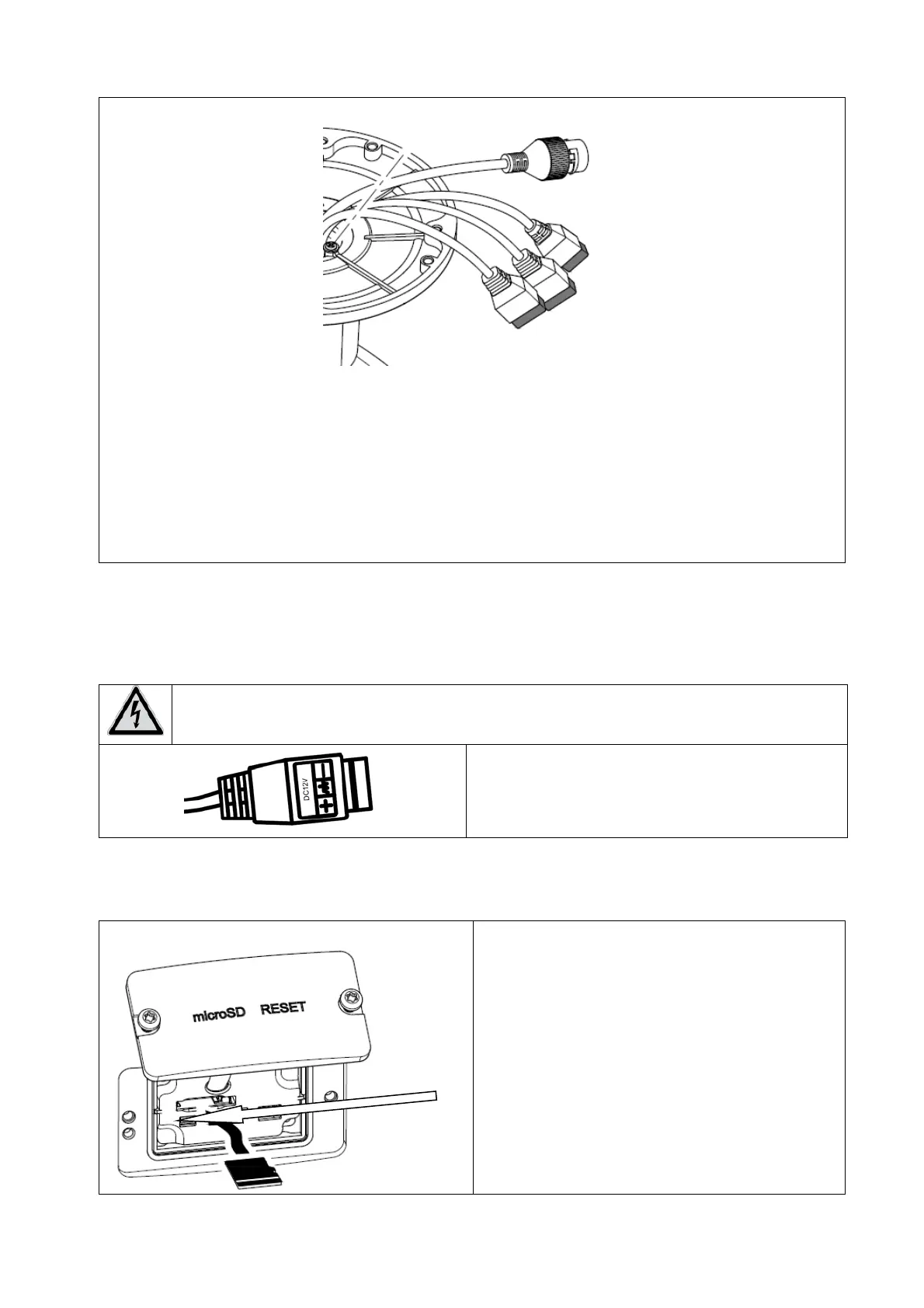

All connectors are printed with recognisable symbols. The exact designations are described in
the following sections.
7: RJ45 connector, PoE 802.3at class 4
8: Power supply connector, 12 VDC (+/- 20%)
9: 2 x Alarm input / 2 x Alarm output
10: RS-485 interface
3.2 Power supply
IMPORTANT!
Before starting installation, ensure that the power supply voltage and the rated voltage
of the camera are identical.
When connecting the 12 VDC power supply,
pay attention to the polarity (+ / -). The central
port is not used.
3.3 Restoring the settings (reset)
In order to operate the reset button, you must
first remove the cover on the underside of the
camera.
1. Turn off the camera.
2. Press and hold the “Reset” button on the
camera.
3. Now connect the power supply to the
camera (using 12 VDC or Power over
Ethernet) and hold down the “Reset” button
for a further 30 seconds.
