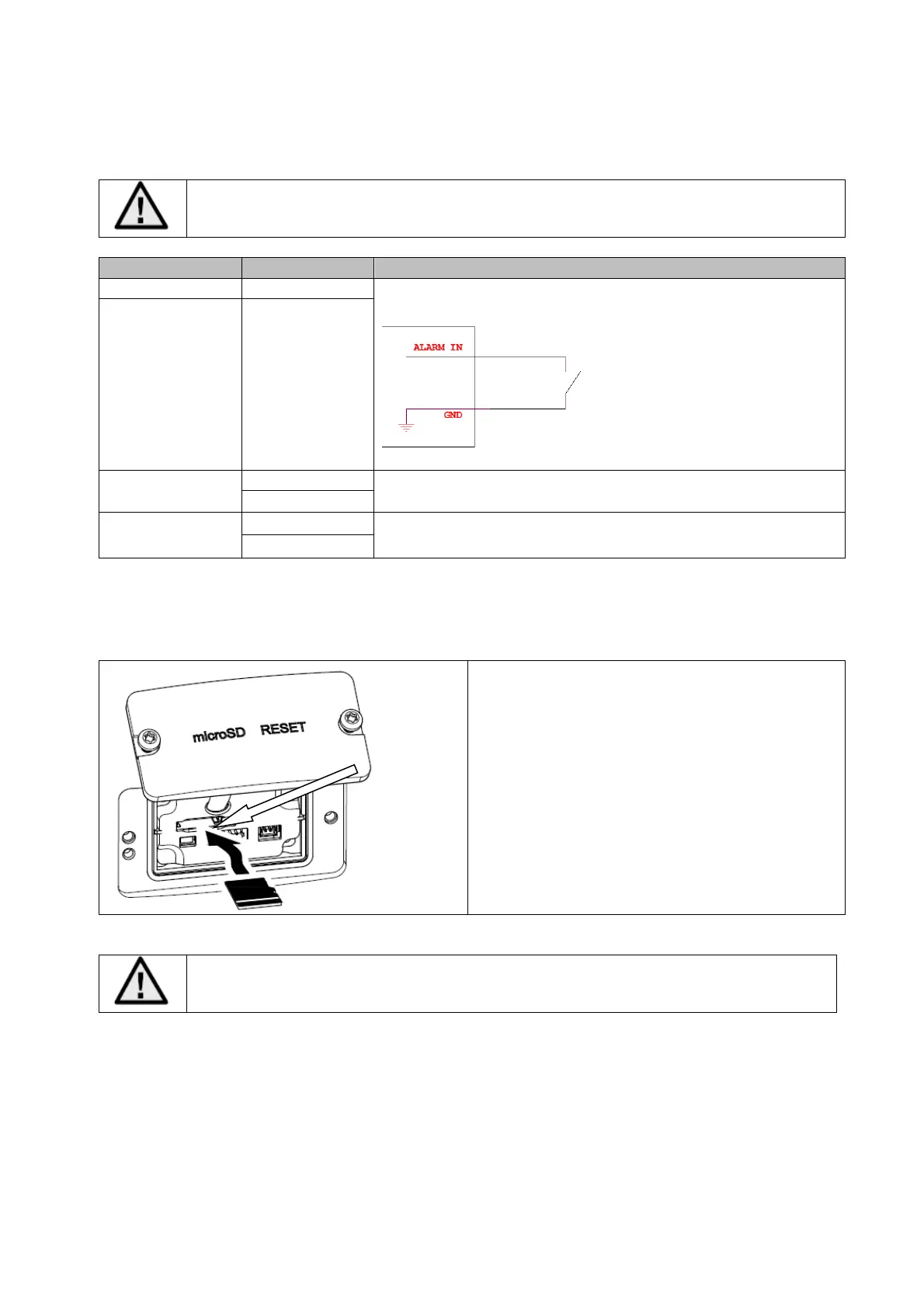

3.4 Switching input/switching output
The maximum load values must be observed, otherwise the camera may be
damaged irreparably.
Name Connection instructions
Switching input “IN1” / "IN2" Jumper between “IN1” and “G” resp. "IN2" and "G"
“G”
Switching output
1
“1
”
Max. 24 VDC @ 1A o
r 110 V AC @ 500 mA
“1B”
Switching output
2
“2A” Max. 24 VDC @ 1A or 110 V AC @ 500 mA
“2B”
3.5 SD card slot
Before inserting the micro SD card, you must
remove the cover on the underside of the
camera. The micro SD card slot is under the
cover.
Max. SD card size: 256 Gbyte
After you have inserted the micro SD card, you must format the card before it can
be used.
