JAGUAR S-TYPE
Engi
ne
Year of
manufact
ure
Petrol ECM harness
Installation notes
Conne
ctor
Pin No.
Wire colour
Signal
2.5
3.0
4.0
4.2
2001
FH1
58
white-violet
Fuel pump control signal
ECM location
PI1
49
white-green
Fuel pressure sensor signal

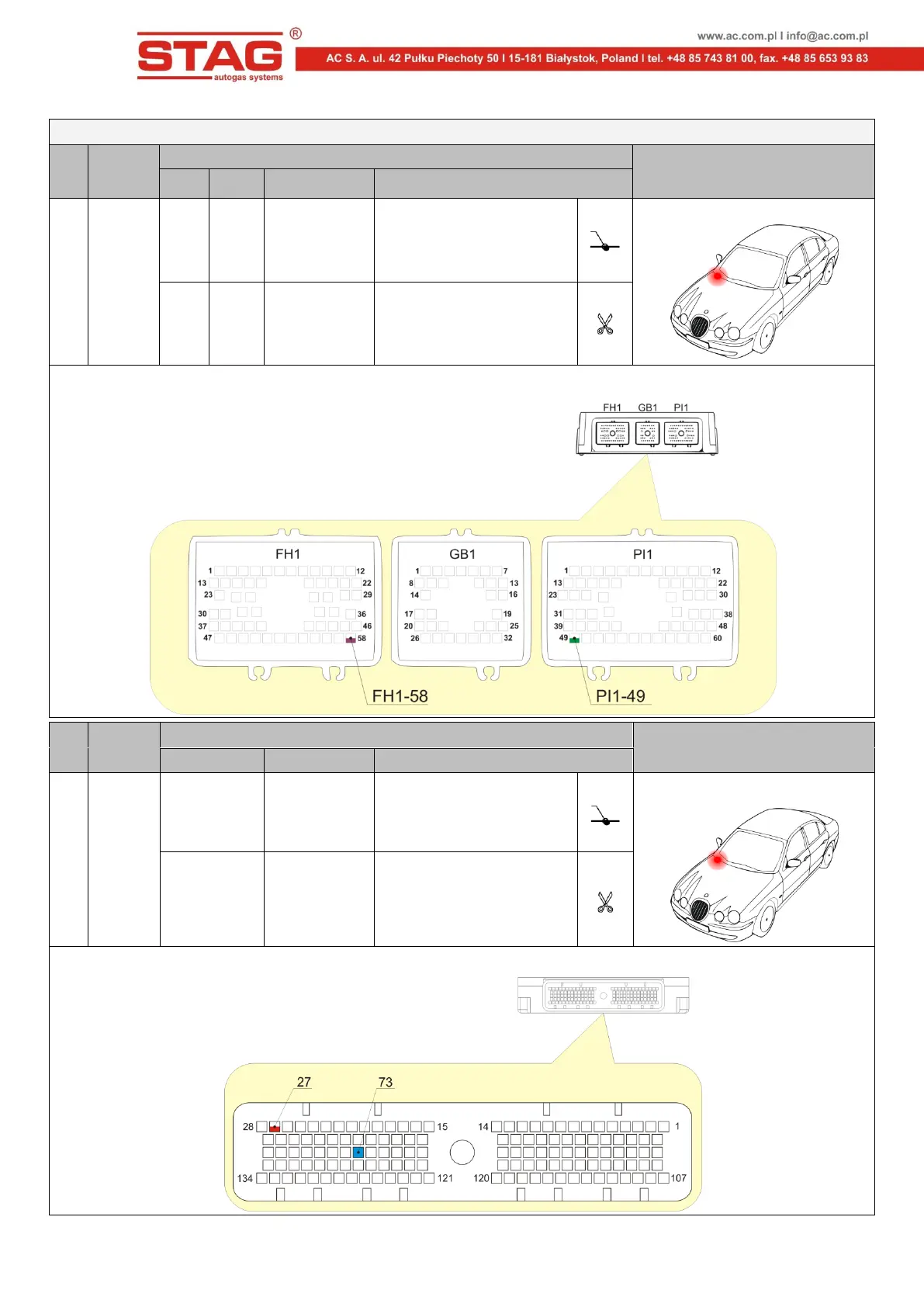

View of the pins in the connector of the petrol controller.
Engi
ne
Year of
manufact
ure
Petrol ECM harness
Installation notes
Pin No.
Wire colour
Signal
2.5
3.0
4.0
4.2
2002
÷
2005
27
white-red
Fuel pump control signal
ECM location
73
blue
Fuel pressure sensor signal
View of the pins in the connector of the petrol controller.
