(3) Installing the height meter

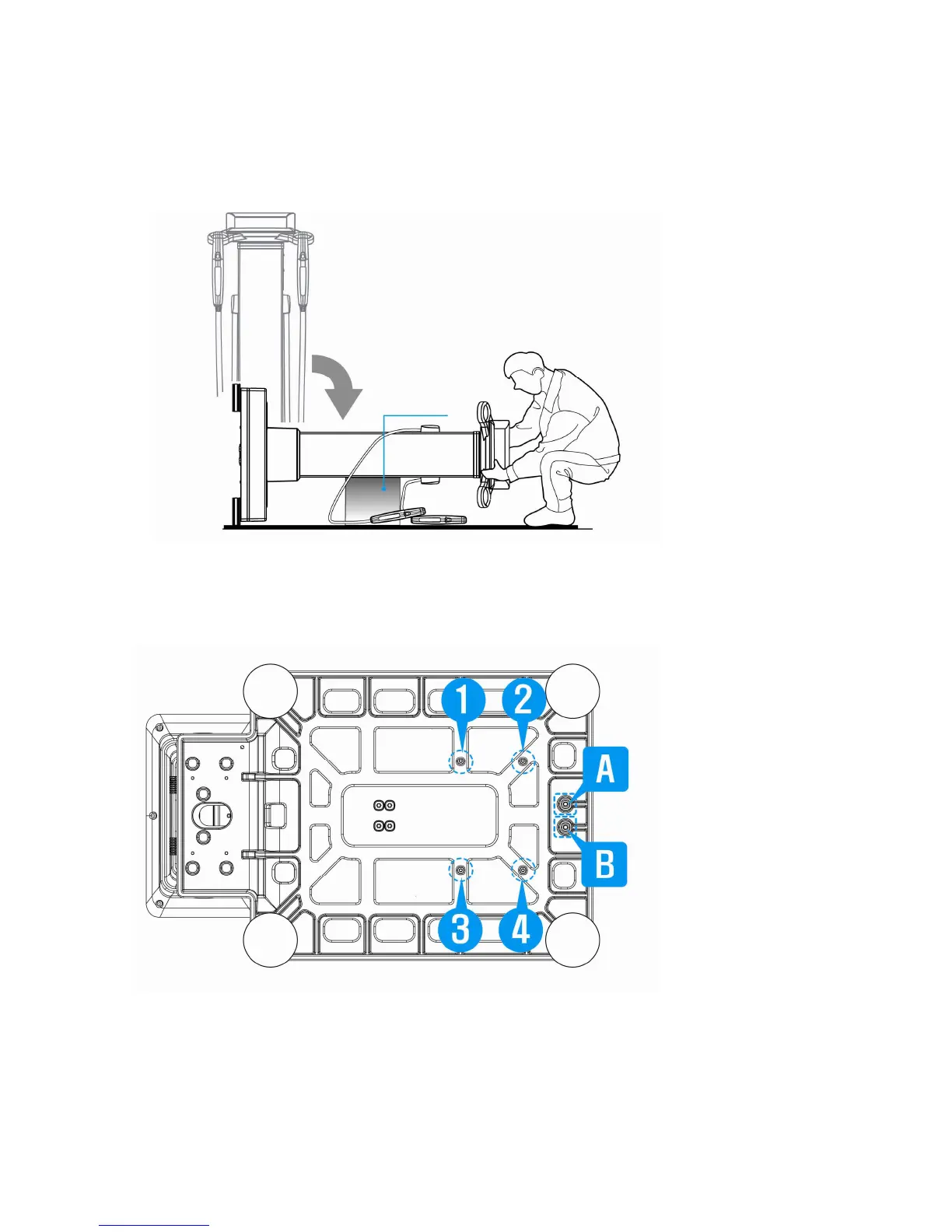

① Pay attention during the installation and follow the instruction below carefully.
Lay the device aside as shown in the picture.
Put a prop or books to support the column so that LCD would not touch the ground.
Place the handle electrodes at a safe spot.
② Before the bottom plate of the height meter is attached to the bottom plate of the scale, check
the 6 spots where the bolts should be fasten. (1, 2, 3, 4 holes: Use M4 wrench bolts and 3mm
wrench tool / A, B holes: Use M6 wrench bolts and 5mm tool)
Supporter
