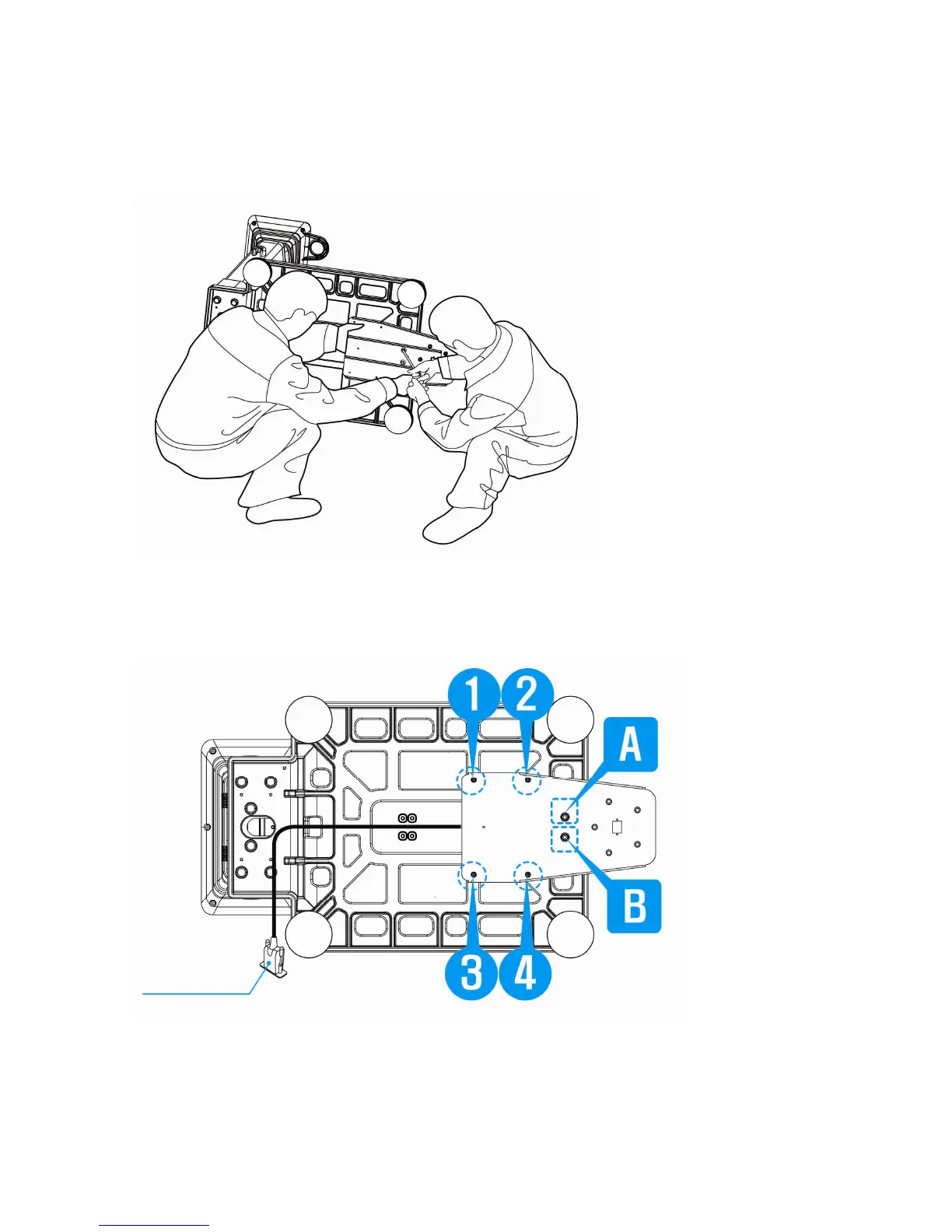

③ Fix the bottom plate of the height meter to the bottom plate of the scale. Make sure that 6 holes
are matched.
Put M4 wrench bolts and M6 wrench bolts to the appropriate holes and fasten them tightly.
(Use 3mm wrench tool for M4 wrench bolts. / Use 5mm wrench tool for M6 wrench bolts.)
④ Recheck if the 6 bolts are put into the right spots as shown in the picture.
(1, 2, 3, 4 holes: Use M4 wrench bolts and 3mm wrench tool / A, B holes: M6 wrench bolts and
5mm wrench tool.)
Height meter
RS-232C cable
