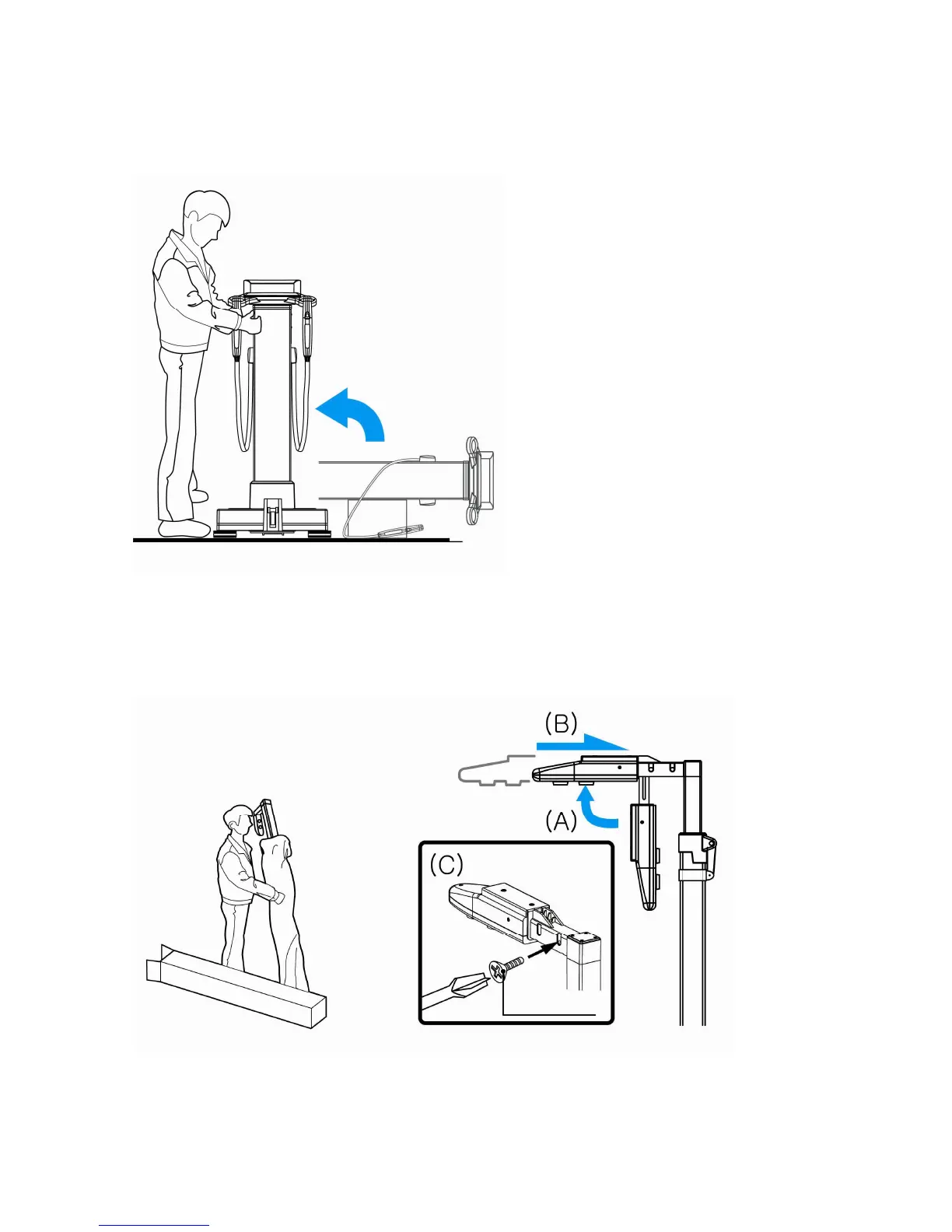

⑤ After the bottom plate of the height meter is installed, stand the device on the flat surface.
Please do the operation following the instruction carefully.
Remove the prop, paper or vinyl on the floor.
⑥ Take the height meter body out of the box and unwrap the body.
Push up the head of the height meter to the (A) arrow direction and push it to the (B) arrow
direction. Make sure if the holes are matched. Fasten M4 plate head bolts using a (+) driver as
shown in the (C) picture.
