Accuniq BC360 - Page 75

75

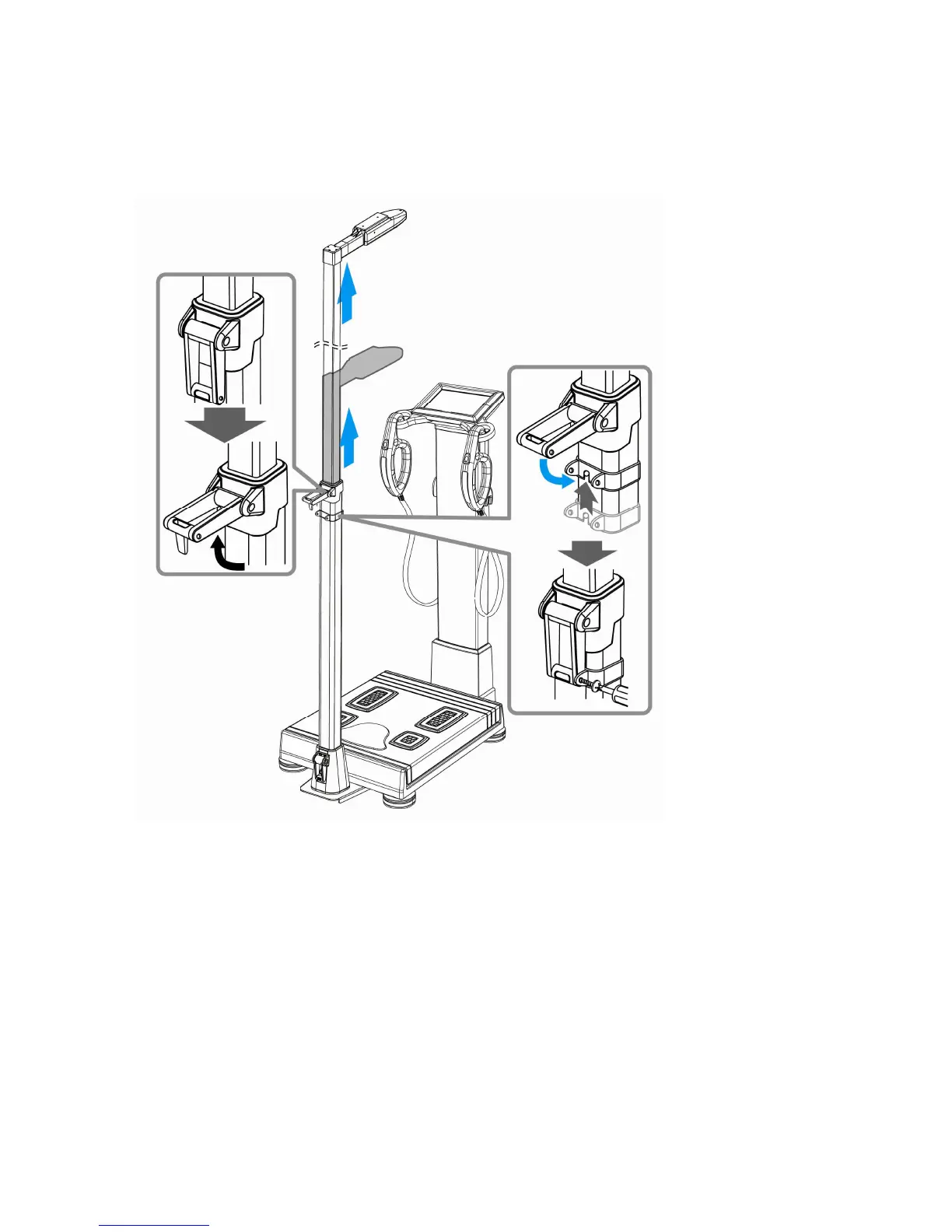

⑩ Lift up the fixing lever located at located at the middle of the height meter body to the arrow.
Lift up the inner column to the end and pull down the fixing lever to the arrow and fix it.
Also move the fixing rack to the spot where the fixing lever is matched.
Fix it as shown in the picture using 2eas of M4 bolts and a (+) driver.
