Accuphase C-2810 User Manual

Balance lnput
A
mp
A
ssembly (712-0098-00)
ﾊﾞﾗﾝｽ入力ｱﾝﾌﾟ Ass'y
Connector Plug K1 308-3203-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Relay RELAY1,2,3 362-1202-00
ﾘﾚｨ
Transistor Q1～4,13～18,25,26,28 2SC3324-BL
ﾄﾗﾝｼﾞｽﾀ 29,31,33,39～44,51,52
Q5,27 2SC3902-S/T
Q6～12,20～24,30,32 2SA1312-BL
34～38,46～50
Q19,45 2SA1507-S/T
Diode D1,3,4,5,8,10,11,12 1SR139-400
ﾀﾞｲｵｰﾄﾞ D2,6,7,9,13 1SS387
IC IC1 OPA2227UA
Polyester Film C1,9,19,27 CF922N1H474J 0.47uF/50V
Capacitor C5,23 CF922N1H105J 1uF / 50V
積層ｺﾝﾃﾞﾝｻ
Polyester Film C2,10,21,29 CQ922M1H122J-B 1200pF/50V
Capacitor C7,25 CQ922M1H102J-B 1000pF/50V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ
Polypropylene Capacitor C3,11,20,28 CQ93PP2A222JM-F 2200pF/100V
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ
PPS Capacitor C15 CQ922HE1H101JR 100pF / 50V
PPSｺﾝﾃﾞﾝｻ
Electrolytic C4,8,22,26 CE04W1C220VRE 22uF /16V
Capacitor C6,24 CE04W1HR47CAE 0.47uF/50V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C12,14,16,18 CE04W1H2R2VPE 2.2uF /50V
C13,17 CE04W1E390LXVE 39uF / 25V
Carbon Film Resistor R13,21,51,58 RD142EA220JFS 22Ω 1/4W
炭素皮膜抵抗器
Metal Film R1,30,36～39,42,71 RK73K1J332JE-T 3.3kΩ1/10W
Resistor R23,31,32,43,44,72,73 RK73K1J682JE-T 6.8kΩ1/10W
金属混合皮膜抵抗器 R4,33,45,74 RK73K1J221JE-T 220Ω 1/10W
R5,34,40,70 RK73K1J105JE-T 1M 1/10W
R6～9,23～27 K73K1J101JE-T 100Ω 1/10W
46～49,52,64～67
R10,16,56,68 RK73K1J273JE-T 27kΩ 1/10W
R11,18,53,60 RK73K1J362JE-T 3.6kΩ1/10W
R12,19,54,61 RK73K1J102JE-T 1kΩ 1/10W
R14,17,55,62 RK73K1J103JE-T 10kΩ 1/10W
R15,22 RK73K1J220JE-T 22Ω 1/10W
R20,59 RK73K1J331JE-T 330Ω 1/10W
R28,29,50,69 RK73K1J104JE-T 100Ω 1/10W
R35,41 RK73K1J243JE-T 24kΩ 1/10W
R57,63 RK73K1J120JE-T 12Ω 1/10W
Polyester Film Capacitor C5,13 CF922MF2E473KDAZ 0.47uF/250V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ
Carbon Film Resistor R1,26,29,30 RD142EA220JFS 22Ω 1/6W
炭素皮膜抵抗器 R10,11 RD142EA331GFS 330Ω 1/6W
R37 RD142EA102GFS 1kΩ 1/6W
R38 RD142EA511GFS 510Ω 1/6W
Metal Film Resistor R2,23,31,53 RK73K1J272JE-T 2.7kΩ1/10W
金属皮膜抵抗器 R3,24,32,54 RK73K1J822JE-T 8.2kΩ1/10W
R4,13～16,25,33 RK73K1J101JE-T 100Ω 1/10W
40～43,55
R5,21,34,51 RK73K1J332JE-T 3.3kΩ1/10W
R6,22,35,52 RK73K1J472JE-T 4.7kΩ1/10W
R7,9,17,18,36, RK73K1J220JE-T 22Ω 1/10W
39,46,47
R8,44 RK73K1J273JE-T 27kΩ 1/10W
R12,45 RK73K1J103JE-T 10kΩ 1/10W
R19,49 RK73K1J104JE-T 100kΩ1/10W
R20,50 RK73K1J470JE-T 47Ω 1/10W
R27,28 RK73K1J102JE-T 1kΩ 1/10W
R48 RK73K1J474JE-T 470kΩ1/10W
－６－
Balance Output Assembly (712-0099-00)
ﾊﾞﾗﾝｽ出力 Ass'y
Connector Plug K1 308-3203-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Relay RELAY1 362-1202-00
ﾘﾚｨ
Diode D1,6,7,8,13 1SS387
ﾀﾞｲｵｰﾄﾞ D2～5,9～12 1SR139-400
Transistor Q1,21 2SA1507-S/T
ﾄﾗﾝｼﾞｽﾀ Q2～4,20,22～24,40 2SC2547-D/E
Q5,17～19,25,37～39 2SA1085-D/E
Q6,11～14,26,31～34 2SA1312-BL
Q7～10,15,27～30,35 2SC3324-BL
Q16,36 2SC3902-S/T
Electrolytic Capacitor C1,6,9,14 CE04W1H101VK 100uF/50V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C2,7 CE04W1E101VK 100uF/25V
C3,8 CE04W1E390LXVE 39uF /25V
C10,17 CE04W1H101CAE 100uF/50V
C11,16 CE04W1H220KZEE 22uF /25V
C15 CE04W0J221CZE 220uF/6.3V
Polypropylene Capacitor C4,12 CQ922M1H682J-B 6800pF/50V
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ

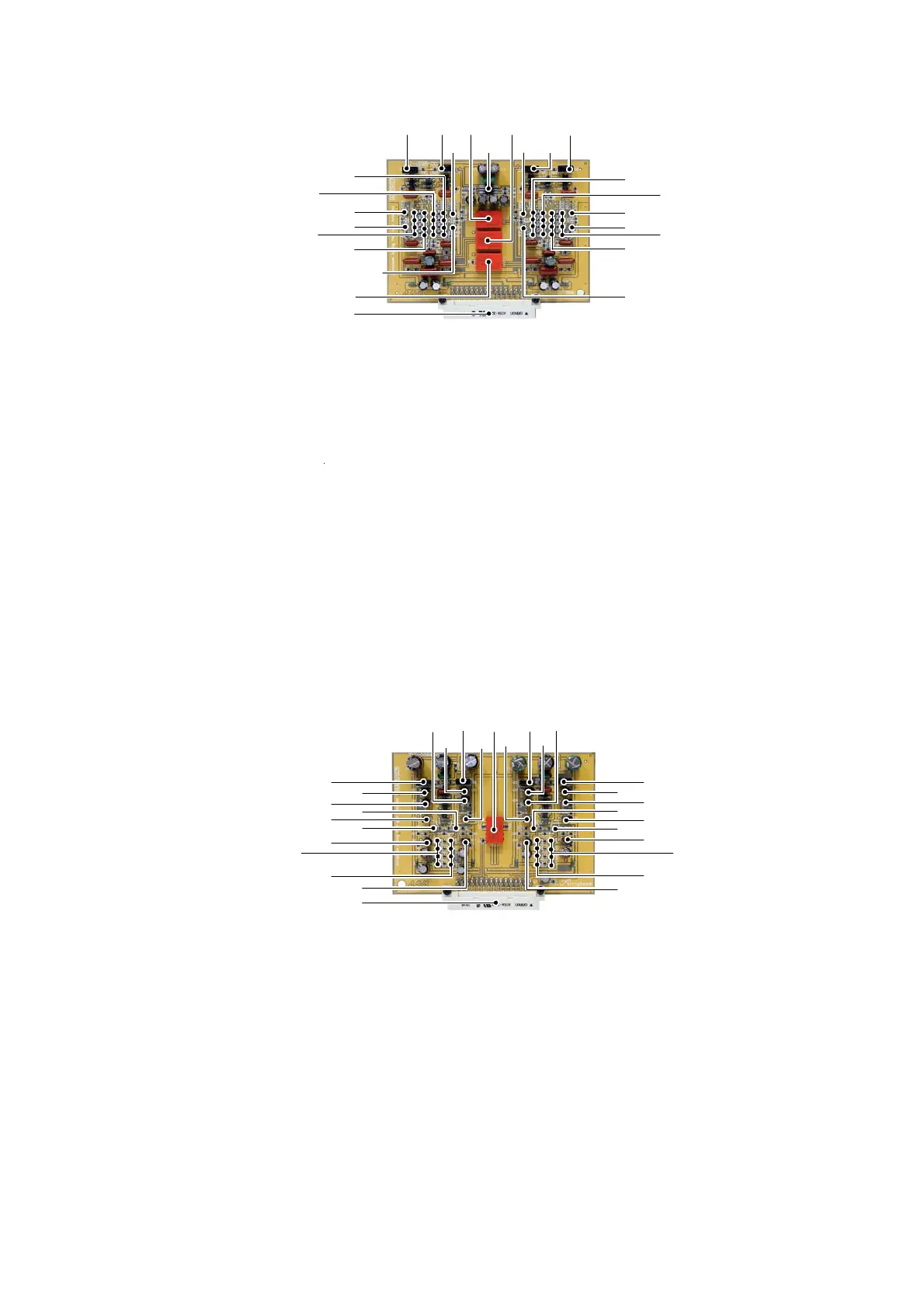

RELAY1
Q21
K1
RELAY3
RELAY1
RELAY2
Q4
Q3
Q2
Q1
Q7
Q6
Q11
Q10
Q9
Q8
Q17
Q16
Q15
Q14
Q23
Q22
Q21
Q20
Q5
Q19
K1
Q26
Q27
Q45
IC1
Q32
Q51
Q52
Q37
Q36
Q35
Q34
Q43
Q42
Q41
Q40
Q33
Q31
Q29
Q28
Q49
Q48
Q47
Q46
Q30
Q36
Q23
Q40
Q39
Q26
Q38
Q35
Q37
Q34
Q33
Q31
Q32
Q25
Q24
Q30
Q29
Q
27
Q28
Q22
Q16
Q18
Q20
Q19
Q14
Q13
Q11
Q12
Q5
Q15
Q17
Q1
Q4
Q6
Q2
Q10
Q9
Q7
Q8
Q3
Q25
