Accuphase E-550 User Manual

-13-

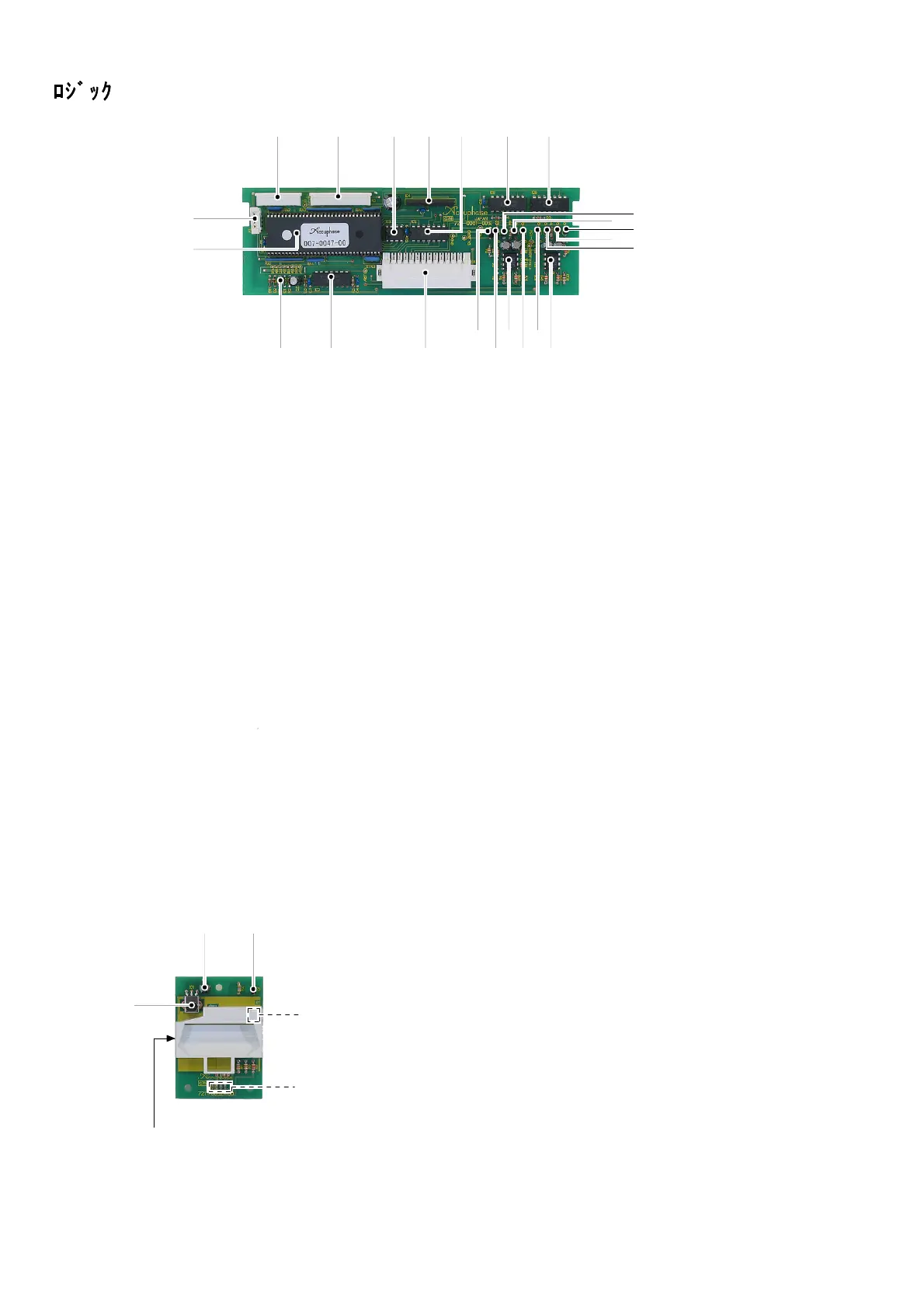

Logic
A
ssembly (721-0081-00)
Ass'y
K1
Q1
Transistor Q1 2SA1048-GR
ﾄﾗﾝｼﾞｽﾀ
FET Q2,5,6,9 2SK2541
Q3,4,7,8 2SK330-Y
Electorlytic Capacitor C2 CE04W1H010VK 1uF /25V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C5 CE04W1C471VK 470uF/50V
C9,10,11,12 CE04W1C220VRE 22uF /50V
Ceramic Capacitor C1,3,4,6,7,8 CK92Y5V1H104Z 0.1uF/50V
磁器ｺﾝﾃﾞﾝｻ
R1 RD142CA123J 12kΩ 1/4W
R2,6,9,18 RD142CA103J 10kΩ 1/4W
R3 RD142CA105J 1MΩ 1/6W
Carbon Film Resistor R4 RD142CA104J 100kΩ1/6W
炭素被膜抵抗器 R5,11,14,20 RD142CA100J 10Ω 1/6W
R7,13,16,21 RD142CA303J 30kΩ 1/6W
R8,10,17,19 RD142CA153J 15k 1/6W
R12,15 RD142CA220J 22Ω 1/6W
Resistor Array RA1 RD92AK11C104J18
抵抗ｱﾚｨ RA2 RD92AK04C104J18
RA3 RD92AK13C104J18
RA4 RD92AK05C104J18
RA5 RD92AK05C103J18
IC Soket 300-1101-00
ICｿｹｯﾄ
Connector Jack K1 307-0410-00
ｺﾈｸﾀｼﾞｬｯｸ K2 307-0912-00
K3 307-1305-00
Connector Plug K4 308-2501-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Crystal XTAL1 527-0025-00
ｾﾗﾛｯｸ
Diode D1,2,3,4,5 MA165
ﾀﾞｲｵｰﾄﾞ
IC1 TMC87PH40AN
IC2 TC74HC14AP
IC IC3 M93C46-WBN6P
IC4 LB1642
IC5 TC74HCU04AP
IC6,8 TC74HC00AP
IC7,9 NJM2903D
Digital Transistor X1 RN2202
ﾃﾞｼﾞﾀﾙﾄﾗﾝｼﾞｽﾀ
K2
K3
K4
IC1
IC2
IC3
IC5
IC7
IC9
Q5
Q6
Q2
X1
IC4
IC6
IC8
Q3
Q4
Q9
Q8
Q7
Receiver Assembly (721-0082-00)
受光器 Ass'y
PC Board 115-1655-00
PC ﾎﾞｰﾄﾞ
Light Holder 234-1114-03
ﾗｲﾄﾎﾙﾀﾞ
LED Spacer 250-0061-00
LED ｽﾍﾟｰｻ
Connector Plug K1 308-0407-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Infrared Ray Senser IC1 NJL62H380A
赤外線ﾚｼｰﾊﾞ
LED D1 SDPW3DGOB0-J
Transistor Q1 2SC2458-GR
ﾄﾗﾝｼﾞｽﾀ
Electorlytic Capacitor C1 CE04W0J470MA 47uF / 6.3V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ
Carbon Film Resistor R1 RD142CA620J 62Ω 1/6W
炭素被膜抵抗器 R2 RD142CA470J 47Ω 1/6W
R3 RD142CA102J 1kΩ 1/6W
R4 RD142CA182J 1.8kΩ 1/6W
Q1
D1
C1
IC1
K1
Light Holder
ﾗｲﾄﾎﾙﾀﾞ
234-1114-03
