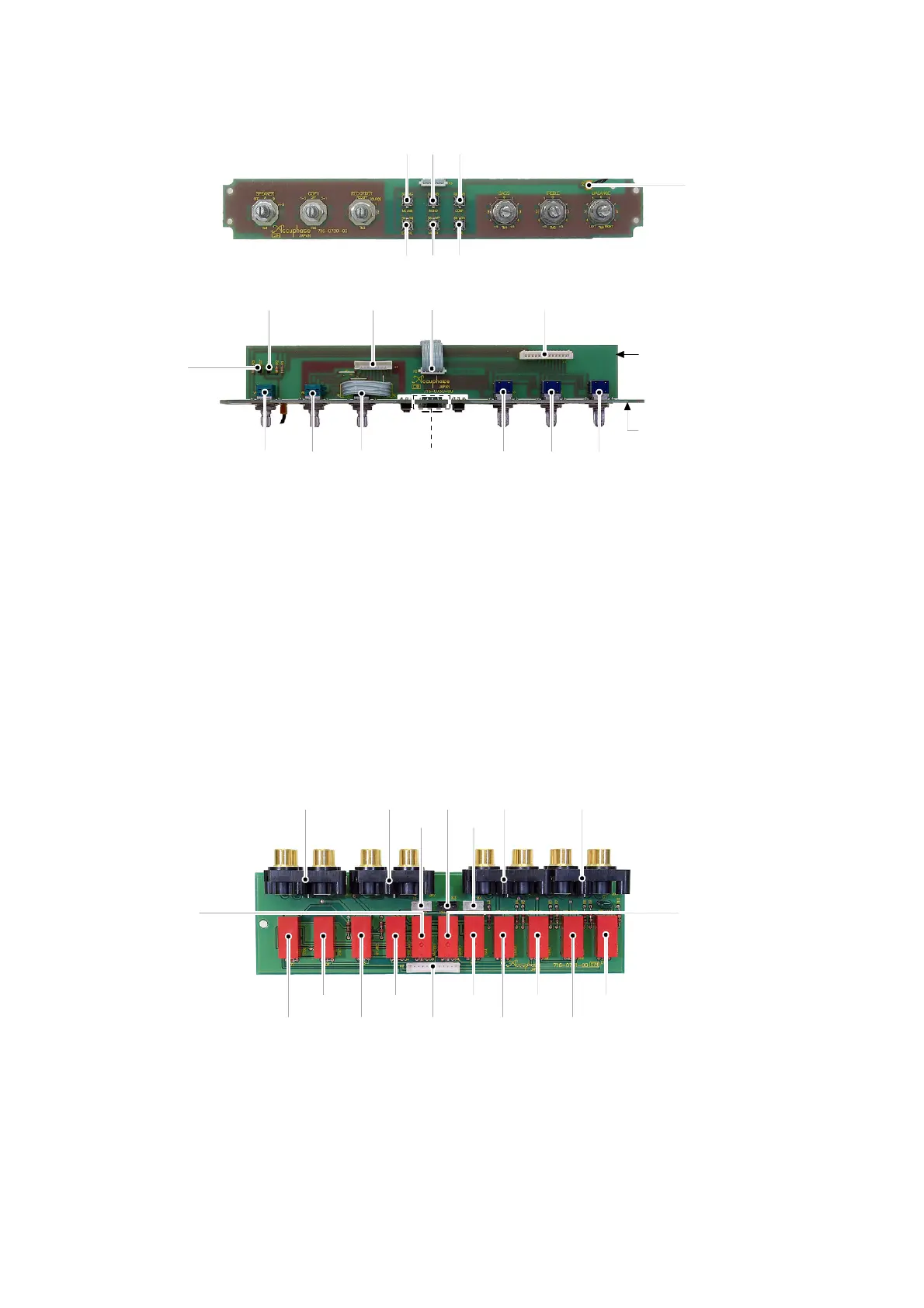

Accuphase E-550 - Switch Assembly (716-0730-00); Switch Assembly Component Breakdown; IO Relay Assembly (716-0731-00); IO Relay Assembly Component Breakdown

PC Board 115-1653-00
PC ﾎﾞｰﾄﾞ 115-1667-00
Flat Cable Holder K2,3 280-9006-00
ﾌﾗｯﾄｹｰﾌﾞﾙﾎﾙﾀﾞ
Connector Jack K1 307-1306-00
ｺﾈｸﾀｼﾞｬｯｸ
Connector Plug K4 308-1010-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Connector Ass'y K5 309-2273-04
ｺﾈｸﾀAss'y
Variable Resistor VR1,2 575-2406-10
可変抵抗器 VR3 575-2313-00
-９-
S
w
itch
A
ssembly (716-0730-00)
ｽｲｯﾁ
Ass'y
IO Relay Assembly (716-0731-00)
IO
ﾘﾚｨ
Ass'y
Pin Jack JK1,2,3,4 302-0411-00
ﾋﾟﾝｼﾞｬｯｸ
Connector Plug K1,4 308-0407-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-1206-00
K3 308-0417-00
Relay RELAY1～11 362-1212-00
ﾘﾚｨ
Terminal TM1～6 314-0539-04
端子
Rotary Switch S1,3 336-4817-00
ﾛｰﾀﾘｰｽｲｯﾁ S2 336-3903-00
Push Switch S4,5,6,7,8,9 354-1111-00
ﾌﾟｯｼｭｽｲｯﾁ
FET Q1,2 2SK2541
Carbon Film Resistor R1,3 RD142CA103J 10kΩ 1/6W
炭素皮膜抵抗器 R2 RD142CA473J 47kΩ 1/6W
VR1
VR2VR3
S1s
S2
S3
K1
K4
K2
K3
K5
S5
S7
S4
S9
S6
S8
Q2
Q1
Polyester Capacitor C1 CF922MF2E473KDAZ 0.047uF/250V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ
Diode D1～11 MA165
ﾀﾞｲｵｰﾄﾞ
Carbon Film Resistor R1～10 RD142CA101J 100Ω 1/4W
炭素皮膜抵抗器
K1
K3
K4
K2
JK1
JK2
JK3
JK4
RELAY2
RELAY4
RELAY5
RELAY8
RELAY10
RELAY1
RELAY7
RELAY6
RELAY9
RELAY3
RELAY11
PC Board 115-1653-00
PCﾎﾞｰﾄﾞ
PC Board 115-1667-00
PCﾎﾞｰﾄﾞ
