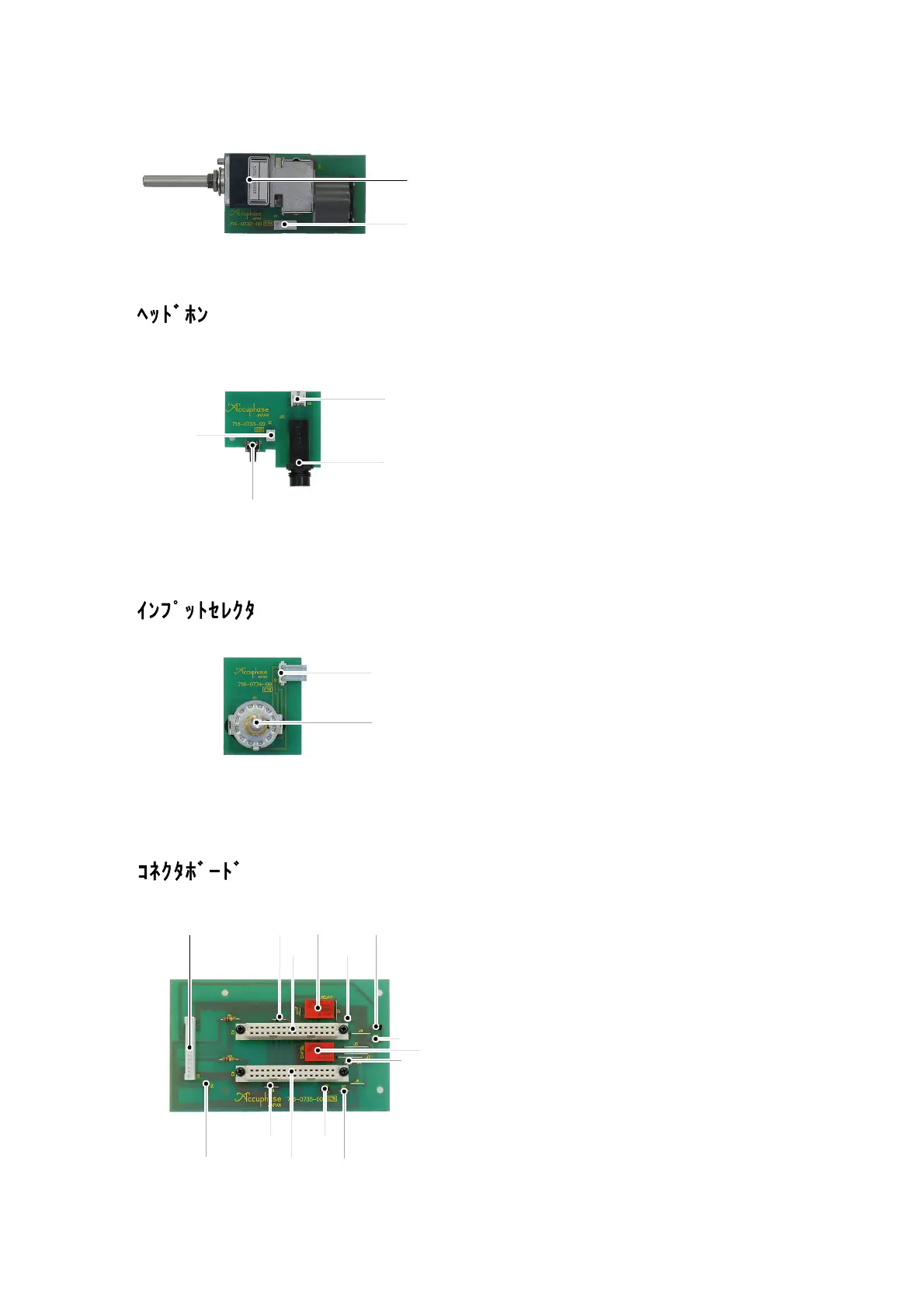

Accuphase E-550 - Volume Assembly (716-0732-00); Volume Assembly Component Breakdown; Head Phone Assembly (716-0733-00); Head Phone Assembly Component Breakdown

Head Phone Assembly (716-0733-00)
Ass'y
-10-
Connector Jack K2,3 307-3204-00
ｺﾈｸﾀｼﾞｬｯｸ
Connector Plug K1 308-1402-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Relay RELAY1,2 362-1202-00
ﾘﾚｨ
Digitl Transistor X1,2 RN1204
ﾃﾞｼﾞﾀﾙﾄﾗﾝｼﾞｽﾀ
Zener Diode D1,6 RD5.1EB1
ﾂｪﾅｰﾀﾞｲｵｰﾄﾞ
Diode D2,3,4,7 MA165
ﾀﾞｲｵｰﾄﾞ D5 11EQS10
Carbon Film Resistor R1,2 RD142EA104J 100kΩ 1/6W
炭素皮膜抵抗器 R3,4,5,6 RD142EA100JF 10Ω 1/4W
Connector Board Assembly (716-0735-00)
Ass'y
Volume Assembly (716-0732-00)
ﾎﾞﾘｭｰﾑ
Ass'y
K1
PC Board 115-1659-00
PCﾎﾞｰﾄﾞ
Connector Plug K1 308-0508-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Variable Resistor VR1 575-2026-00
可変抵抗器
VR1
PC Board 115-1660-00
PCﾎﾞｰﾄﾞ
Head Phone Jack JK1 302-1204-00
ﾍｯﾄﾞﾎﾝｼﾞｬｯｸ
Connector Plug K1 308-0206-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0311-00
Push Switch S1 354-1118-00
ﾌﾟｯｼｭｽｲｯﾁ
K1
K2
S1
JK1
Input Selector Assembly (716-0734-00)
Ass'y
PC Board 115-1661-00
PC ﾎﾞｰﾄﾞ
Flat Cabley Holder K1 280-9004-00
ﾌﾗｯﾄｹｰﾌﾞﾙﾎﾙﾀﾞ
Rotary Switch S1 339-0002-00
ﾛｰﾀﾘｰｽｲｯﾁ
K1
S1
X1
X2
RELAY1
K1
K2
RELAY2
K3
D5
D1
D6
D2
D3
D4
D7
