Accuphase E-550 User Manual

-11-
VR1
Test Point
Q23,24
Q25
Q6
Q1
Q5
K1
K3
Q4
Q26
K2
IC1I
PC Board 115-1649-00
PCﾎﾞｰﾄﾞ
Heat Sink 240-0089-03
ﾋｰﾄｼﾝｸ
Transistor Insulator 250-1188-04
絶縁ｽﾍﾟｰｻ
Connector Plug K1 308-0210-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0206-00
K3 308-0410-00
TP1 308-0221-00
Terminal 314-0514-04
端子
Potentiometer VR1 ;220Ω 583-0226-00
半固定抵抗器
IC IC1 UPC4570C
Zener Diode D1,21 HZ6A1L
ﾂｪﾅｰﾀﾞｲｵｰﾄﾞ D8,13 HZ153L
D14,15 HZ9A2L
Diode D3,9,11,19 MA165
ﾀﾞｲｵｰﾄﾞ D4,18 MA167
D10 LN1VB60
Q1 2SA1837
Q2 2SC4685
Q3 2SC3902-S/T
Q7,10,15,19,23 2SA1376-K/U
Transistor Q8,9,21,22 2SC2705-Y
ﾄﾗﾝｼﾞｽﾀ Q11,14,18,20,24 2SC3478-K/U
Q12,13,16,17 2SA1145-Y
Q28 2SC4793
Q29 2SA1507-S/T
FET Q4,5,6 2SJ618
Q25,26,27 2SK3497
Electorlytic C1,8,22,27 CE04W1H471KW 470uF /50V
Capacitor C4,9,20,23 CE04W1J471VRE 470uF /63V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C11,18 CE04W1H471R20E 470uF /50V
C12,16 CE04W1E101LXZE 100uF /25V
C15 CE04W1E100ROA 10uF / 25V
C17,19 CE04W1C100VPE 10uF / 16V
Polyester Film C5,26 CF922MF2E473KDAZ 0.047pF/250V
Capacitor C7,10,21,25 CF922MF2E472KDAZ 4,700pF/250V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ
Polypropylene C2,29 CQ93PP2A471JM-F 470pF / 100V
Capacitor C6,24 CQ922NG2A562JAPSF 1,500pF/100V
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ C14 CQ921PG2A152JDTNF 1,500pF/100V
R1,2,3,16,25,47 RD142EA102J 1kΩ 1/4W
56,61,67,68
R4,5,6,63,65,69 RD142EA331J 330Ω 1/4W
R10 RD142EA6R8JF 6.8Ω 1/4W
R11 RD142EA202JFS 2kΩ 1/4W
R12 RD142EA271JFS 270Ω 1/4W
Carbon Film Resistor R15,29,45,60 RD142EA242J 2.4kΩ 1/4W
炭素皮膜抵抗器 R17,26,48,57 RD142EA562J 5.6kΩ 1/4W
R18,53 RD142EA161J 160Ω 1/4W
R19～21,27,49 RD142EA220J 22Ω 1/4W
51,54,55
R22,30,46,52 RD142EA153J 15kΩ 1/4W
R32,43 RD142EA101J 100Ω 1/4W
R33 RD142EA393J 39kΩ 1/4W
R34,37,41 RD142EA753J 75kΩ 1/4W
R35 RD142EA471J 470Ω 1/4W
R70 RD142HA563JFS 56kΩ 1/4W
Metal Film Resistor R38,40 RN142HK3831FF 3.83kΩ1/4W
金属皮膜抵抗器 R39 RN142HK86R6FF 86.6Ω 2W
R42 RN142HK7680FF 768Ω 1/4W
Oxide Metal Film R13,58 RS143DA330JS-P 33Ω 2W
Resistor R23 RS143DA161JS-P 160Ω 2W
金属酸化物皮膜抵抗器 R24,50 RS143AA332JS-P 3.3kΩ 1W
Fuse Resistor R14,28,44,59 RF142EA101G-P 100Ω 1/4W
ﾌｭｰｽﾞ抵抗器 R31,36 RF142EAR47J 0.47Ω 1/4W
Metal Plate Resistor R7～9,62,64,66 RW993DJR22K-H 0.22Ω 2W
金属板抵抗器
Q2
C4
C23
Q28
Q29
Q3
Q27
C27
C1
Q7
D10
R7
R66
R62
R64

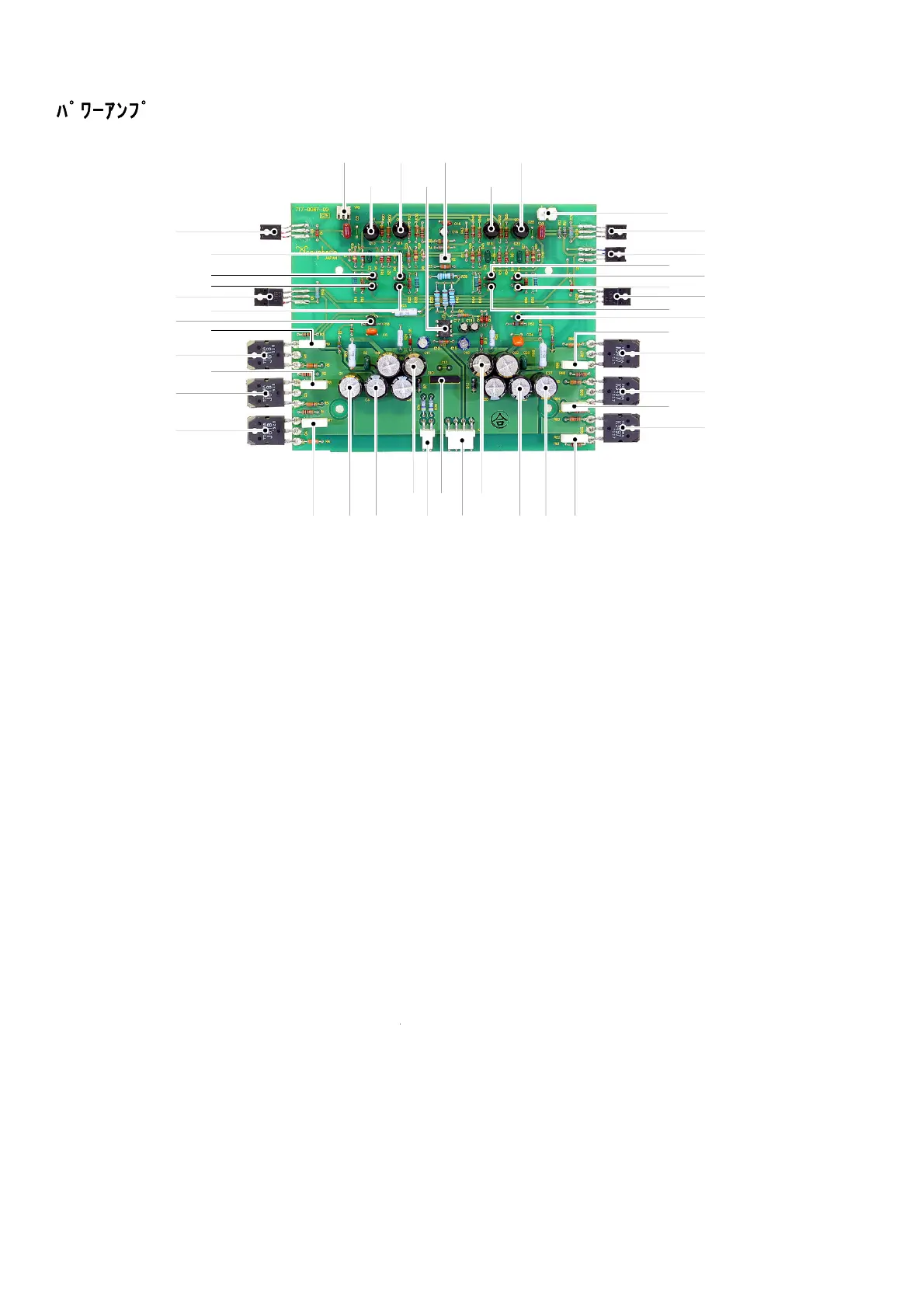

Po
w
er
A
mp
A
ssembly (717-0087-00)
Ass'y
(T.P.1)
Q20
R8
R9
Q8
Q9
Q13
Q12
Q21
Q22
Q18,19
Q10,11
Q14,15
Q17
Q16
C11
C18
