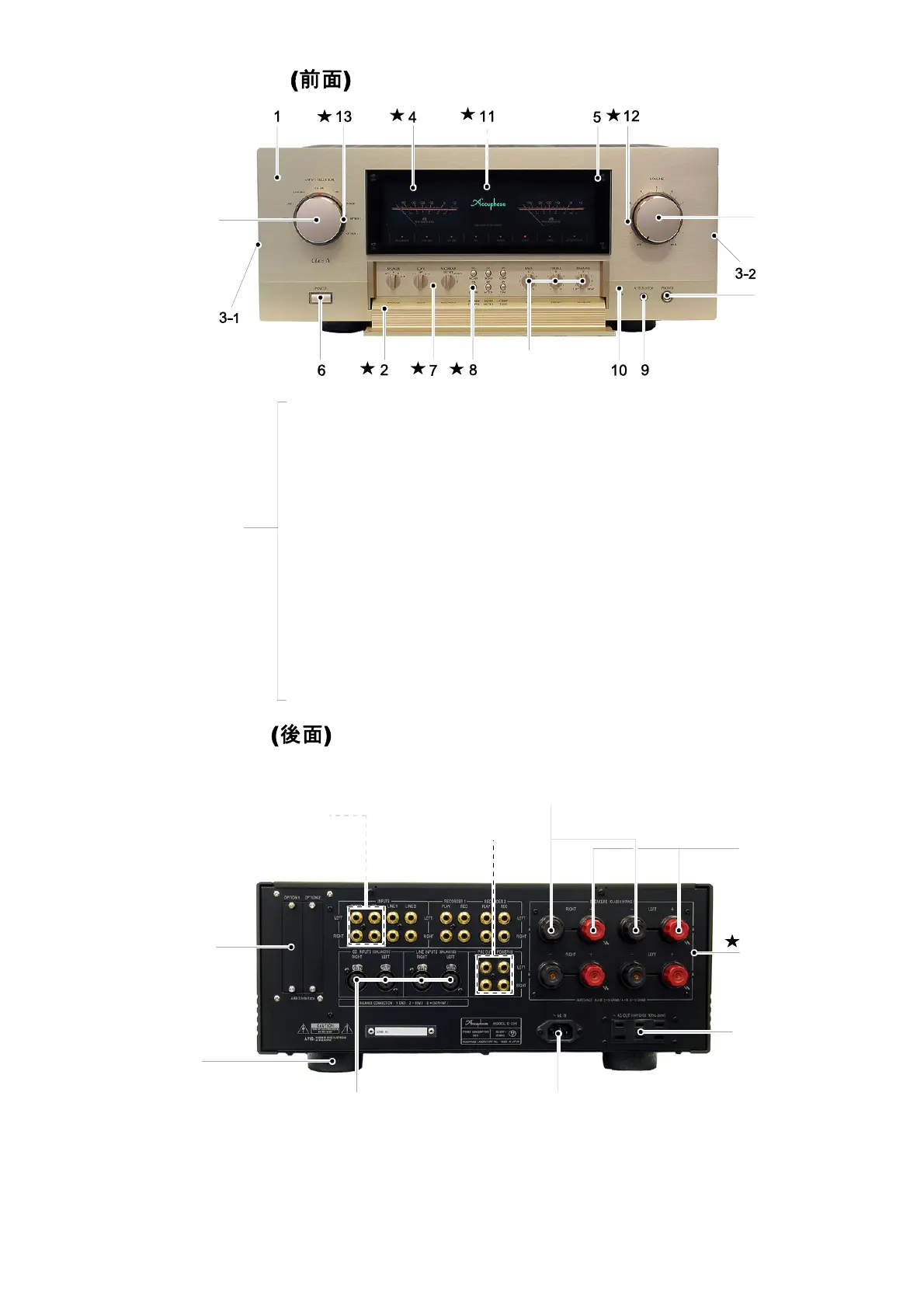

Accuphase E-550 - FRONT VIEW (前面); Front Panel Component Identification; REAR VIEW (後面); Rear Panel Component Identification

FRONT
V
IE
W
REAR VIEW
Pin Jack
ﾋﾟﾝｼﾞｬｯｸ /4pcs.
(302-0411-00)
Pin Jack Cover
ﾋﾟﾝｼﾞｬｯｸｶﾊﾞ/16pcs.
(254-2015-04)
Foot
脚
(238-0023-00)
Binding Screw
ﾌﾞﾚｻﾞｰBﾀｲﾄねじ
(611-0414-02)
Decoration Plate
ｽﾛｯﾄﾊﾟﾈﾙ
(159-0059-14)
Fixing Screw
飾りﾈｼﾞ/2pcs.
(630-0302-04)
Washer
ﾜｯｼｬ/4pcs.
(637-9045-04)
XLR (Cannon) Receptacle
ｵｰﾃﾞｨｵｺﾈｸﾀｼﾞｬｯｸ/4pcs.
(302-8011-00)
Connector Cover / Female
ｺﾈｸﾀｶﾊﾞ/ 4pcs.
(254-2012-00)
AC Outlet
ACｿｹｯﾄ/J type only
(305-1209-00)
AC Inlet
AC ｺﾈｸﾀﾌﾟﾗｸﾞ
(301-3304-00)
＊Power Supply Cord
電源ｺｰﾄﾞ
J type:680-1404-00
U type:680-2402-00
E type:680-3402-00
Rear Panel
ﾊﾞｯｸﾊﾟﾈﾙ
(135-0179-12)
Front Panel Assembly
ﾌﾛﾝﾄﾊﾟﾈﾙ Ass'y
(130-0187-11)
1 Front Panel=131-0187-11
ﾌﾛﾝﾄﾊﾟﾈﾙ
2 Sub-panel =134-0154-02
ｻﾌﾞﾊﾟﾈﾙ
3-1 Panel End Cap(L)=132-0127-04
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟL
3-2 Panel End Cap(R)=132-0128-04
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟR
4 Front Glass=172-0140-03
ﾌﾛﾝﾄｶﾞﾗｽ
5 Decoration Screw=630-0307-14
飾りﾈｼﾞ
Washer =637-9045-04
ﾜｯｼｬ
6 Push-button=388-5062-03
ﾌﾟｯｼｭﾎﾞﾀﾝ /POWER
Coil Spring=285-1016-04
Frame=113-0130-04
E-ring=647-1054-00
1pce.
1pce.
1pce.
1pce.
1pce.
4pcs.
4pcs.
1pce.
1pce.
1pce.
1pce.
7 Panel Name Plate=180-1102-13
ﾊﾟﾈﾙﾈｰﾑﾌﾟﾚｰﾄ
8 Push-button=389-5084-03
ﾌﾟｯｼｭﾎﾞﾀﾝ /TONE,COMP,MODE,METER
EXTPRE,
9 Push-button=388-0602-03
ﾌﾟｯｼｭﾎﾞﾀﾝ /ATT.
10 Push-button=388-0306-04
ﾌﾟｯｼｭﾎﾞﾀﾝ
11 Indicator=173-9084-03
ｲﾝﾃﾞｨｹｰﾀ
12 Knob Base=170-0071-04/VOLUME
13 Knob Base=170-0070-13/INPUT
台座
1pce.
1pce.
1pce.
1pce.
1pce.
1pce.
1pce.
Knob for VOLUME
ﾂﾏﾐ
(381-4501-14)
Head Phone Jack
ﾍｯﾄﾞﾎﾝｼﾞｬｯｸ
(302-1204-00)
Knob for INPUT
ﾂﾏﾐ
(381-4503-04)
Knob for TONE,BAL,
ﾂﾏﾐ (384-1405-04)
－２－
Pin Jack
ﾋﾟﾝｼﾞｬｯｸ /2pcs.
(302-0412-00)
Pin Jack Cover
ﾋﾟﾝｼﾞｬｯｸｶﾊﾞ/4pcs.
(254-2015-04)
Speaker Terminal
SP端子/RED
(313-1020-00)
Cap/ｷｬﾌﾟ
(254-2024-04)
Speaker Terminal
SP端子/BRN
(313-1021-00)
Cap/ｷｬﾌﾟ
(254-2023-04)
