Accuphase E-550 User Manual

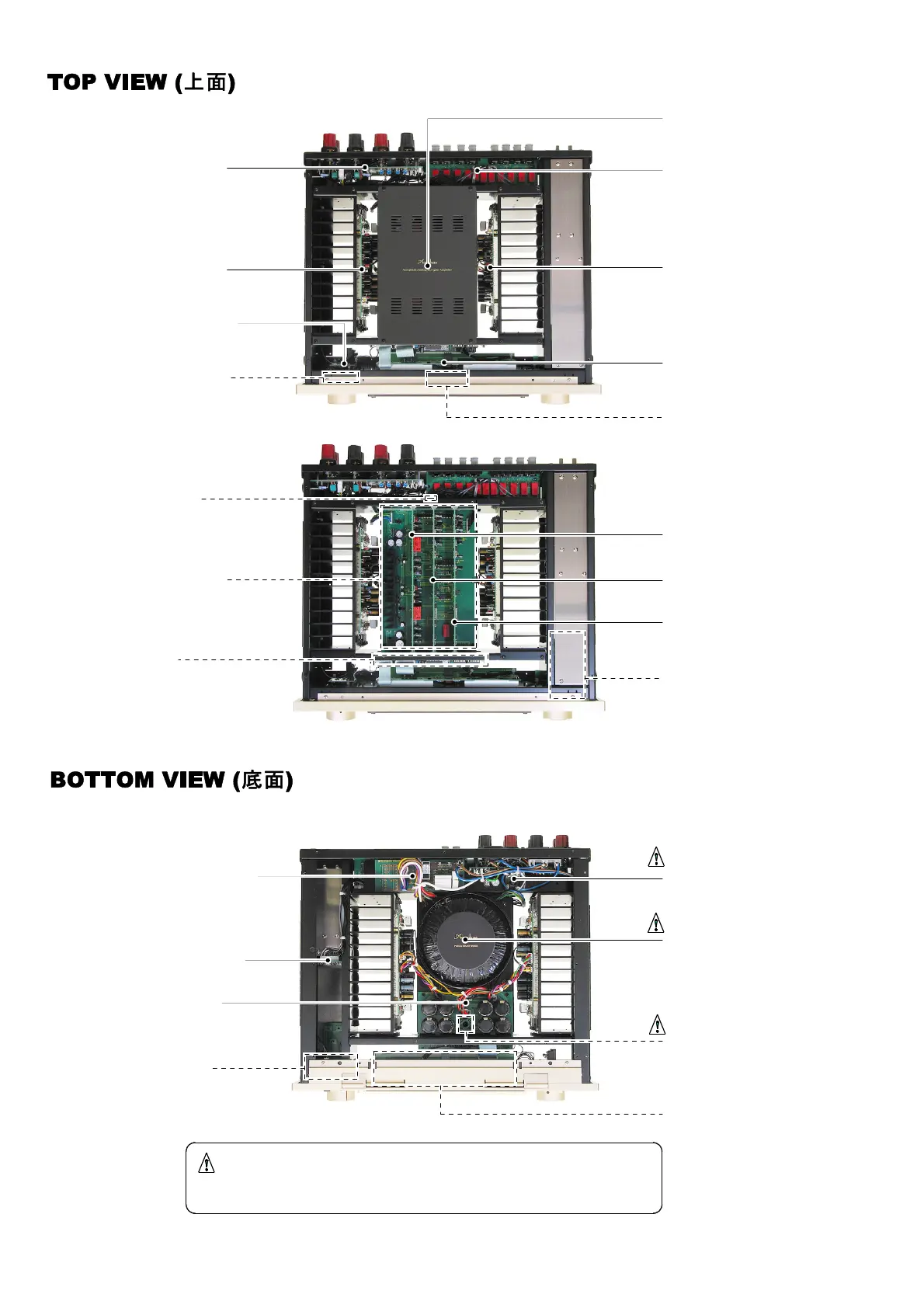

IO Relay Assembly
IOﾘﾚｨ Ass'y
(716-0731-00)
Power Transformer
ﾊﾟﾜｰﾄﾗﾝｽ
(510-3027-00)
Logic Assembly
ﾛｼﾞｯｸ Ass'y
(721-0081-00)
Input Selector Assembly
ｲﾝﾌﾟｯﾄｾﾚｸﾀ Ass'y
(716-0734-00)
Connector Board Assembly
ｺﾈｸﾀﾎﾞｰﾄﾞ Ass'y
(716-0735-00)
Volume Assembly
ﾎﾞﾘｭｰﾑ Ass'y
(716-0732-00)
Variable Resistor
可変抵抗器
(575-2026-00)
Power Amp Assembly(L)
ﾊﾟﾜｰｱﾝﾌﾟ Ass'y (L)
(717-0087-00)
Protection Assembly
ﾌﾟﾛﾃｸｼｮﾝ Ass'y
(720-0075-00)
Power Supply Assembly
電源 Ass'y
(719-0058-00)
Diode /D001
ﾀﾞｲｵｰﾄﾞ
(S15VB20)
Attention m ark indicating critical components for safety.
Replacement must be made with identical parts of special part number.
このマークのついている部品は、安全上重要な部品です。
必ず指定されている部品番号の部品を使用して下さい。
Head Phone Assembly
ﾍｯﾄﾞﾎﾝ Ass'y
(716-0733-00)
－３－
Power Amp Assembly(R)
ﾊﾟﾜｰｱﾝﾌﾟ Ass'y (R)
(717-0087-00)
Mother Board Assembly
ﾏｻﾞｰﾎﾞｰﾄﾞ Ass'y
(716-0729-00)
Selector LED Assembly
ｾﾚｸﾀLED Ass'y
(723-0118-00)
In-rush Protector Assembly
ｲﾝﾗｯｼｭ防止 Ass'y
D/U type (716-0728-01/02)
E type (716-0728-03)
Diode
ﾀﾞｲｵｰﾄﾞ
(S10VB20)
VI Assembly (Rch)
(713-0013-00)
VI Assembly (Lch)
(713-0013-00)
IV Assembly
(713-0014-00)
Shield Case
ｼｰﾙﾄﾞ板
(231-0068-03)
Swich Assembly
ｽｲｯﾁAss'y
(716-730-00)
Name Plate
ﾈｰﾑﾌﾟﾚｰﾄ
(180-3058-04)
Receiver Assembly
受光器 Ass'y
(721-0082-00)
Meter Lanp Assembly
ﾒｰﾀﾗﾝﾌﾟAss'y
(723-0117-00)
Thermistrs TH001
ｻｲﾘｽﾀ
(421-0003-00)
