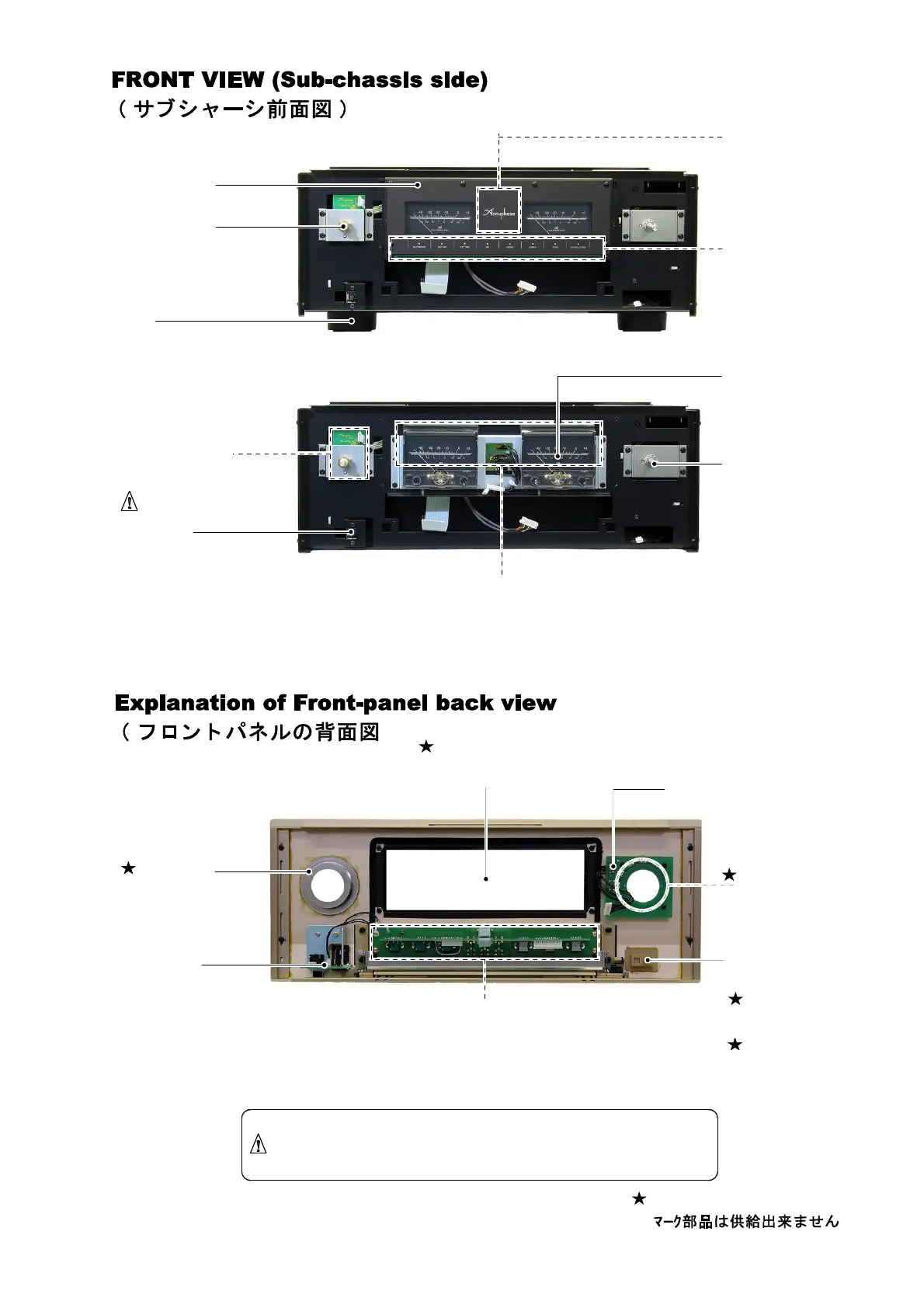

Accuphase E-550 - FRONT VIEW (Sub-chassis side); Sub-chassis Front View Component Identification; Explanation of Front-panel back view; Front Panel Back View Component Identification

Power Push Switch
ﾊﾟﾜｰｽｲｯﾁ
(354-1023-00)
Variable Resistor
可変抵抗器/VR1:10kΩ-A
(575-2026-00)
Volume Assembly
ﾎﾞﾘｭｰﾑ Ass'y
(716-0732-00)
Rotary Switch
ﾛｰﾀﾘｽｲｯﾁ / S1
(339-0002-00)
Input Selector Assembly
ｲﾝﾌﾟｯﾄｾﾚｸﾀ Ass'y
(716-0734-00)
Power Meter
ﾊﾟﾜｰﾒｰﾀ
(178-2041-00)
Pilot LED
ﾊﾟｲﾛｯﾄLED/D1
(SDPW3DG0B0-J)
Receiver Assembly
受光器Ass'y
(721-0082-00)
Selector LED Assembly
ｾﾚｸﾀLED Ass'y
(723-0118-00)
Foot
脚
(238-0023-00)
－４－
Attention mark indicating critical components for safety.
Replacement must be made with identical parts of special part number.
このマークのついている部品は、安全上重要な部品です。
必ず指定されている部品番号の部品を使用して下さい。
Knob Base
台座 /VOLUME
(170-0071-04)
）
mark parts not supplied
Indicator
ｲﾝﾃﾞｨｹｰﾀ
(173-9084-03)
Meter Lamp Assembly
ﾒｰﾀﾗﾝﾌﾟ Ass'y
(723-0117-00)
Pilot Lamp
ﾊﾟｲﾛｯﾄﾗﾝﾌﾟ/PL1,2,3,4
(176-4501-10)
Display Ass'y
ﾃﾞｨｽﾌﾟﾚｲAss'y
(723-0116-00)
Selector LED Assembly
ｾﾚｸﾀLED Ass'y
(723-0118-00)
Knob Base
台座 /INPUT
(170-0070-13)
Push Button/POWER
ﾌﾟｯｼｭﾎﾞﾀﾝ
(388-5062-03)
Push-button Frame
ﾌﾟｯｼｭﾎﾞﾀﾝﾌﾚｰﾑ
(113-0130-04)
Coil Spring
ｺｲﾙｽﾌﾟﾘﾝｸﾞ
(285-1016-04)
Head Phone
Assembly
ﾍｯﾄﾞﾎﾝAss'y
(716-0733-00）
Head phone Jack
ﾍｯﾄﾞﾎﾝｼﾞｬｯｸ
(302-1204-00)
Switch Assembly
ｽｲｯﾁ Ass'y
(716-0730-00)
Push Switch
ﾌﾟｯｼｭｽｲｯﾁ/6pcs.
(354-1111-00)
Front Glass
ﾌﾛﾝﾄｶﾞﾗｽ
(172-0140-03)
