Accuphase E-550 User Manual

-８-
Mother Bord
A
ssembly (716-0729-00)
Ass'y
RELAY1
Heat Sink 240-0088-04
ﾋｰﾄｼﾝｸ
Connector Jack K7 307-2501-00
ｺﾈｸﾀｼﾞｬｯｸ
Connector Plag K2,16 308-0206-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K3 308-0610-00
K4 308-1206-00
K5,6 308-2006-00
K9,10,11,12 308-1026-00
K13 308-0805-00
K15 308-1010-00
Connector Ass'y K1 309-2673-04
ｺﾈｸﾀAss'y K8 309-1232-04
K14 309-3461-04
K17,18 309-1075-04
Diode D1,2,4,5 11EQS10
ﾀﾞｲｵｰﾄﾞ D3 D2SBA60
D7,8,9,10,11 MA165
Zener Diode D6 HZ153L
ﾂｪﾅｰﾀﾞｲｵｰﾄﾞ
Transistor Q1 2SC4685
ﾄﾗﾝｼﾞｽﾀ
Digital Transistor X1 RN2204
ﾃﾞｼﾞﾀﾙﾄﾗﾝｼﾞｽﾀ
IC IC1,4 UPC24M05AHF
IC2 NJM79M15FA
IC3 NJM78M15FA
IC5,6,7 TD62C851P
IC8 TC74HC14P
IC9 TC74HC132AP
IC Protector F1,3 310-8152-00
ICﾌﾟﾛﾃｸﾀ F2,4 310-8202-00
Reray RELAY1 362-1212-00
ﾘﾚｨ
Electorlytic Capacitor C1,3 CE04W1A472VK 4700uF/10V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C2 CE04W1E472VK 4700uF/25V
C4,5 CE04W1E222KMG 2200uF/25V
C6 CE04W1V470VK 47uF / 35V
C7 CE04W1C471VK 470uF /16V
C12,13 CE04W1C221CAE 220uF /16V
C14 CE04W1E101VK 100uF /25V
C15 CE04W1C220VRE 22uF / 16V
Ceramic Capacitor C8～11,16～20 CK92Y5V1H104Z 0.1uF/50V
磁器ｺﾝﾃﾞﾝｻ C21,22 CC14CH1H221JS 220pF/50V
Carbon Film Resistor R1 RD142CA332J 3.3kΩ 1/6W
炭素皮膜抵抗器 R2 RD142CA101J 100Ω 1/6W
R3,4 RD142EA303JFS 30kΩ 1/4W
R5 RD142CA472J 4.7kΩ 1/6W
R6 RD142CA102J 1kΩ 1/6W
R7～10 RD142CA103J 10kΩ 1/6W

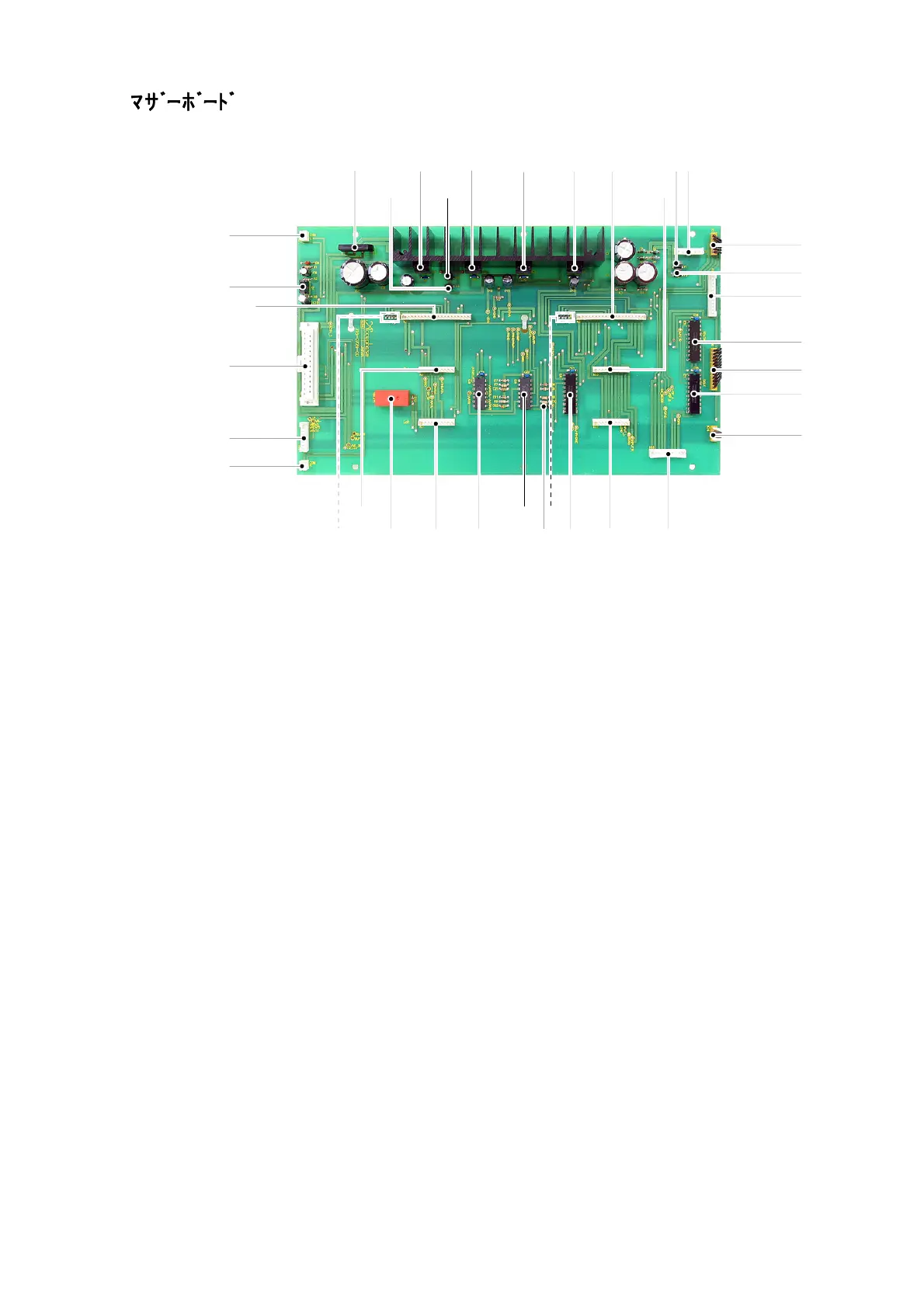

K2
K3
Q1
K1
K4
K15
K12
K18
K13
K7
K5
K16
K17
K9
IC8
IC9
IC
IC6
X1
F3
F1
F2
F4
K6
IC3
IC2IC1
D3
IC4
K10
K11
K8
K14
IC7
IC5
