Accuphase E-550 User Manual

I
V
A
ssembly (713-0014-00)
IV Ass'y
-７-
Connector Plug K5 308-0432-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K6 308-0433-00
Fuse Holder FH1,2 306-2001-00
ﾌｭｰｽﾞﾎﾙﾀﾞ
Tabu Terminal K7,8,9 314-0536-00
ﾀﾌﾞ端子
Relay RELAY1 362-4102-00
ﾘﾚｨ
Diode D1 S1ZB20
ﾀﾞｲｵｰﾄﾞ
Electorlytic Capacitor C2 CE04W1H330VK 33uF / 50V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ
Metallized Film Capacitor C1 CF99MF2E473MR46 0.047uF/250V
MPｺﾝﾃﾞﾝｻ
Fuse Resistor R1 RF142EA47J 4.7Ω 1/4W
ﾌｭｰｽﾞ抵抗 R6,7 RF993HG2R2J 2.2Ω
Metal Plate Resistor R2,3,4,5 RW994AJ3R3J-S 3.3Ω 1/6W
金属板抵抗器

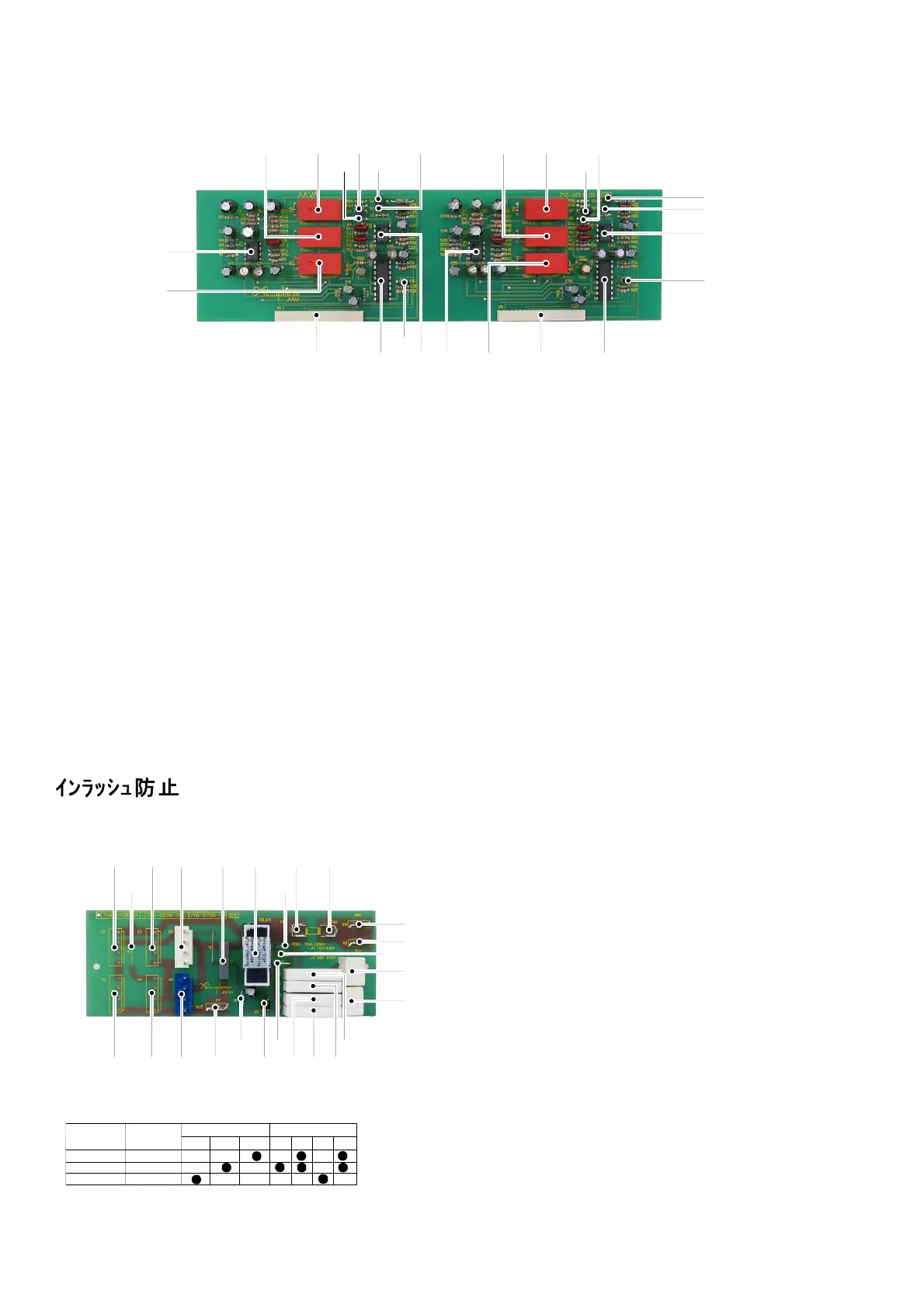

In-rush Protector Assembly D type (716-0728-01)
Ass'y
U/T type (716-0728-02)
E type (716-0728-03)
Connector Jack K1,2 307-2007-00
ｺﾈｸﾀｼﾞｬｯｸ
Relay RELAY1～6 362-1212-00
ﾘﾚｨ
Diode D1～12 MA165
ﾀﾞｲｵｰﾄﾞ
Transistor Q2,7 2SC2547-D/E
ﾄﾗﾝｼﾞｽﾀ Q4,9 2SA1085-D/E
FET Q1,3,6,8 2SK330-Y
Q5,10 2SK2541
IC IC1,3,4,6 NJM4580D-D
IC2,5 DG441CJ
Electorlytic Capacitor C1,9,25,32 CE04W1A221VK 220uF/100V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C2,26 CE04W1E100VRE 10uF / 25V
C3,5,10,27,29,34 CE04W1A471VK 470uF/100V
C4,7,28,31 CE04W1E220AVH 22uF / 25V
C6,30 CE04W1H4R7VK 4.7uF /50V
C11,15,23,24,35,36,45,46 CE04W1C220VRE 22uF / 16V
C17,41 CE04W1C101KW 100uF /16V
C18,19,42,43 CE04W1E390LXVE 39uF / 25V
Polyester Capacitor C8,33 CQ922M1H473J-B 0.047pF/50V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ C13,14,38,39 CQ922M1H101K-B 100pF /50V
C22,48 CQ922M1H223J-B 0.022pF/50V
Ceramic Capacitor C20,44 CC14CH1H120JS 12pF / 50V
磁器ｺﾝﾃﾞﾝｻ C21,47 CC14CH1H101JS 100pF / 50V
R1,7,10,15,16,35,41,44,49,50 RD142CA102J 1kΩ 1/6W
R2,9,36,43 RD142CA681J 680Ω 1/6W
R5,39 RD142CA471J 470Ω 1/6W
Carbon Film Resistor R6,40 RD142CA271J 270Ω 1/6W
炭素皮膜抵抗器 R8,42 RD142CA431J 430Ω 1/6W
R14,48 RD142CA152J 1.5kΩ 1/6W
R17,51 RD142CA301J 300Ω 1/6W
R18,27,52,61 RD142EA100JFS 10Ω 1/4W
R19,53 RD142CA470J 47Ω 1/6W
R20,21,54,55 RD142CA101J 100Ω 1/6W
R24,25,58,59 RD142CA4R7J 4.7Ω 1/6W
R26,29,30,32,34,60,63,64,66,68 RD142CA103J 10kΩ 1/6W
R28,62 RD142HA120JFS 12Ω 1/4W
R31,33,65,67 RD142CA472J 4.7Ω 1/6W
Metal Film Resistor R3,4,11,12,37 RN142CK1331F 1.33kΩ 1/6W
金属皮膜抵抗器 38,45,46
R13,47 RN142CK6040F 604Ω 1/6W
R22,23,56,57 RN142CK4121F 4.12kΩ 1/6W
RE1LA2
RELAY1
IC1
K2
K1
IC2
RELAY6
RELAY5
RELAY4
RELAY3
RELAY2
IC3
IC4
Q5
Q10
Q8
Q9
Q7
IC5
IC6
IC3
Q6
Q2
Q3
Q4
Q1
K2
K4
D1
RELAY1
K1
K3
K5
K6
C1
FH1
FH2
K9
K8
K7
R2
R3
R5
R6
R7
R4
R1
Connector/ｺﾈｸﾀ Jumper/ｼﾞｬﾝﾊﾟｰ
K1,2 K3,4 K5,6 J1 J3 J4 J5
716-0728-01 100V (D)
716-0728-02 120V (U)
716-0728-03 220-240V(E)
J1
J5
J4
J3
Ass'y No. Voltage
