Accuphase E-550 User Manual

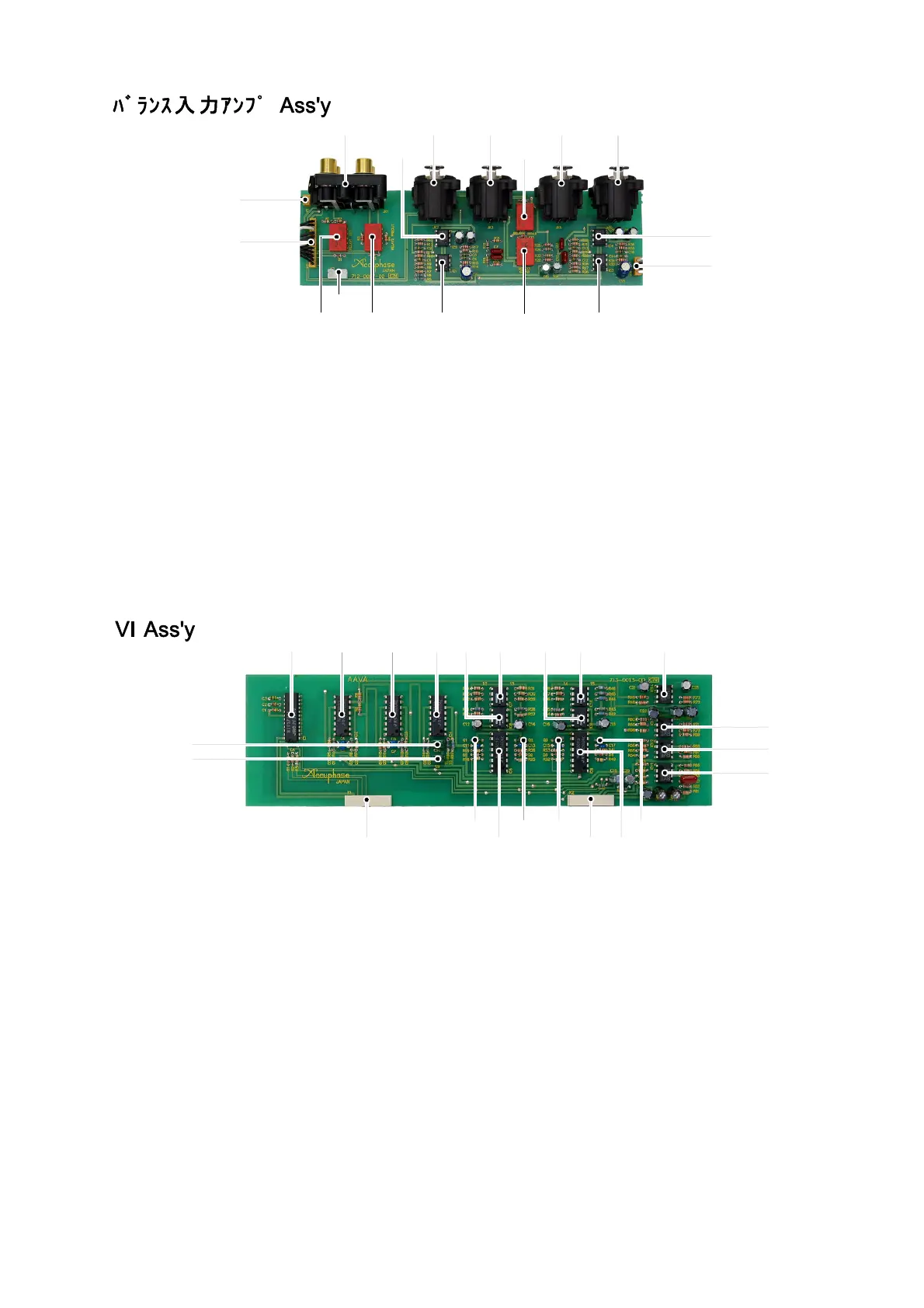

Balance Input
A
mp
A
ssembly (712-0097
-
00)
Diode D1～4 MA165
ﾀﾞｲｵｰﾄﾞ
Ceramic Capacitor C1,2,4,5,12～14,16 CC14CH1H101JS 100pF/50V
磁器ｺﾝﾃﾞﾝｻ
Electrolytic Capacitor C3,15 CE04W1E101LXZE 100uF/25V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C8,9 CE04W1E470CZE 22uF /25V
C17,18,19,20 CE04W1C101VRE 100uF/16V
Polyester Capacitor C6,7,10,11 CQ922M1H221K-B 220pF /50V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ
Carbon Film Resistor R1,2 RD142CA104J 100kΩ 1/6W
炭素皮膜抵抗器 R3,4 RD142CA222J 2.2kΩ 1/6W
R5,6 RD142EA100JFS 10Ω 1/4W
R7,20～22,25,26 RD142CA203J 20kΩ 1/6W
R9,10,15,17,28,30,34,36 RD142CA221J 220Ω 1/6W
R11～13,16,29,31,32,35 RD142CA511J 510Ω 1/6W
-６-
Pin Jack JK1 302-0412-00
ﾋﾟﾝｼﾞｬｯｸ
XLR(Cannon)Receptacle JK2～5 302-8011-00
ｵｰﾃﾞｨｵｺﾈｸﾀｼﾞｬｯｸ
Connector Ass'y K1 309-2269-04
ｺﾈｸﾀAss'y K2 309-1231-04
K4 309-3460-04
Connectr Plug K3 308-0407-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Relay RELAY1～4 362-1202-00
ﾘﾚｨ
IC IC1～4 NJM5532D-D
Carbon Film Resistor R1,2,56,57 RD142CA102J 1kΩ 1/6W
炭素皮膜抵抗器 R3,8,62 RD142CA101J 100Ω 1/6W
R5 RD142CA474J 470kΩ1/6W
R7 RD142CA823J 82kΩ 1/6W
R9,52,54,58,64,66,69 RD142CA103J 10kΩ 1/6W
R10 RD142CA203J 20kΩ 1/6W
R11 RD142CA105J 1MΩ 1/6W
R13 RD142CA514J 510kΩ1/6W
R18,19,25,26,32,33,40,41,50 RD142CA104J 100kΩ1/6W
R20,22～24,27,29～31,37,38 RD142CA511J 510Ω 1/6W
R34,36 RD142CA751J 750Ω 1/6W
R39,47 RD142EA100JFS 10Ω 1/4W
R48,49,72,73 RD142CA332J 3.3kΩ1/6W
R51,55,59,63,67,70 RD142CA331J 330Ω 1/6W
R53,60,65,68,71 RD142CA100J 10Ω 1/6W
R61 RD142CA273J 2.7kΩ1/6W
Metal Film Resistor R4 RN142CK1743F 174kΩ 1/6W
金属皮膜抵抗器 R6 RN142CK4022F 40.2kΩ1/6W
R12 RN142CK2553F 255kΩ 1/6W
R14 RN142CK1273F 124kΩ 1/6W
R15 RN142CK6342F 63.4kΩ1/6W
R16 RN142CK1582F 15.8kΩ1/6W
R17 RN142CK3162F 31.6kΩ1/6W
R21 RN142CK8061F 8.6kΩ 1/6W
R28 RN142CK4021F 4.02kΩ1/6W
R35 RN142CK2941F 2.91kΩ1/6W
R42,44 RN142CK7680F 768Ω 1/6W
R43 RN142CK1541F 1.54kΩ1/6W
R45,46 RN142CK4990F 499Ω 1/6W
Connector Jack K1,2 307-1012-00
ｺﾈｸﾀｼﾞｬｯｸ
IC IC1 NJU3716L
IC2,3,4,5,8 NJU7301D
IC6,7,9,10 OPA2228PA
IC11,12,13 NJM5532D-D
IC14 NJM2119D
Diode D1,2,3,4 MA165
ﾀﾞｲｵｰﾄﾞ
FET Q1,2,3,4 2SK2541
Ceramic Capacitor C1,2 CC14CH1H221JS 220pF/50V
磁器ｺﾝﾃﾞﾝｻ C3 CC14CH1H151JS 151pF/50V
C4～8,11,13,15,17 CK92Y5V1H104Z 0.1uF/50V
Electrolytic C12,14,16,18,23,26 CE04W1C220VRE 22uF /16V
Capacitor C19,20 CE04W1E470CZE 47uF /25V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C21,28,29 CE04W1H2R2VK 2.2uF/50V
C22 CE04W1V100VRE 10uF /35V
C24,25 CE04W1E220AVH 220uF/25V
Polyester Capacitor C9,10 CF922MF2E104KDAZ 0.1pF/250V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ
Polypropylen Capacitor C27 CQ93PP2A102JM-F 1,000pF/100V
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ
VI Assembly (713-0013-00)
RELAY
1
RELAY4
JK5
K4
IC3
IC4
IC2
K1
K2
K3
JK4
JK3
JK2
JK1
Q4
C9
Q3
Q2
IC2
IC1
IC3
K1
C10
Q1
IC4
IC5
IC6
IC7
K2
IC8
IC10IC9
IC11
IC12
IC13
IC14
RELAY2 RELAY3
IC1
