Section 3: Programming
3.1 Navigation Buttons
• To program the settings the programming switch must be in the PROG position.
o As of V.4.03.IS leave the switch in RUN position and just press the center button.
• The LED display will show CONFIG.
• There are 5 buttons. Up, down, left, right, and Select/Enter.
• Use the up and down buttons to select a specific menu or option.
• To change a value, press Select/Enter to enter Edit mode. Up/Down will increment or
decrement your value. Left/Right will let you shift the cursor to the side. The numbers cycle
through 0-9 including a period for decimal values. Press the Select/Enter button again to exit the
edit mode.
• To save and run, keep navigating through the menu until you reach the main menu. There, you
will be able to select either SAVE/RUN or UNDO/RUN. Press the Select/Enter button.
• The display will read SWTCHOFF. Return the programming switch into the RUN position.

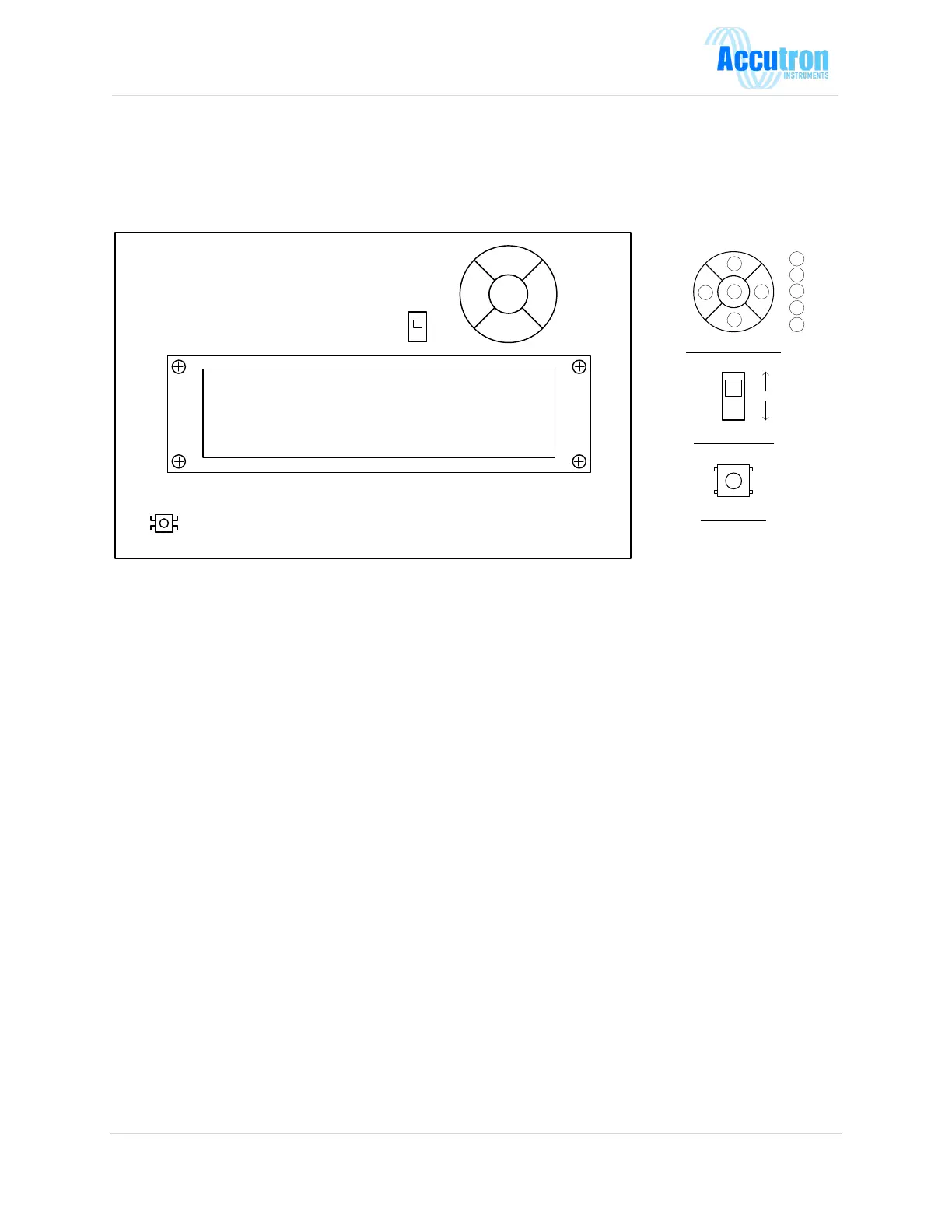

Program Switch
Navigation Buttons
Run
Program
Select / Enter
Up
Down
Left
Right
1
4
5
3
2
3
2
1
4
5
Reset Button
(Bottom left of display board)
To Next Page
