5-38 Service and Maintenance

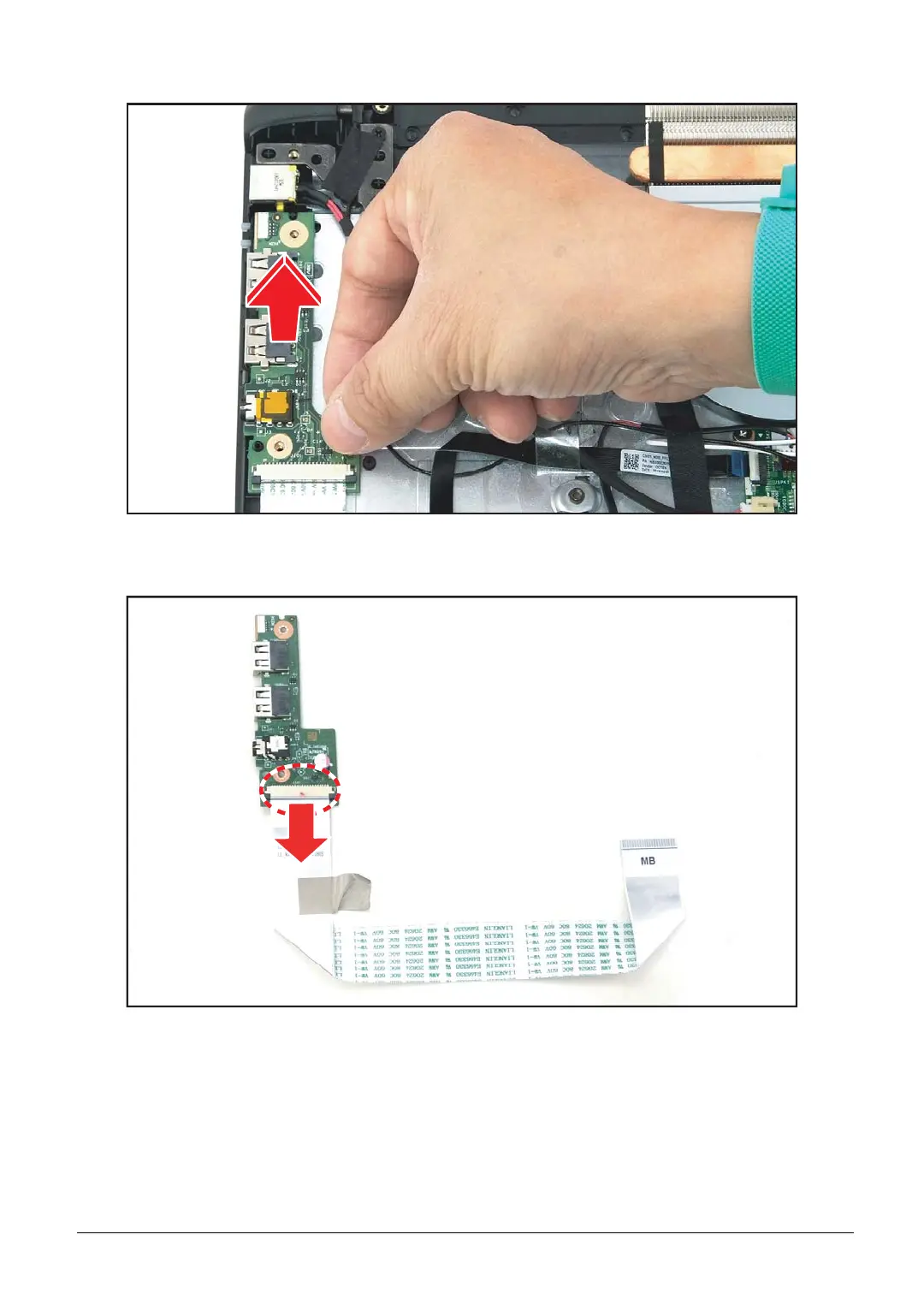

3. Lift to remove the USB board from the upper case.
Figure 5-52. Removing the USB Board
4. Release the latch and disconnect the USB board FFC from the USB board connector.
Figure 5-53. Removing the USB Board FFC
