Service and Maintenance 5-65
RTC Battery Removal
Prerequisite:
Battery Removal on page 5-32

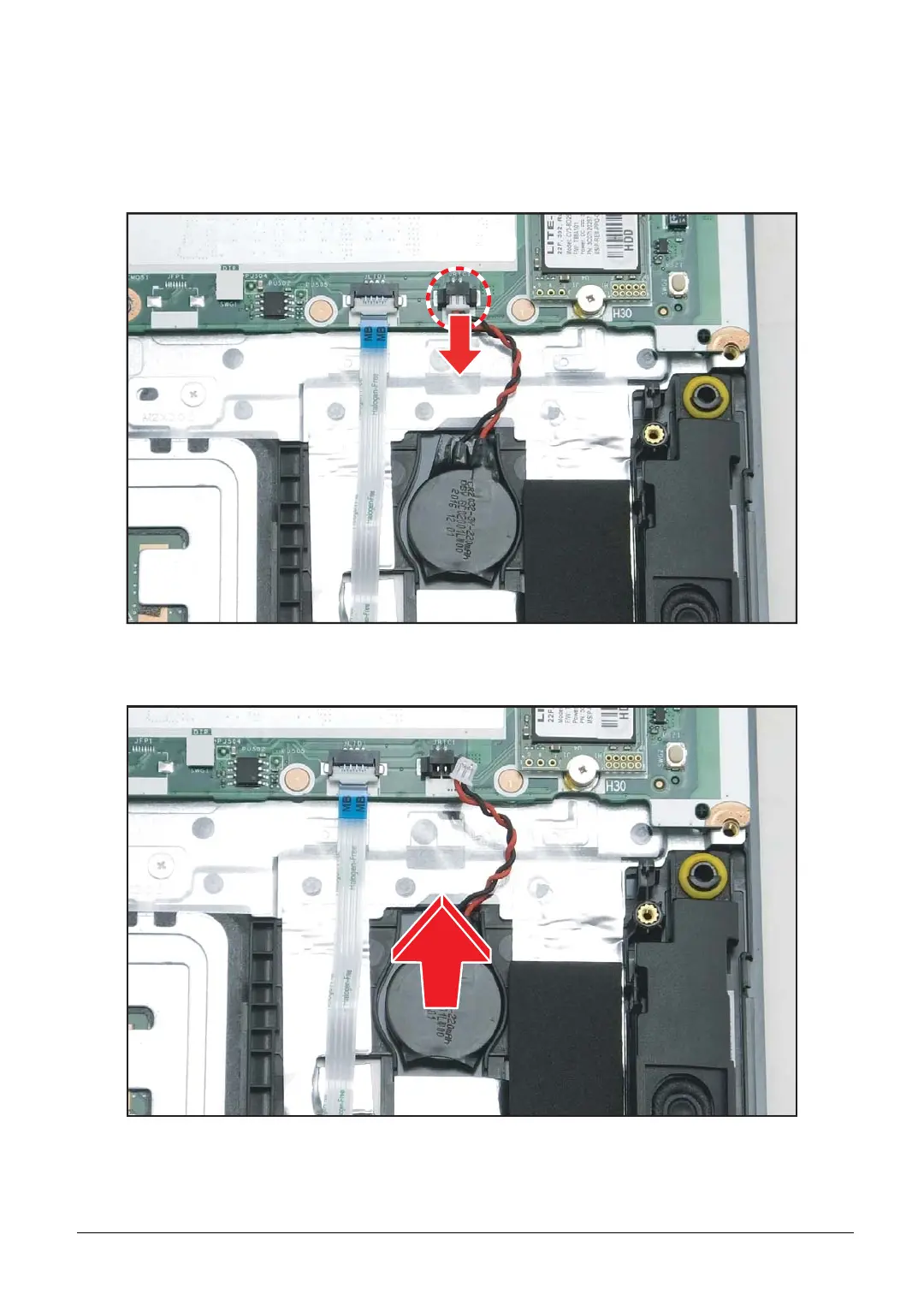

1. Disconnect the RTC battery cable from the mainboard connector.
Figure 5-96. Diconnecting the RTC Battery Cable
2. Pry to detach the adhesive tape underneath the RTC battery. Then remove the RTC battery.
Figure 5-97. Removing the RTC Battery
