Service and Maintenance 5-53
SSD Module Installation
1. Connect the SSD module to the mainboard connector.

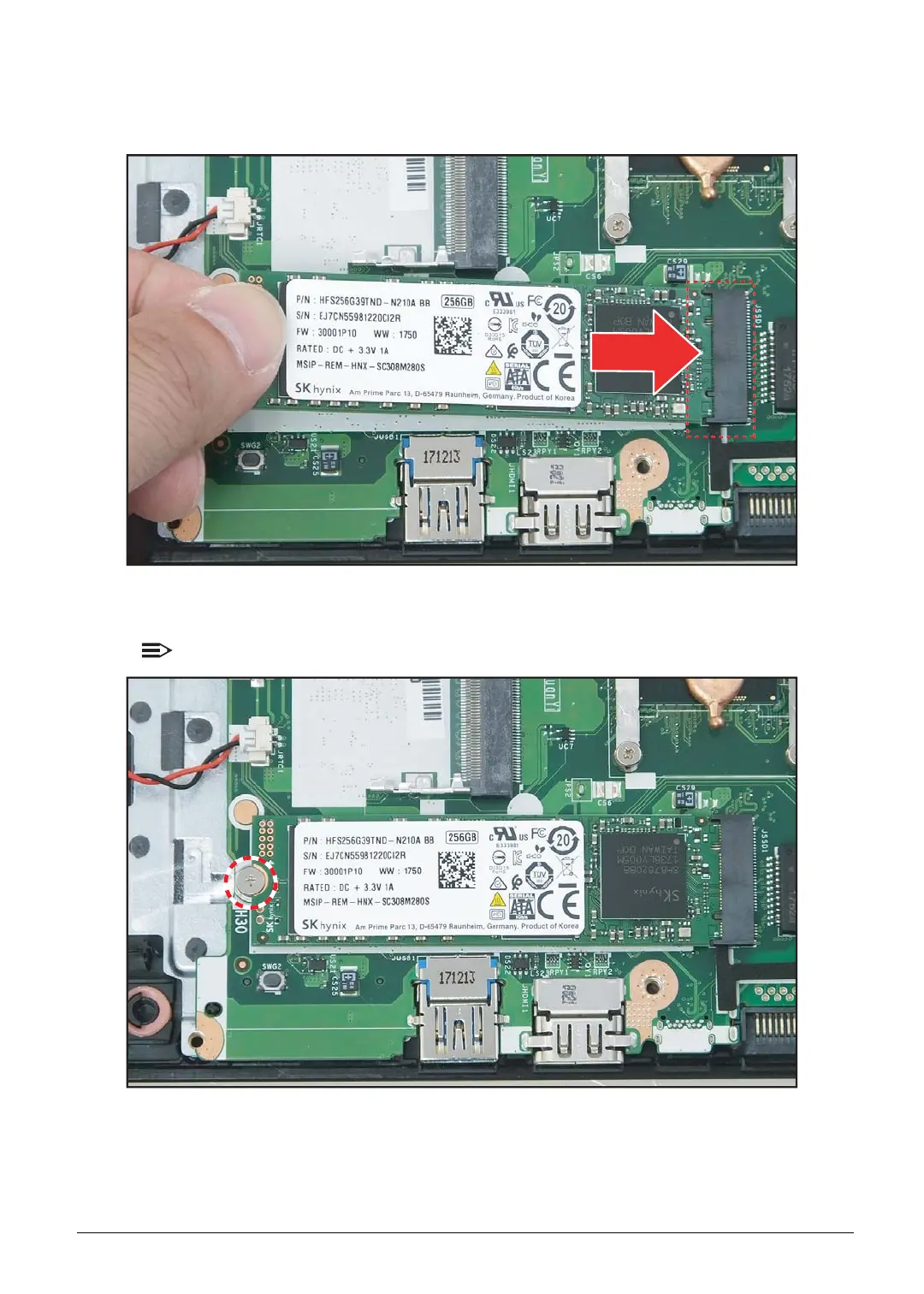

Figure 5-76. Connecting the SSD Module Connector
2. Attach the screw to secure the SSD module to the mainboard.
NOTE: Screw torque force = 1.8~2.2kgf.cm
Figure 5-77. Securing the Screw
3. Install the battery (see Battery Installation on page 5-34).
