3. Slightly pull the hall sensor board backwards to release it from the latches on the upper case.
Then remove the hall sensor board.

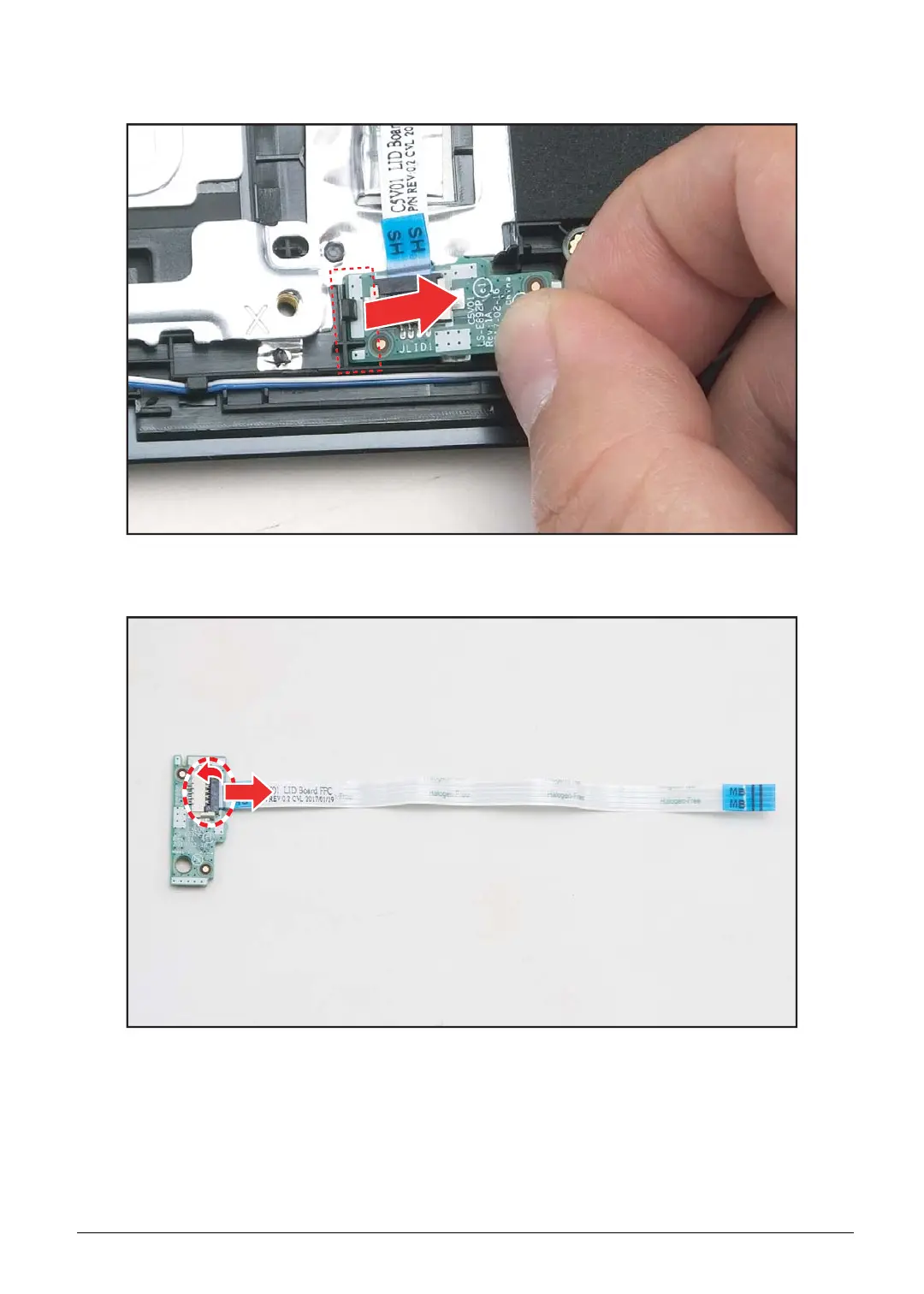

Figure 5-102. Removing the Hall Sensor Board (2 of 2)
4. Release the latch and disconnect the hall sensor FFC from the hall sensor board connector.
Figure 5-103. Removing the Hall Sensor FFC
