Acer AL1917

25
Machine Disassembly
This chapter contains step-by-step procedures on how to assemble the monitor for maintenance.

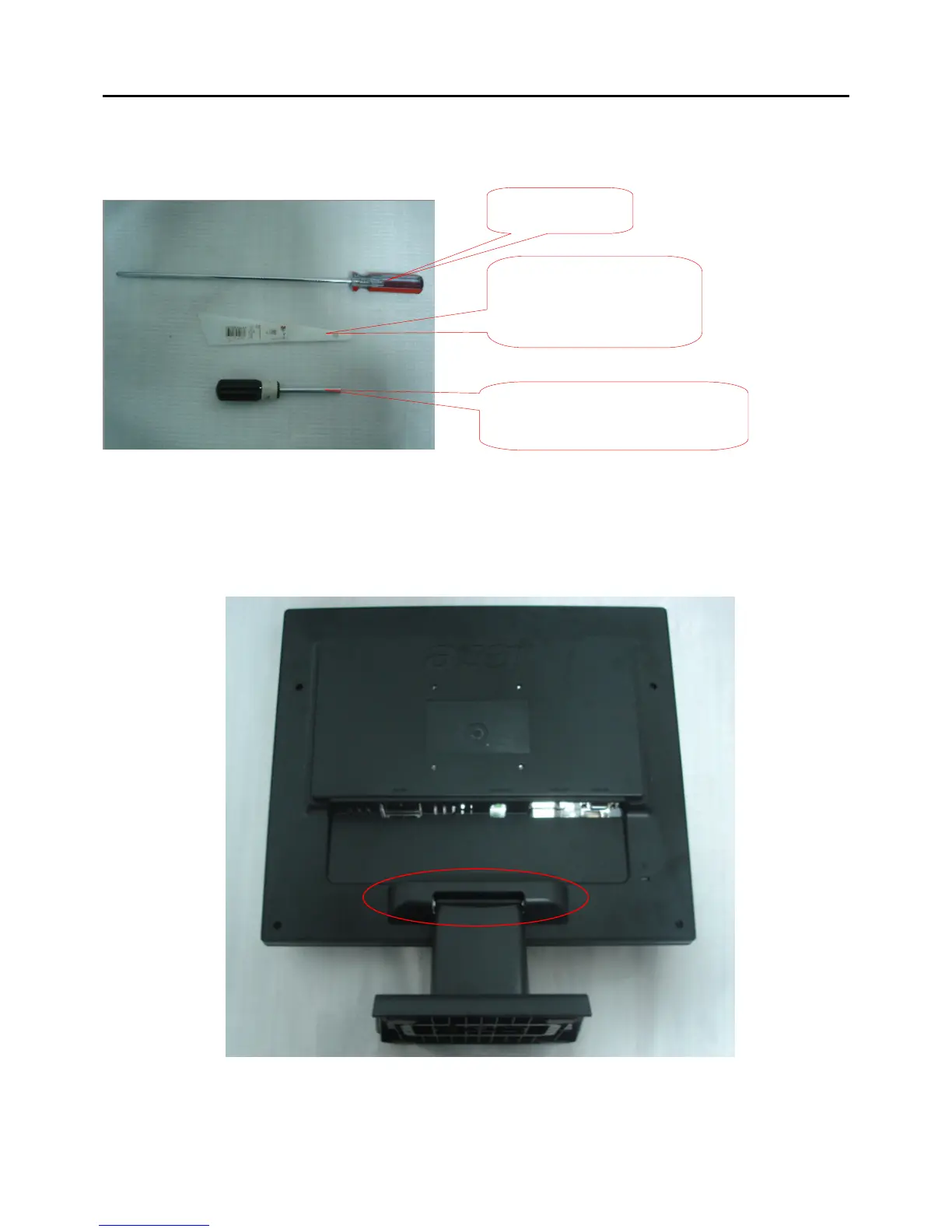

The tools for disassemble:
Disassembly Procedure
Disassemble the base
1. Remove hinge cover. (Fig 1-2)
2. Remove four screws mark in red to remove stand base. (Fig 3-4)
Fig (1)
Chapter 3
Resinous slice (Use to
separate the front cove
r
and the rear bezel )
Special tool (Be used to remove
the VGA/DVI SCREWS)
Screws-Driver
