Acer AL1917

29
Fig (9)

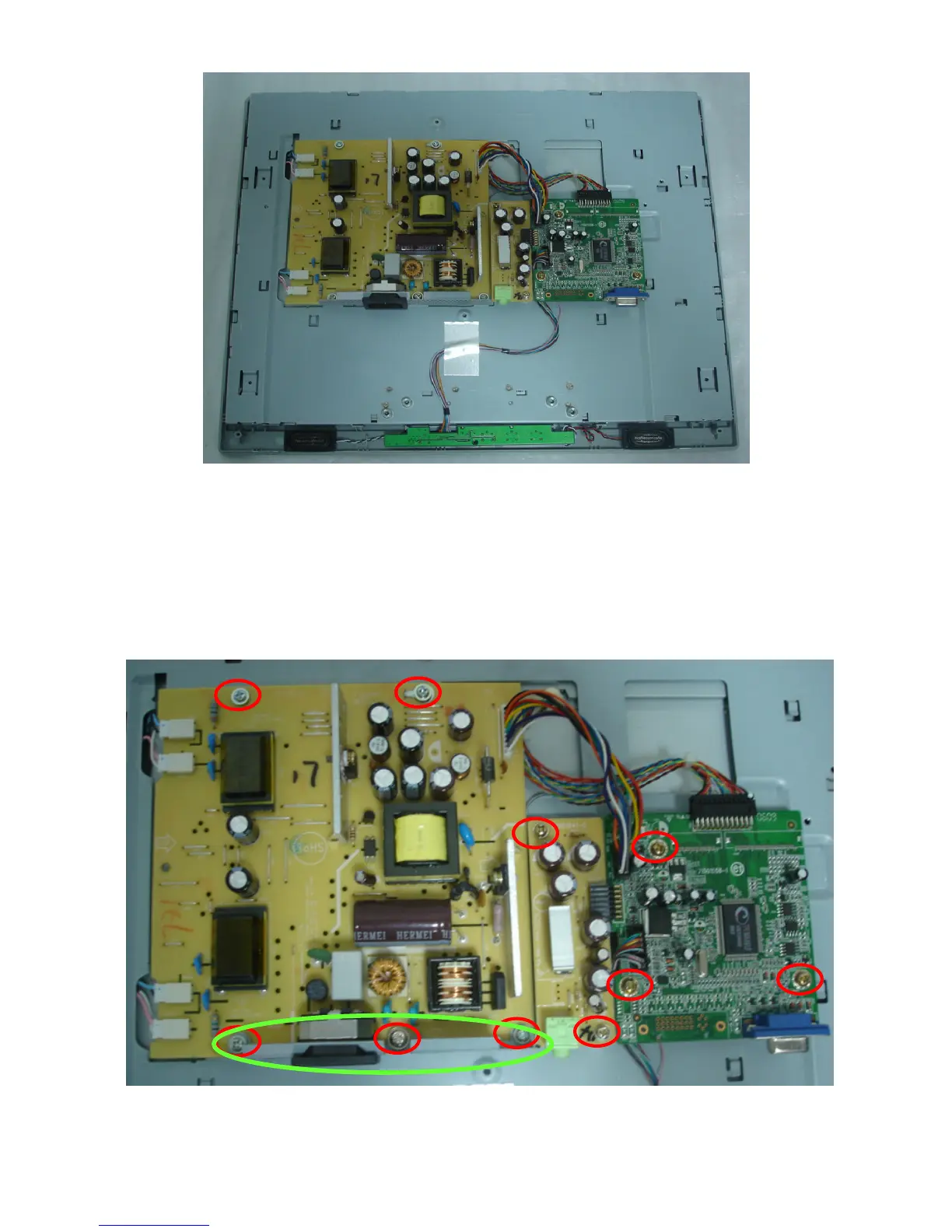

Disassemble the main board (Fig 10-12)
1. Remove three screws mark in red to remove main board.
2. Remove two screws mark in red to remove audio board.
3. Remove five screws mark in red and remove AC-BKT with green to remove Power board.
4. Remove connector wire with main, audio and power board.
Fig(10)
