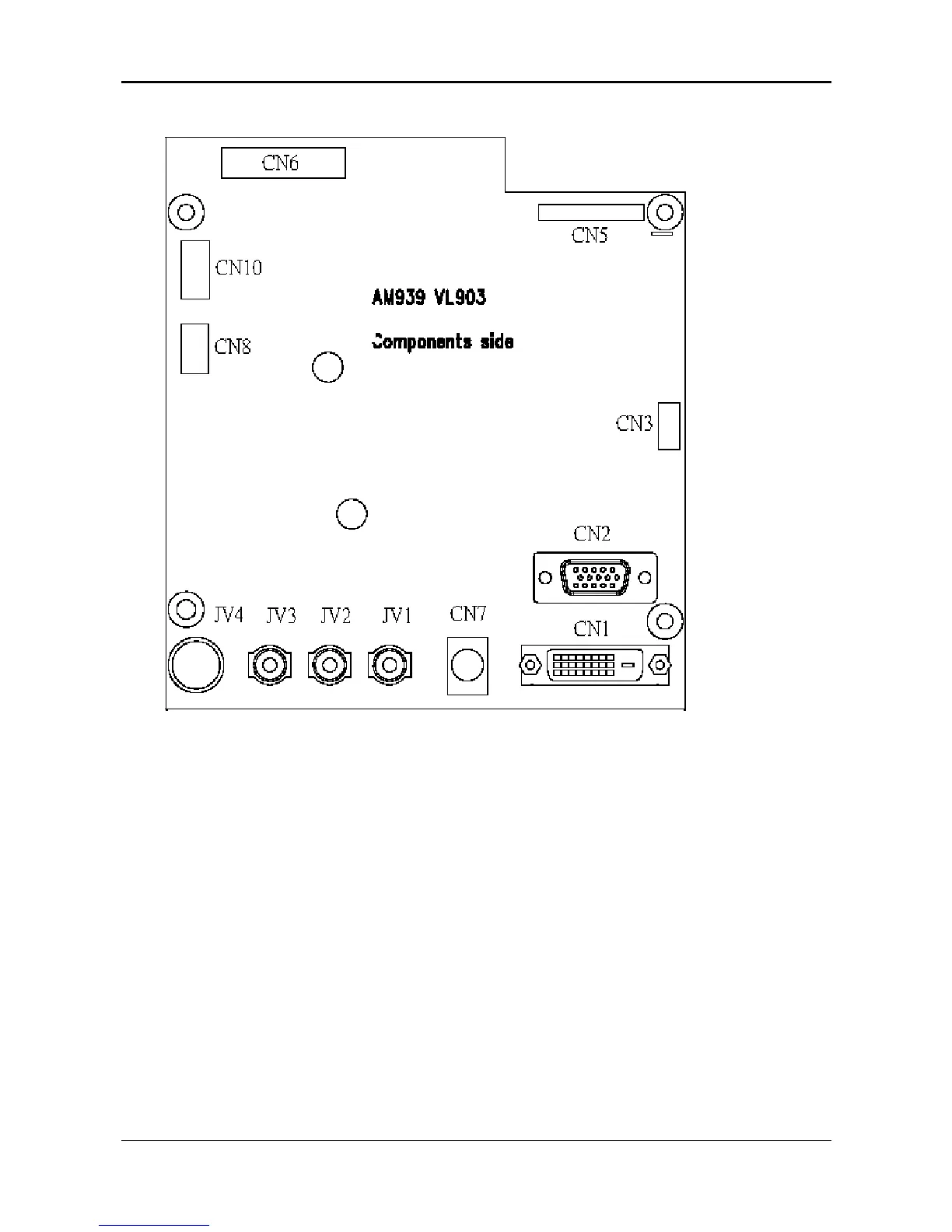

3.4 Connector Locations

3.5 Connector Type

Location Type Maker Number of pins

CN1 24P Female V/DVI-D Foxconn 24

CN2 15P Female V/D-Sub E&T 15

CN3 4300-04 E&T 04

CN5 98210-4011 E&T 40

CN6 4500-09 E&T 09

CN8 4300-05 E&T 05

CN10 4300-08 E&T 08

Default Chapter1
- Table of Contents1
1 Introduction3
- Scope3
- Description3
2 Electrical Requirements4
3 Vl-903 Display Control Board26
4 VK-903 Function Control Key Board32
5 Troubleshooting34
- Main Procedure34
6 Mechanical Requirements39
7 Power Line Transient Test (IEC 61000-4-4 Fast Transients/Burst)42
8 Power Line Surge Test (IEC 61000-4-5 Surge)45
9 Enviroment Requirement46
- Operating46
- Storage or Shipment46
10 Regulation Compliance47
- This Product Comply to the most Current Revisions of Following Regulations47
- Electrostatics Discharge (ESD)48
11 Quality and Reliability49
- Quality Assurance49
- Reliability49
Appendix A: Parts Lists50
Appendix B: Display Unit Assembly54
Appendix C: PCBA Assembly60
