41
6.5 Tilt Base Rotation
Tilt up 25 ± 2°/ down 5 ±2°
6.6 Plastic Material
Front Bezel ABS 94HB
Back Cover ABS 94HB
The Others ABS 94HB

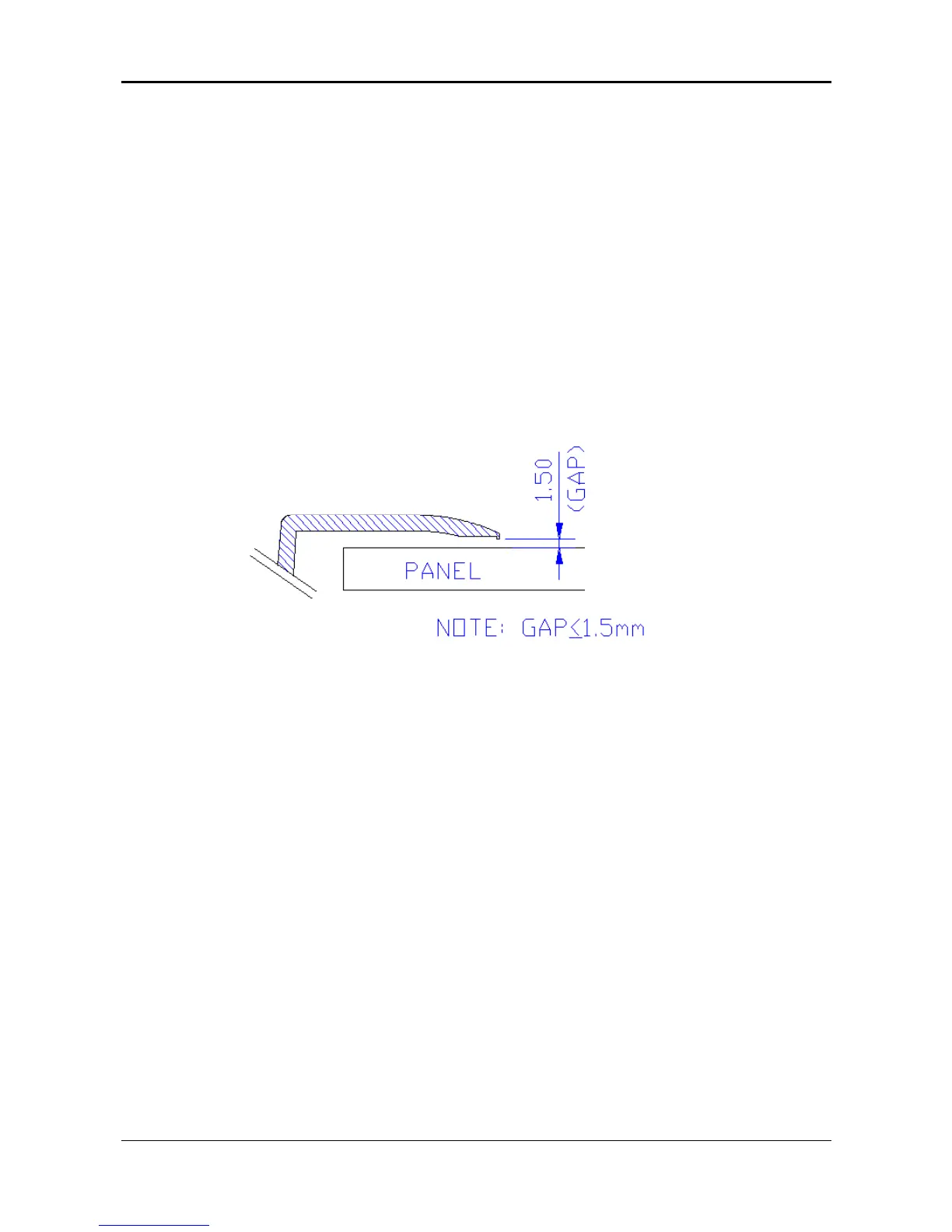

6.7 GAP Spec.
Gap between panel with bezel is 0 mm < gap < 1.5 mm
7. Power Line Transient Test (IEC 61000-4-4 Fast
Transients/Burst)
TEST CONDITIONS & PROCEDURE: (Follow IEC 61000-4-4)
Test Condition :
The condition is base on operating with 50Ω load.
7.1 Peak Voltage:
2 KV (applies the Level 3 typical Industrial Environment” of IEC
61000-4-4)
CM870-E18
