1.6 Reinstalling the Disk Drive Metal
Frame
1. Reinstall the drive frames with drive(s) to the housing. Secure the
metal frame with the required screw.

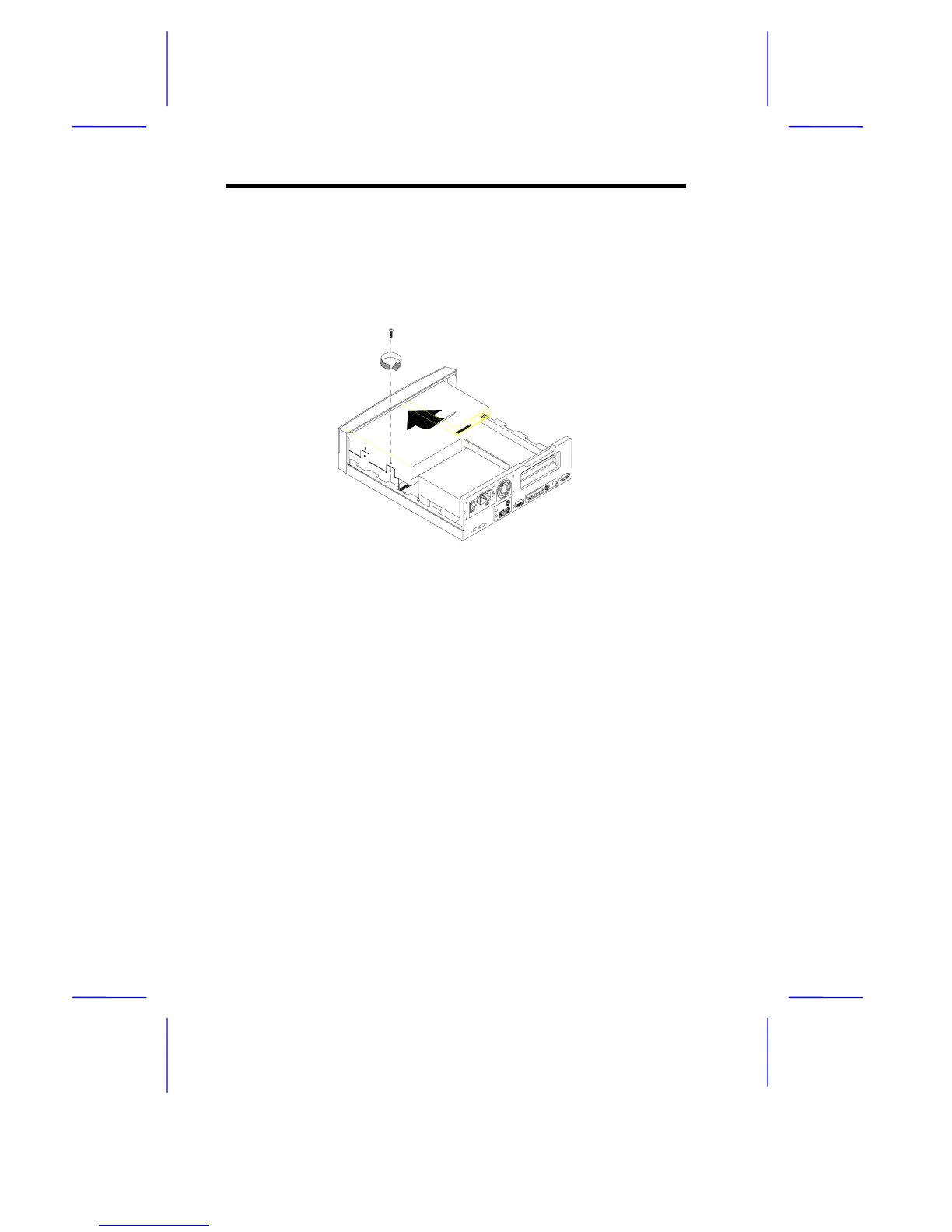

Figure 1-26 Reattaching the Disk Drive Metal Frame
2. Attach the power supply and drive cables. Make sure that the
hard disk drive cable is connected to the IDE1 connector on the
board.
