• WUXGA series (V6520/E6300/HT-810/HV532/TH-432/Z550/D1P1804/
D1P1718)

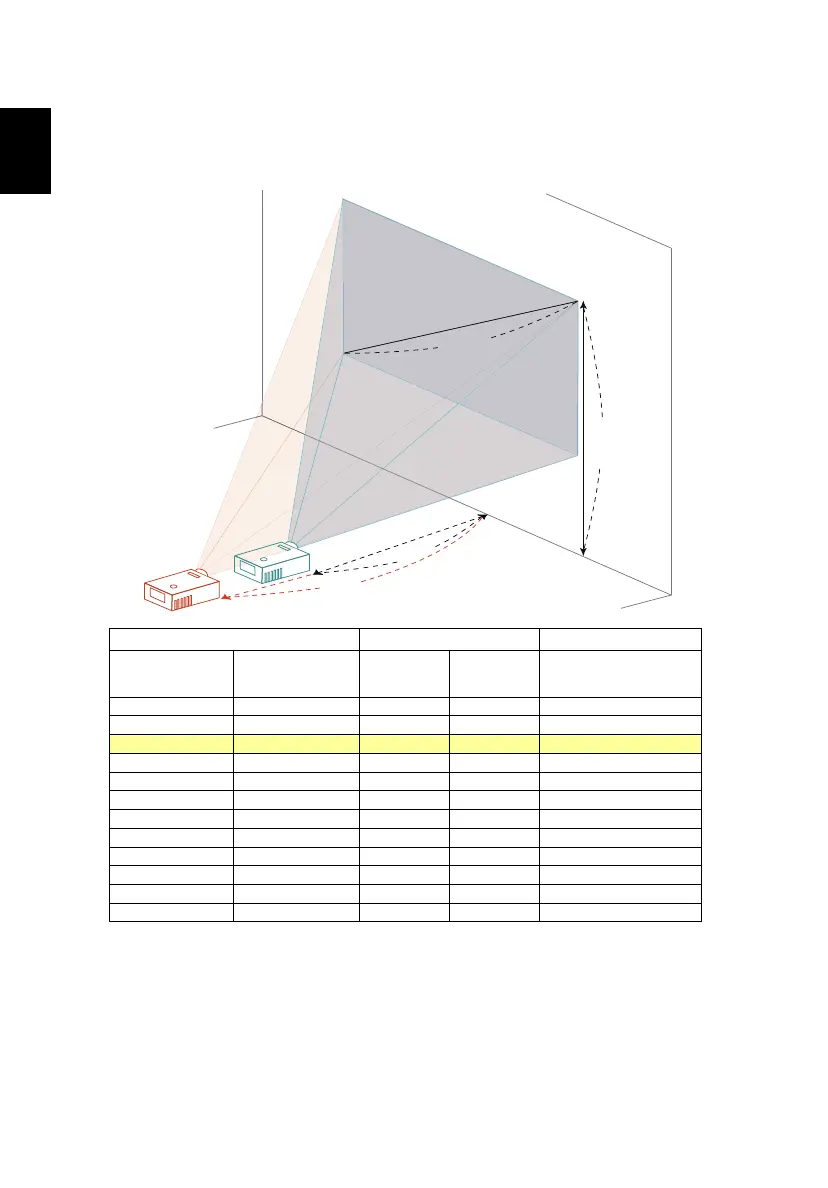

To obtain an image size of 60" set the projector at a distance 1.6 m and 2.1 m
from the screen.
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
<A>
W (cm) x H (cm)
Max zoom
<B>
Min zoom
<C>
From base to top of
<D>
40 86 x 54 1.0 1.4 59
50 108 x 67 1.3 1.7 74
60 129 x 81 1.6 2.1 89
70 151 x 94 1.8 2.4 104
80 172 x 108 2.1 2.7 118
90 194 x 121 2.3 3.1 133
100 215 x 135 2.6 3.4 148
120 258 x 162 3.1 4.1 178
150 323 x 202 3.9 5.1 222
200 431 x 269 5.2 6.8 296
250 538 x 337 6.5 8.6 370
300 646 x 404 7.8 10.3 444
Zoom Ratio: 1.3x
A
C
D
B
Desired Distance
2.1 m
1.6 m
Height: 89 cm
from base to top of
60"
Desired
image size
