• WXGA series (S1386WHN/S1386WH/S1388WHN/S1388WH/T421DT/T421D/
T423DT/T423D/XS-W31HG/XS-W31H/XS-W33HG/XS-W33H/F1386WHN/
F1386WH/F1388WHN/F1388WH/SE410L/SE410/SE412L/SE412/DS-310T/
DS-310/DS-312T/DS-312/DWX1711/DWX1734/DWX1809/DWX1737)

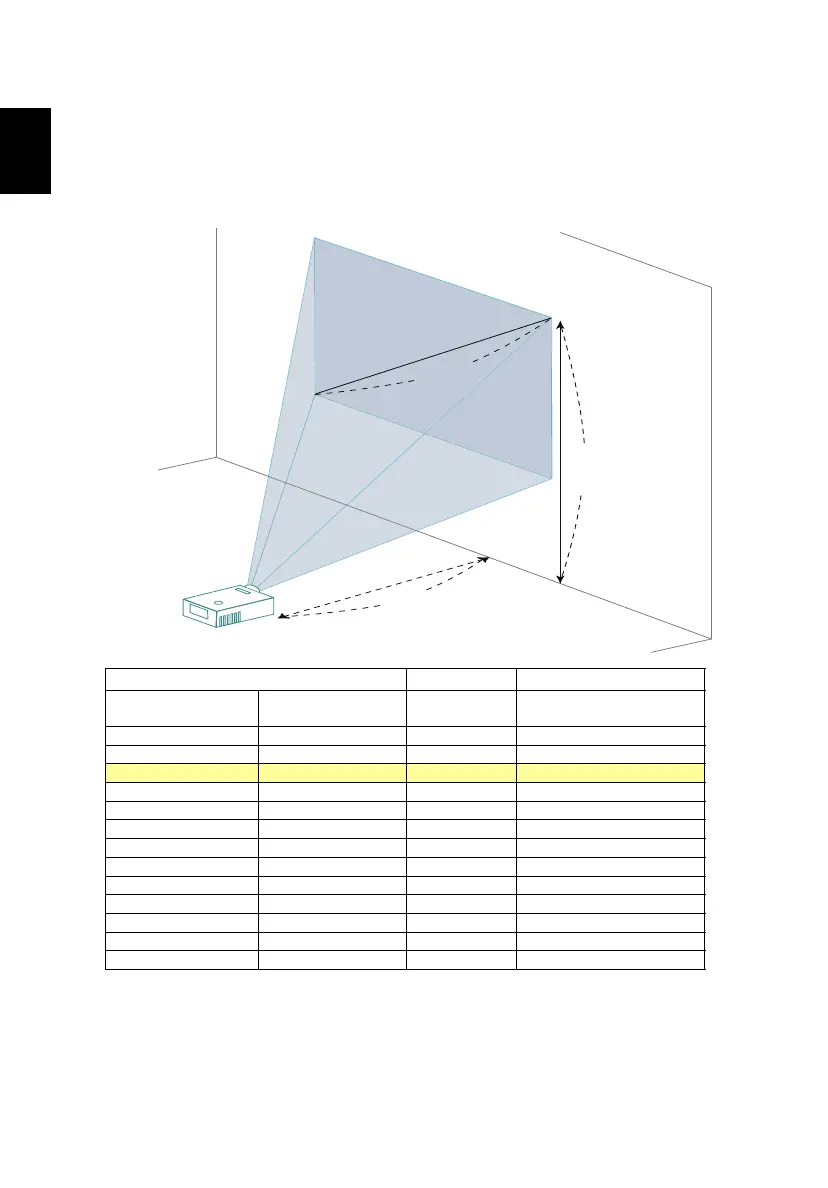

To obtain an image size of 60" set the projector at a distance 0.7 m from the
screen.
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
<A>
W (cm) x H (cm)
Max zoom
<B>
From base to top of image
<C>
36 78 x 48 0.4 54
50 108 x 67 0.6 76
60 129 x 81 0.7 91
70 151 x 94 0.8 106
80 172 x 108 0.9 121
90 194 x 121 1.0 136
100 215 x 135 1.1 151
120 258 x 162 1.3 182
150 323 x 202 1.7 227
180 388 x 242 2.0 272
200 431 x 269 2.2 303
250 538 x 337 2.8 378
303 653 x 408 3.4 458
Zoom Ratio: 1.0x
A
C
B
Desired Distance
0.7 m
Height: 91 cm
from base to top of
60"
Desired
image size
