Acer H7531D Series - Projector Overview; Projector Outlook

3
English

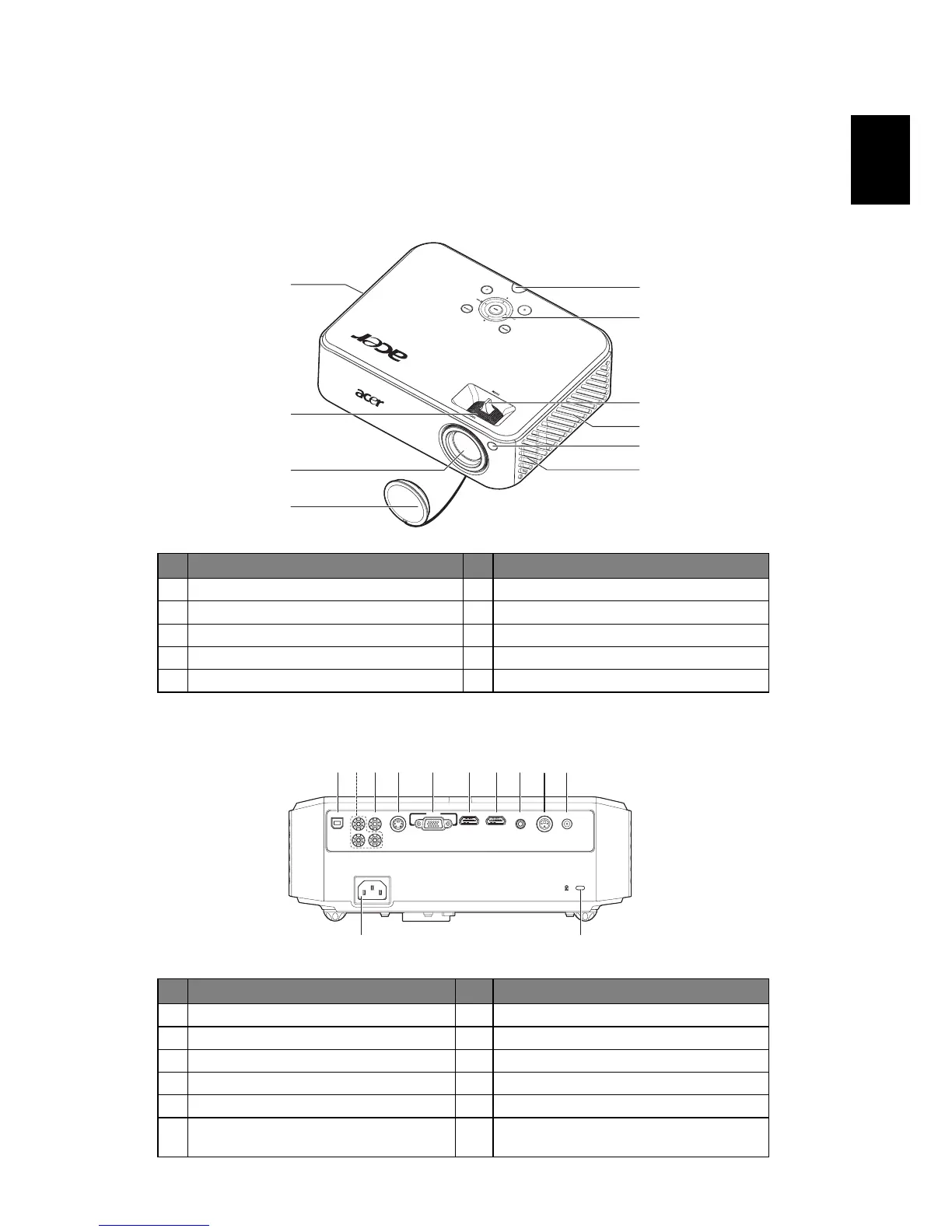

Projector Overview
Projector Outlook
Front / upper side
Rear side
# Description # Description
1 Ventilation (outlet) 6 Control panel
2 Focus ring 7 Zoom lever
3 Zoom lens 8 Ventilation (inlet)
4 Lens cap 9 Speaker
5 Remote control receiver
# Description # Description
1 Power socket 7 HDMI 1 connector
2 USB connector 8 HDMI 2 connector
3 YPbPr/YCbCr input connector 9 Audio input connector
4 Composite video input connector 10 RS232 connector
5 S-Video input connector 11 12V DC output connector
6 PC analog signal/HDTV/component
video input connector (VGA IN)
12 Kensington™ lock port
6
2
4
3
5
7
1
8
9
5
Pb/Cb
Pb/Cb
Pr/Cr
Pr/Cr
Y
S-VIDEO
S-VIDEO
VGA IN
VGA IN
HDMI 1
HDMI 1
HDMI 2
HDMI 2
AUDIO IN
AUDIO IN
RS232
RS232
DC OUT
DC OUT
VIDEO
VIDEO
USB
USB
112
234 5 6 7 8 9 1011
