Acer P1120 Series - Projector overview; Front; top; Rear

3
English
English

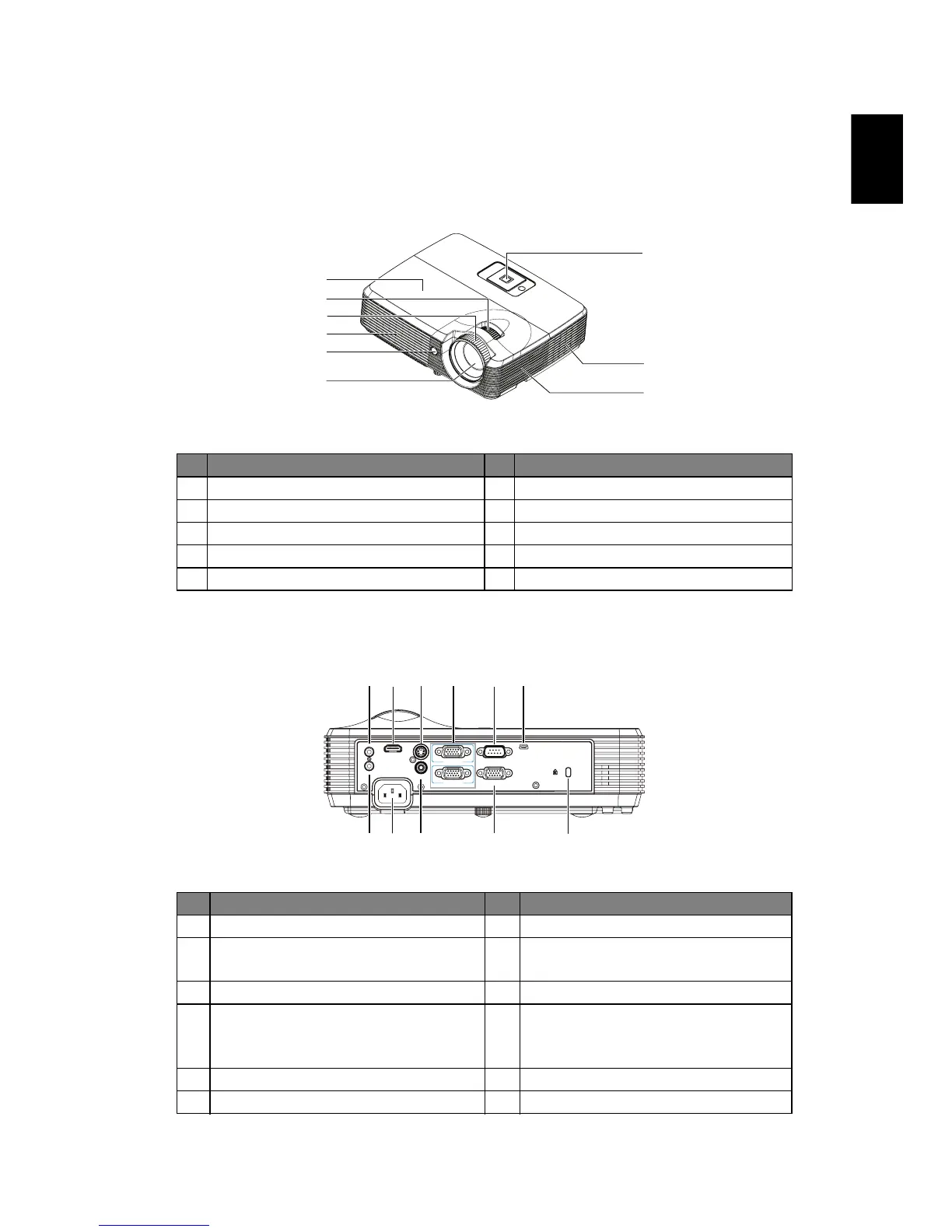

Projector overview
Front / top
Rear
# Description # Description
1 Lamp cover 6 Zoom lens
2 Zoom ring 7 Control panel
3 Focus ring 8 Ventilation (inlet)
4 Ventilation 9 Speaker
5 Remote control receivers
# Description # Description
1 Audio input connector 7 Kensington lock port
2 HDMI input connector 8 Monitor loop-through output
connector (VGA-OUT)
3 S-Video input connector 9 Composite video input connector
4 PC analog signal/HDTV/component
video input connector (VGA 1-IN or
VGA 2-IN)
10 Power socket
5 RS-232 connector 11 Audio output connector
6 Mini USB connector
6
2
3
4
5
1
1
7
8
9
RS-232
VGA-OUT
VIDEO
HDMI
MINI
USB
AUDIO IN
AUDIO OUT
12
3
4
5
6
7
8
9
10
11
VGA1-IN
VGA2-IN
