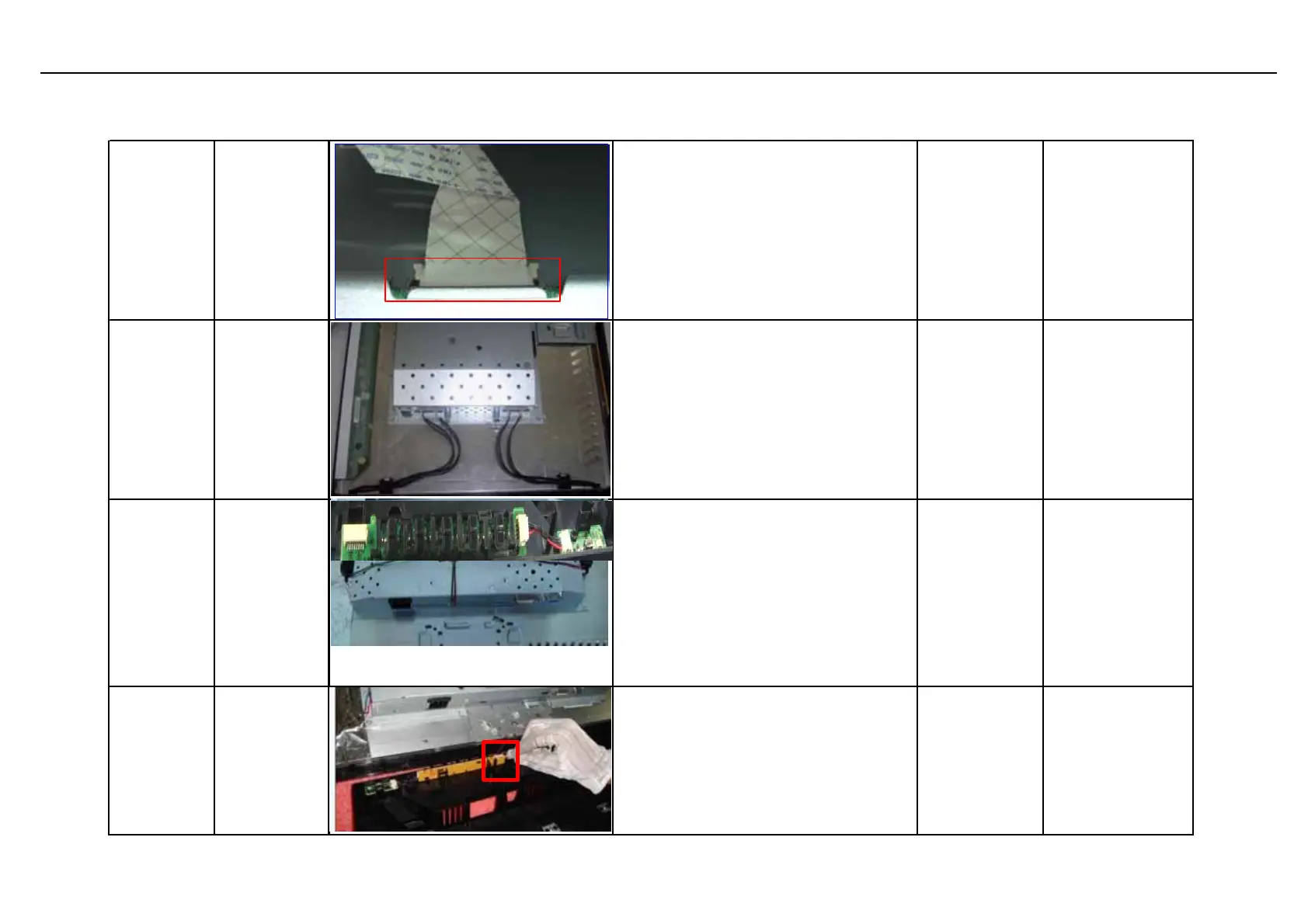

Assembly and Disassembly (continue)
S12
Insert FFC
cable
1. Insert FFC cable into desiganted
connector and use jig to insert it;;
2. Tear off foil to stick the cable for fix.
S13
Insert lamp
wire
Insert 4pcs lamp wire into the relevant
position and make sure the red one is on
the left and the blue is on the right as
attached picture.
S14
Connect
keypad with
power control
Connect keypad with power control as the
1.793121500010
R
2.793121500000
R
3.430300400560
R
4.714000008501
R
1.PCBA,FUNCTION
KEYPAD/B,LE23T8
ROHS
2.PCBA,POWER
KEYPAD/B,LE23T8
ROHS
3.HRN ASSY 4P
33mm UL1571#28
4.ASSY POWER
BUTTON LE23T8
S15
Assemble
keypad board
Assemble keypad board as the picture 793121500000R
PCBA,POWER
KEYPAD/B,LE23T8
ROHS
