Acer PD726W Service Guide

31 Chapter 3
1. Assemble Bottom Cover
Mechanical Reassembly Procedure
No Procedure Photo

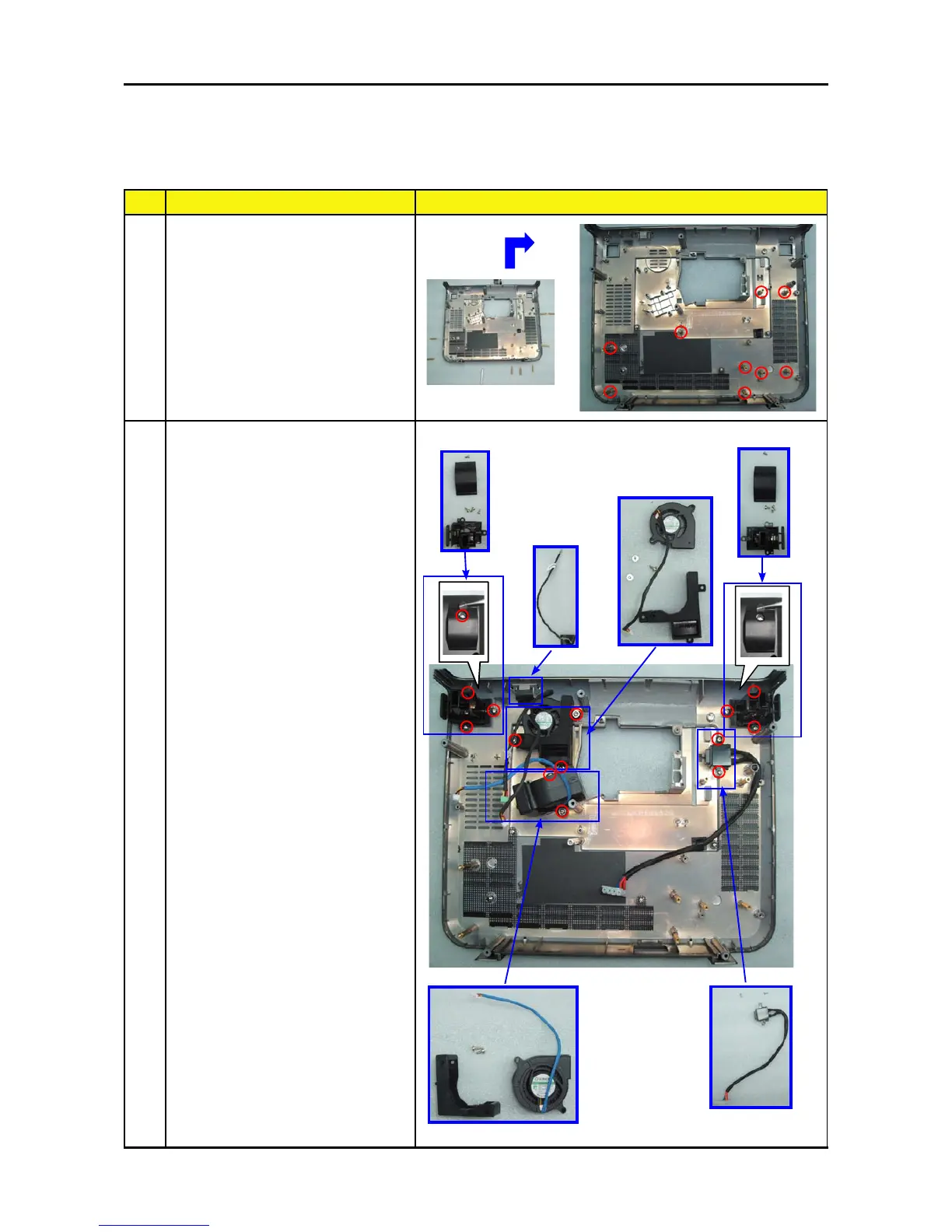

1 Screw 9 hex spacers to the
Bottom Cover.
2 (1) Screw 4 screws to
assemble the Elevator (Left).
(2) Screw 4 screws to
assemble the Elevator (Right).
(3) Assemble the Front IR
Receiver with the Mylar
directly.
(4) Screw 3 screws to
assemble the Fan 1.
(5) Screw 2 screws to
assemble the Fan 2.
(6) Screw 2 screws to
assemble the Interlock Switch.
Elevator (Left)
Elevator (Right)
Front IR Receiver
Fan 1
Fan 2
Interlock Switch
