Acer PD726W Service Guide

Chapter 3 32

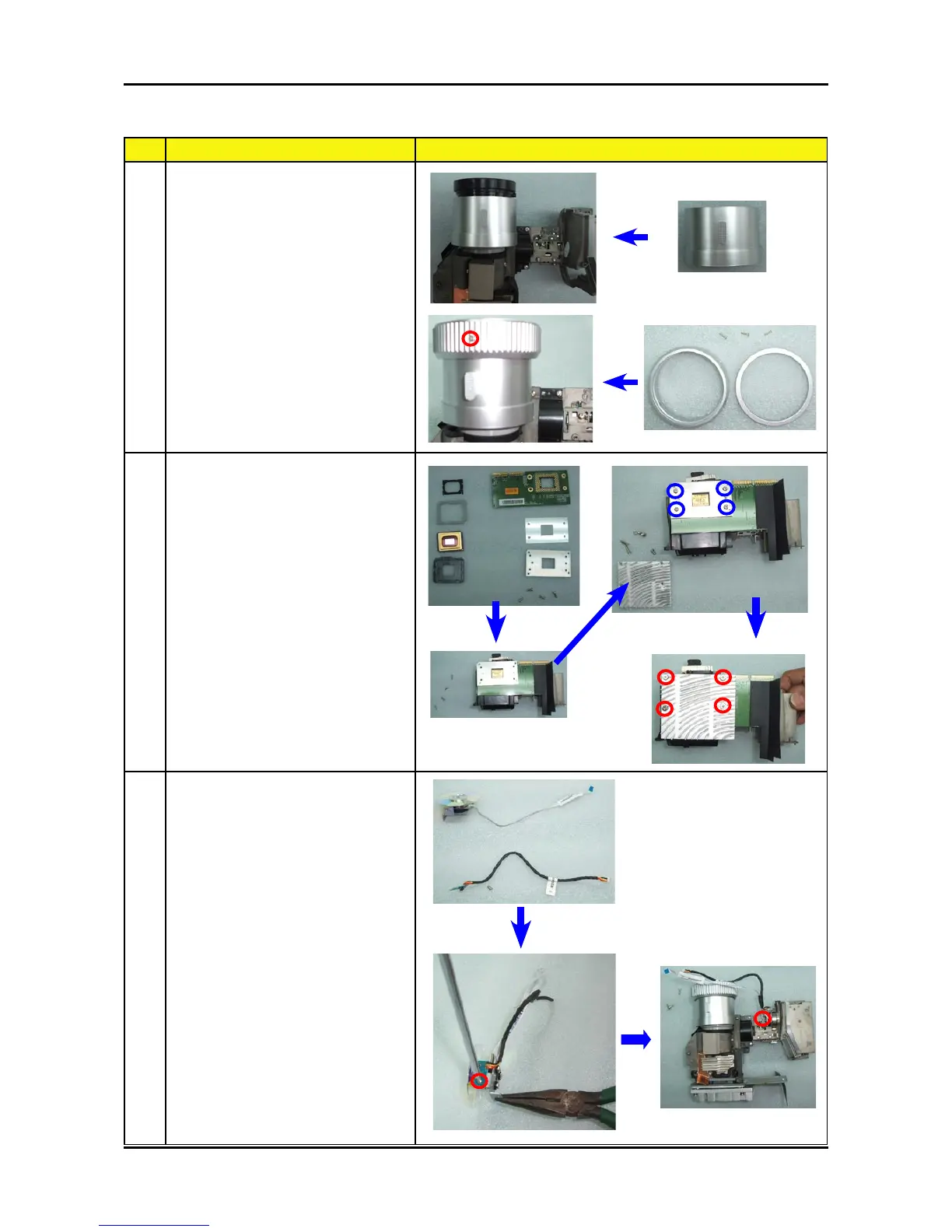

No Procedure Photo
1 (1) Assemble the Zoom Ring
directly.
(2) Screw 3 screws to
assemble the Focus Ring.
2 (1) Assemble all the
components and screw 4
screws to assemble the DMD
Board.
(2) Screw 4 screws to
assemble the Heatsink.
3 (1) Screw 1 screw to
assemble the Photosensor
Board with the Color Wheel.
(2) Screw 1 screw to
assemble the Color Wheel.
2. Assemble Engine Module
