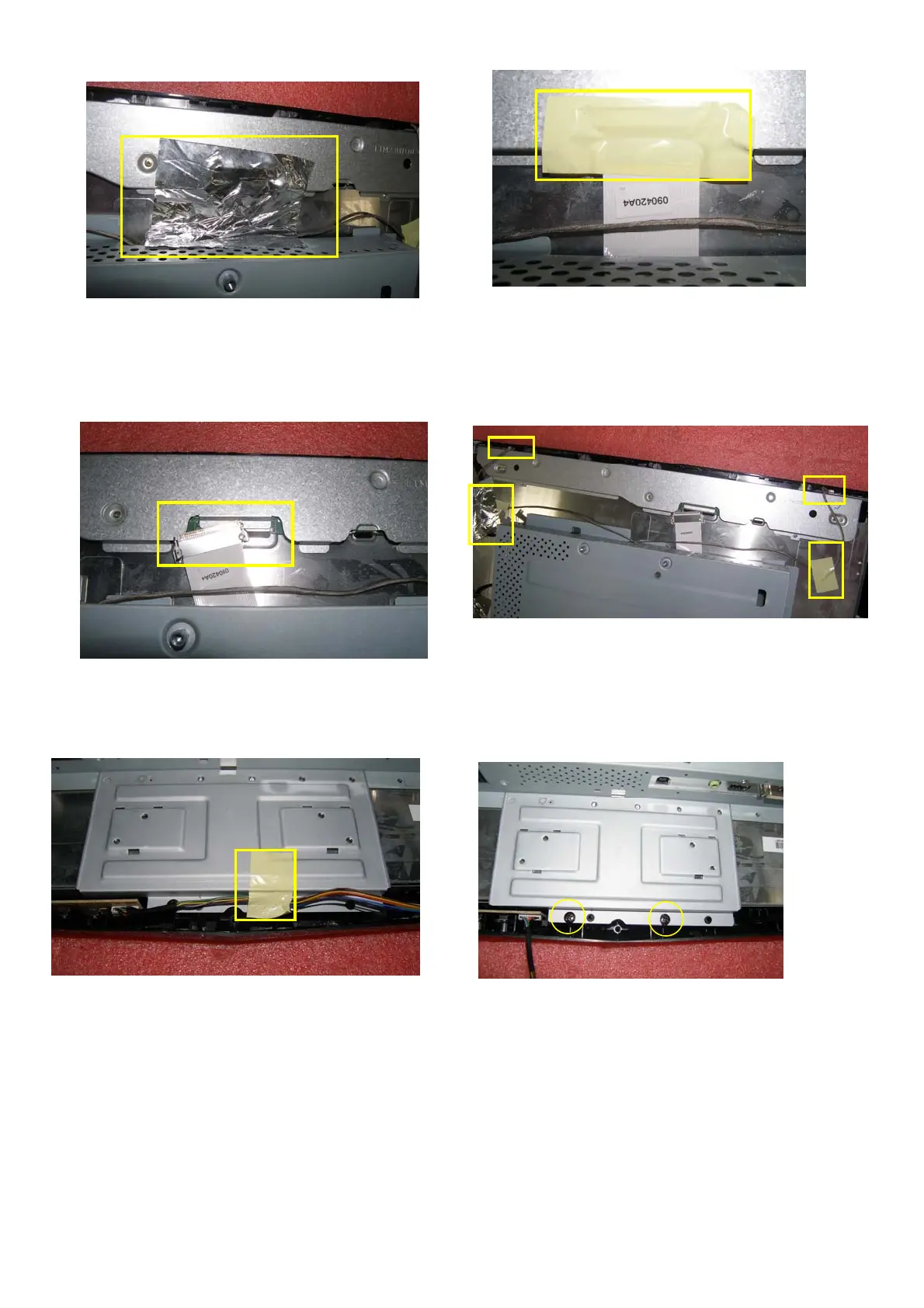

7. Take off the AL-Foil for LVDS cable and shielding. 8. Take off the yellow type for LVDS connector .
9.Take off the LVDS cable from panel.
10. Remove 1pcs of Al-foil and 2pcs of yellow type for
camera cable L&R and take off the camera cable.
11. Remove 1pcs yellow type for Button/B cable.
12.Remove 2pcs screws for shielding and take off the
shielding from panel.
